Clutch Assembly: Installation

Mount disc and cover onto flywheel with clutch alignment mandrel. If reusing clutch cover, align reference marks on clutch cover and flywheel. Tighten topmost bolts from 3 near knock pins first. Tighten bolts evenly and gradually, making several passes, until final torque is reached. See TORQUE SPECIFICATIONS . See Fig 1.
Apply molybdenum disulfide lithium-based grease to release fork and hub contact points, release fork and push rod contact point, release fork pivot point and clutch disc spline.
Install release bearing assembly to fork, and install together into transmission. Install boot. Reverse removal procedure to complete installation.

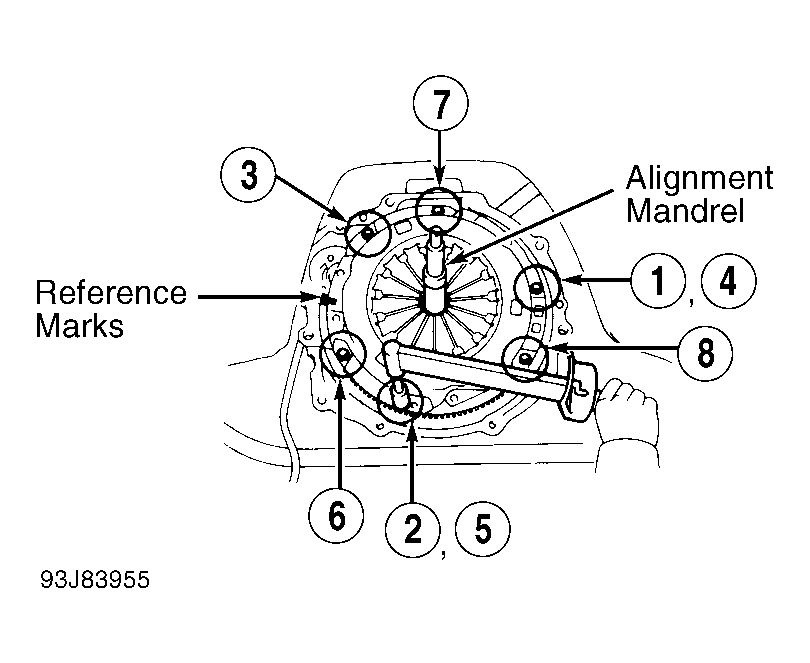

Fig 1: Tightening Clutch Pressure Plate

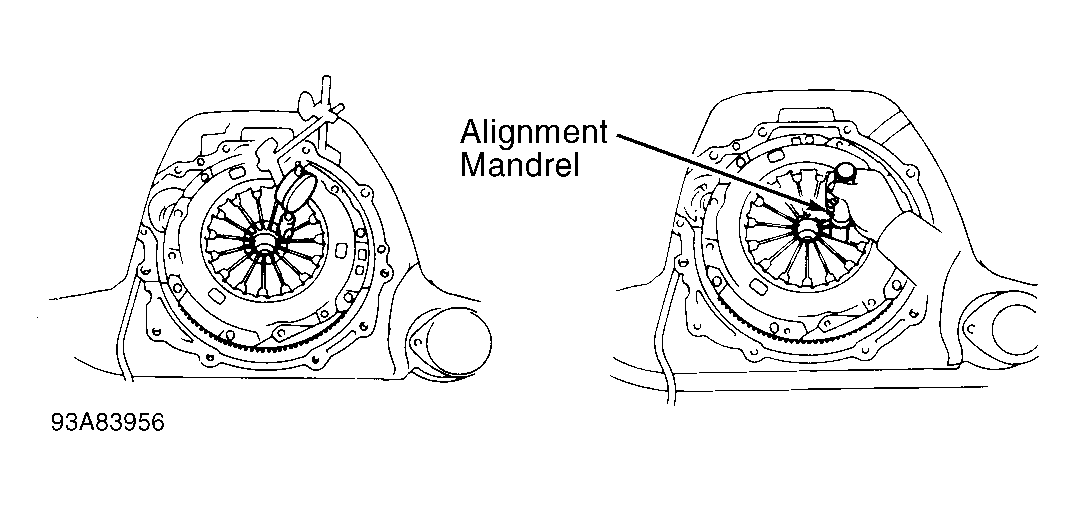

Fig 2: Aligning Diaphragm Spring Tips
