Rear Suspension

Inspect tires for wear and proper inflation. Ensure lengths of No. 1 and 2 lower suspension arms are equal by rotating adjuster cams (if necessary). See Fig 1. Measure toe-in.
Measure camber of each rear wheel. See WHEEL ALIGNMENT SPECIFICATIONS . If camber and/or toe-in are not within specification, loosen adjuster cam bolts. Adjust by rotating adjuster cams. See Fig 2. Tighten adjuster cam bolts to specification after adjustment. See TORQUE SPECIFICATIONS .

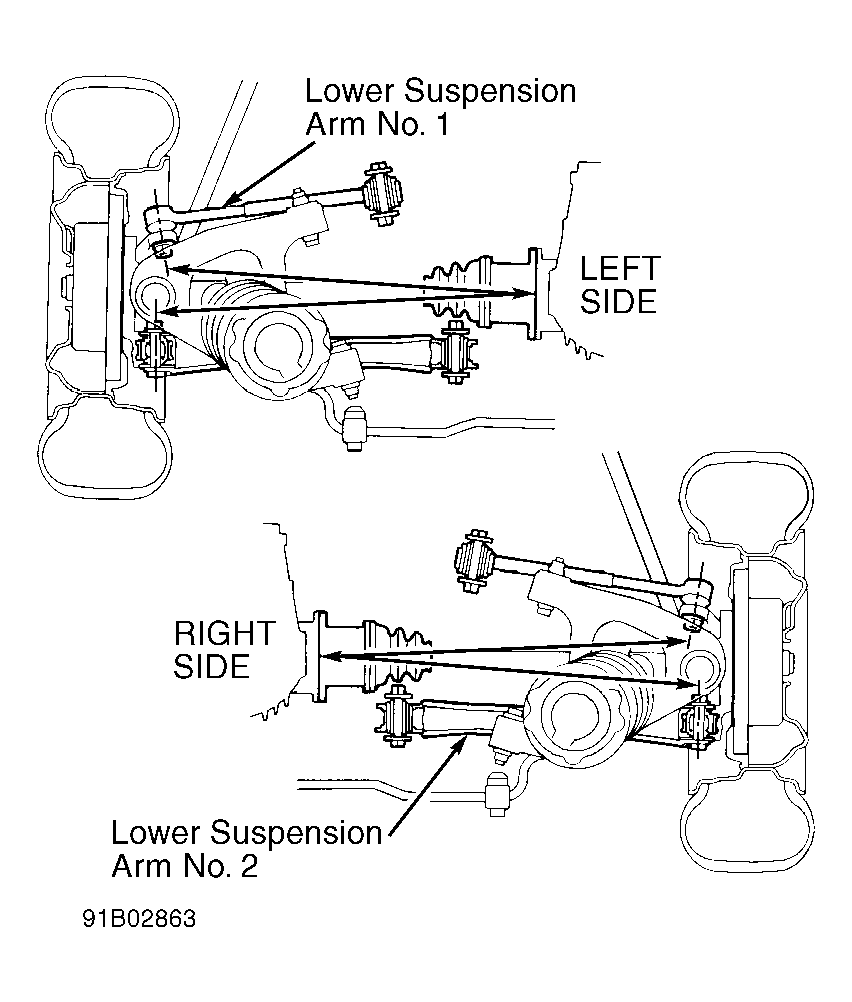

Fig 1: Measuring Rear Suspension Arm Length (Typical)

Fig 2: Rear Camber & Toe-In Adjuster Cams
