Engine Oil Level Warning

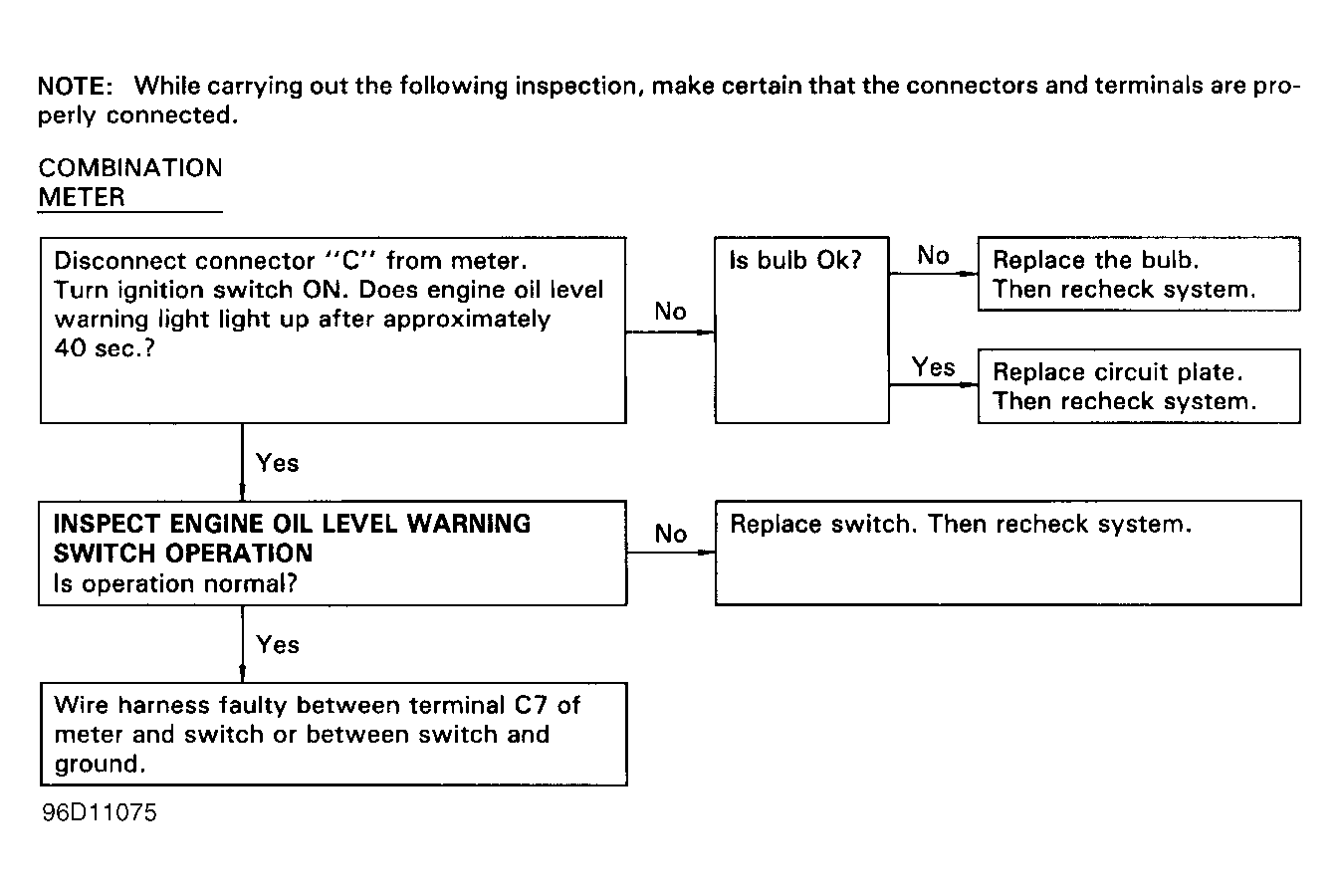

Fig 1: Warning Does Not Illuminate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

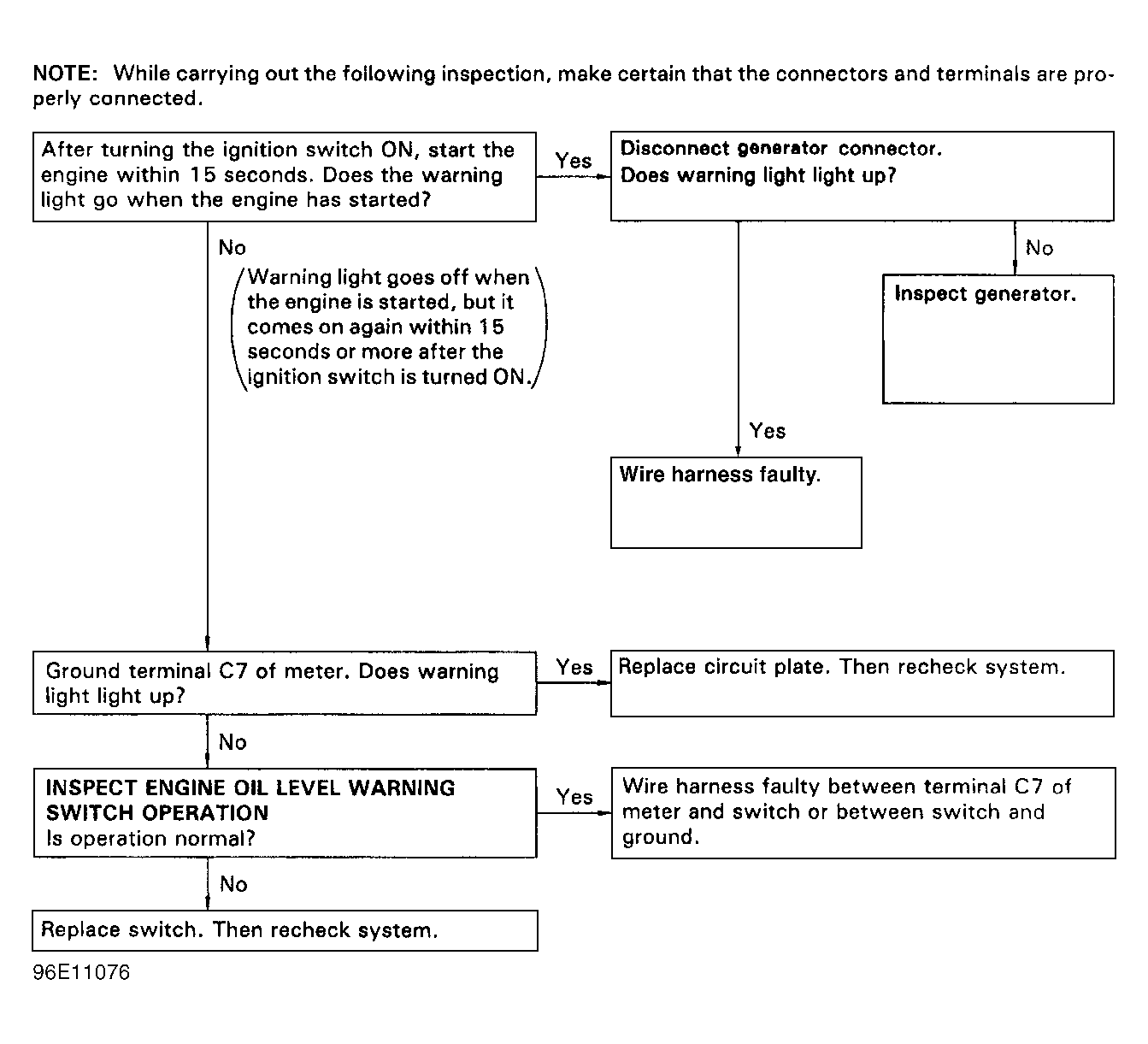

Fig 1: Warning Always Illuminated
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
