Dash Fuse Panel Fuse Identification (SC400)

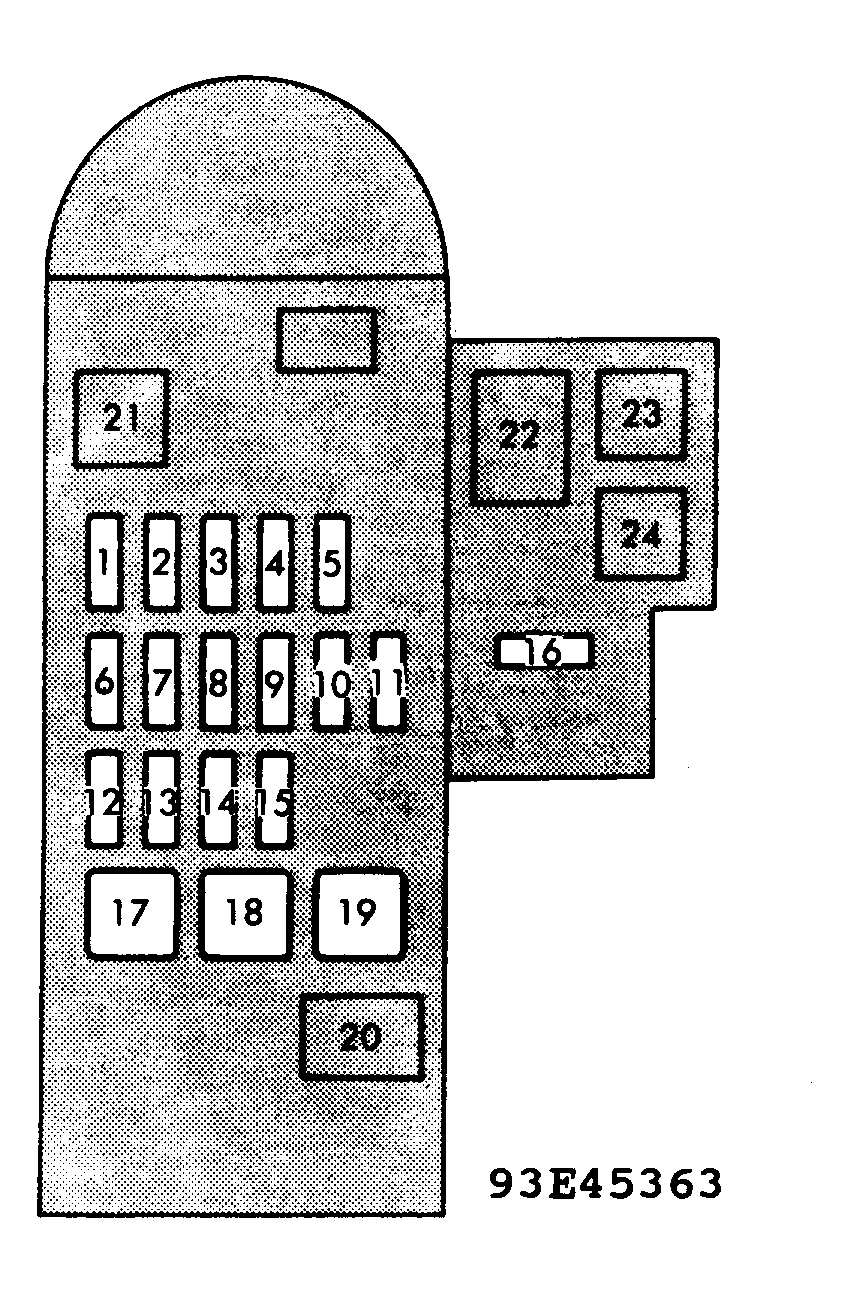

Fig 1: Dash Fuse Panel Identification (SC400)

1 - 7.5 Amp Charging System
2 - 10 Amp Air Conditioning System, Rear Window Defogger
3 - 20 Amp Windshield Wipers & Washers
4 - 7.5 Amp Starting System, Cruise Control, Electronic Fuel Injection System, Instrument Panel Lights
5 - 7.5 Amp Discharge Warning Light, Electronic Fuel Injection, SRS Air Bag System
6 - 7.5 Amp Instrument Panel Lights, Glove Box Light
7 - 10 Amp Outside Rear View Mirror Defogger
8 - 15 Amp (1992)
8 - 20 Amp (1993) Turn Signal & Cornering Lights
9 - 15 Amp Stoplights, Cruise Control Cancel Device
10 - 15 Amp Cigarette Lighter, Theft Deterrent, Shift Lock System, SRS Air Bag, Instrument Panel Lights
11 - 7.5 Amp Radio, Cassette Tape Player, Compact Disc Player, Power Antenna, Power Rear View Mirrors
12 - 15 Amp Tail, Parking, Side Marker & License Plate Lights
13 - 15 Amp Cruise Control System, Power Steering Control System, Shift Lock System, Anti-Lock Brake System, SRS Air Bag System, Preset Steering, Traction Control System, Electronically Controlled Hydraulic-Driven, Cooling System, Passenger's Seat Control System
14 - 10 Amp Gauges, Buzzers & Meters Warning Lights, Back-Up Lights, Headlights, Electronically Controlled Automatic Transmission, Automatic Transmission Overdrive System
15 - 15 Amp SRS Air Bag System, Power Rear View Mirrors
16 - 15 Amp Seat Heater
17 - 30 Amp Preset Steering, Electronic Moon Roof, Power Windows, Theft Deterrent System
18 - 40 Amp Starting System
19 - 30 Amp Theft Deterrent System, Seat Control System, Fuel Opener Control System, Power Door lock System
