Test 5 - Headlight Control Relay Circuit

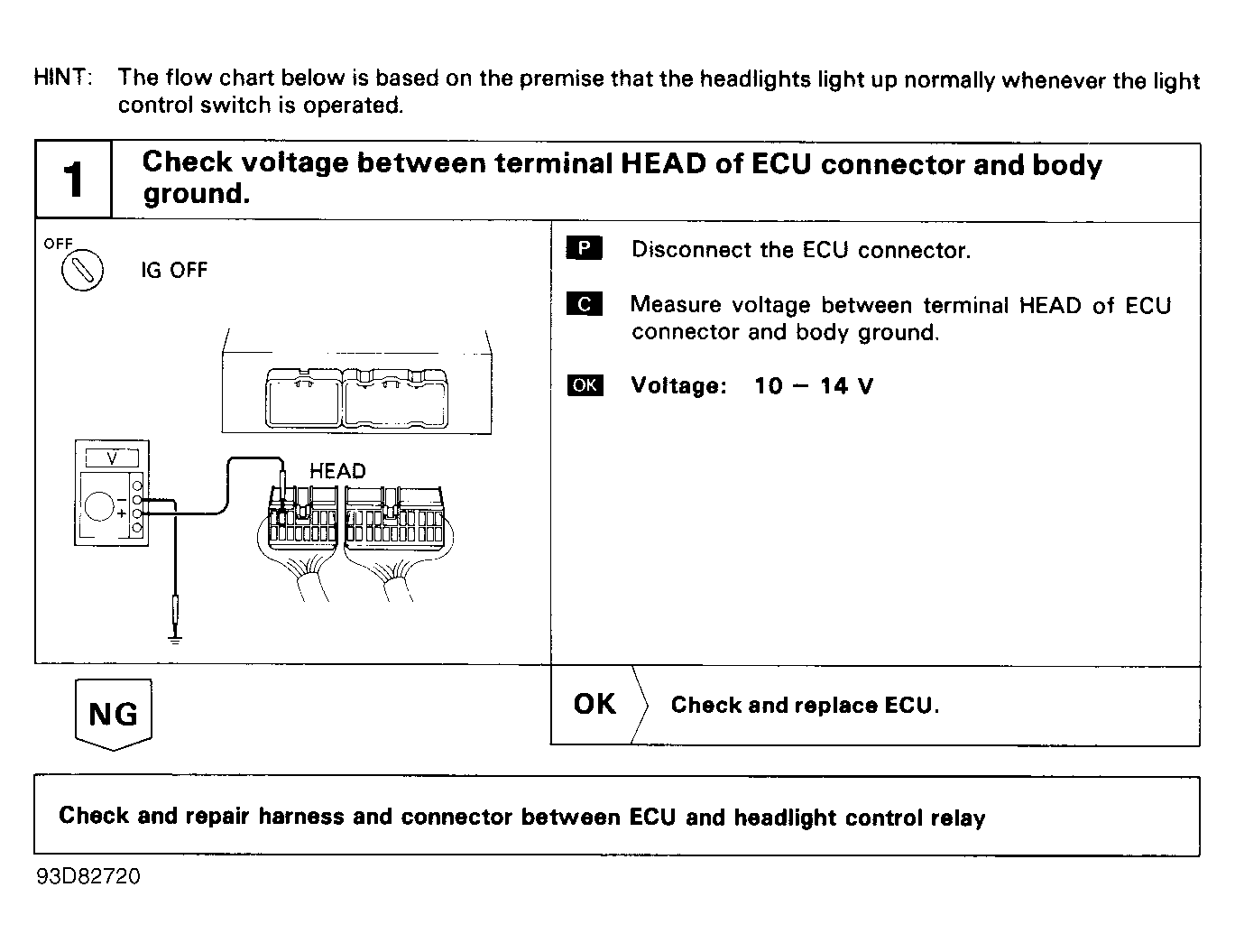

Fig 1: Test 5 - Headlight Control Relay Circuit

G93D82720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
