Battery Maintenance For In-Stock Vehicles (EL95-002)

Publication date: 1995-02-10
Reference number: EL95-002

BATTERY MAINTENANCE FOR IN-STOCK VEHICLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL95-002, Date of Issue: February 10, 1995

LEXUS:	All Models
GROUP:	Electrical
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

BATTERY MAINTENANCE FOR IN-STOCK VEHICLES

A battery in a stored vehicle is subject to conditions which can reduce its performance and life. These conditions include storage period, temperature, parasitic drain, and battery load. Because of these factors, battery inspection and maintenance are recommended in order to ensure proper operation and optimal battery life.

BULLETIN CONTENT

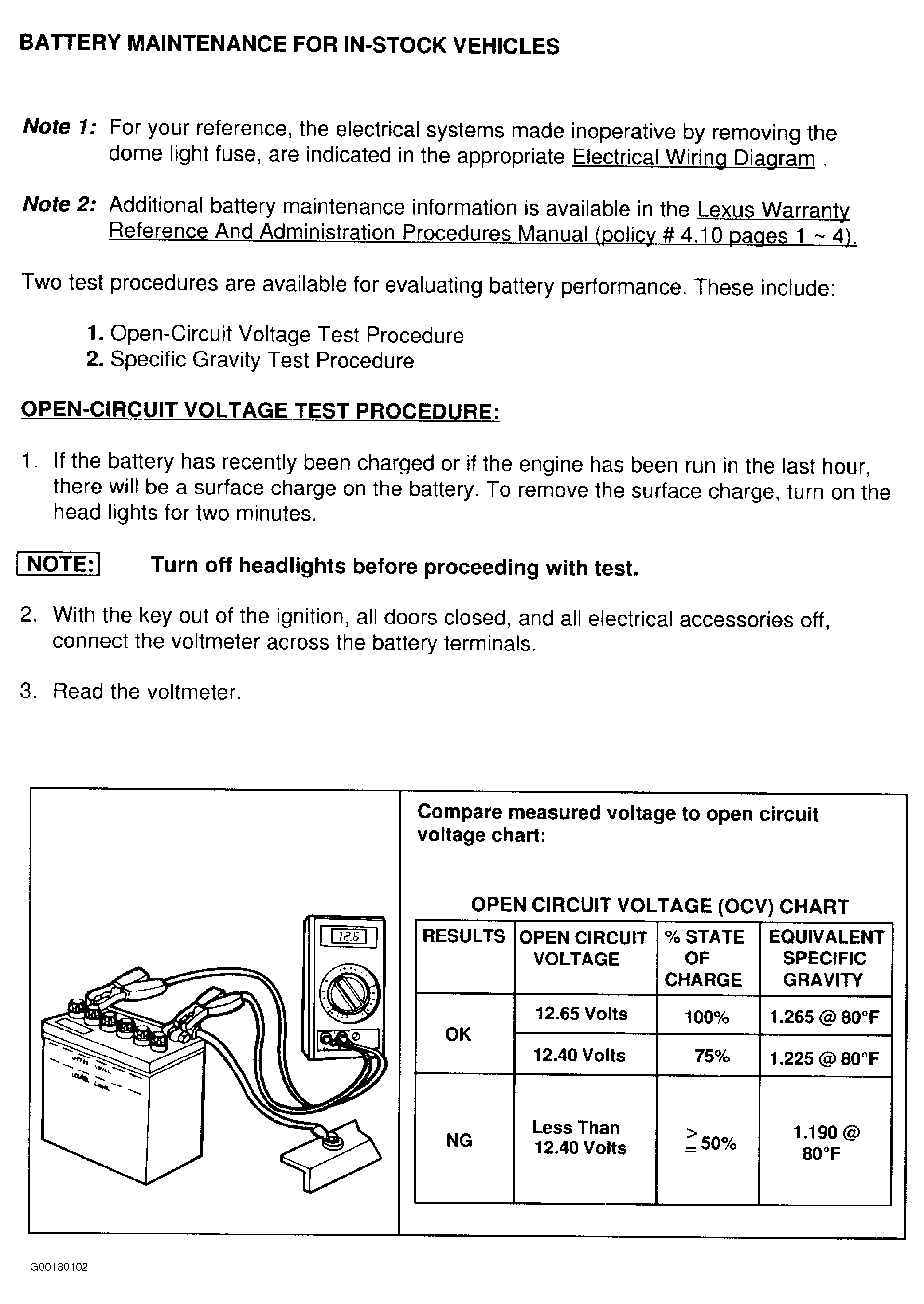

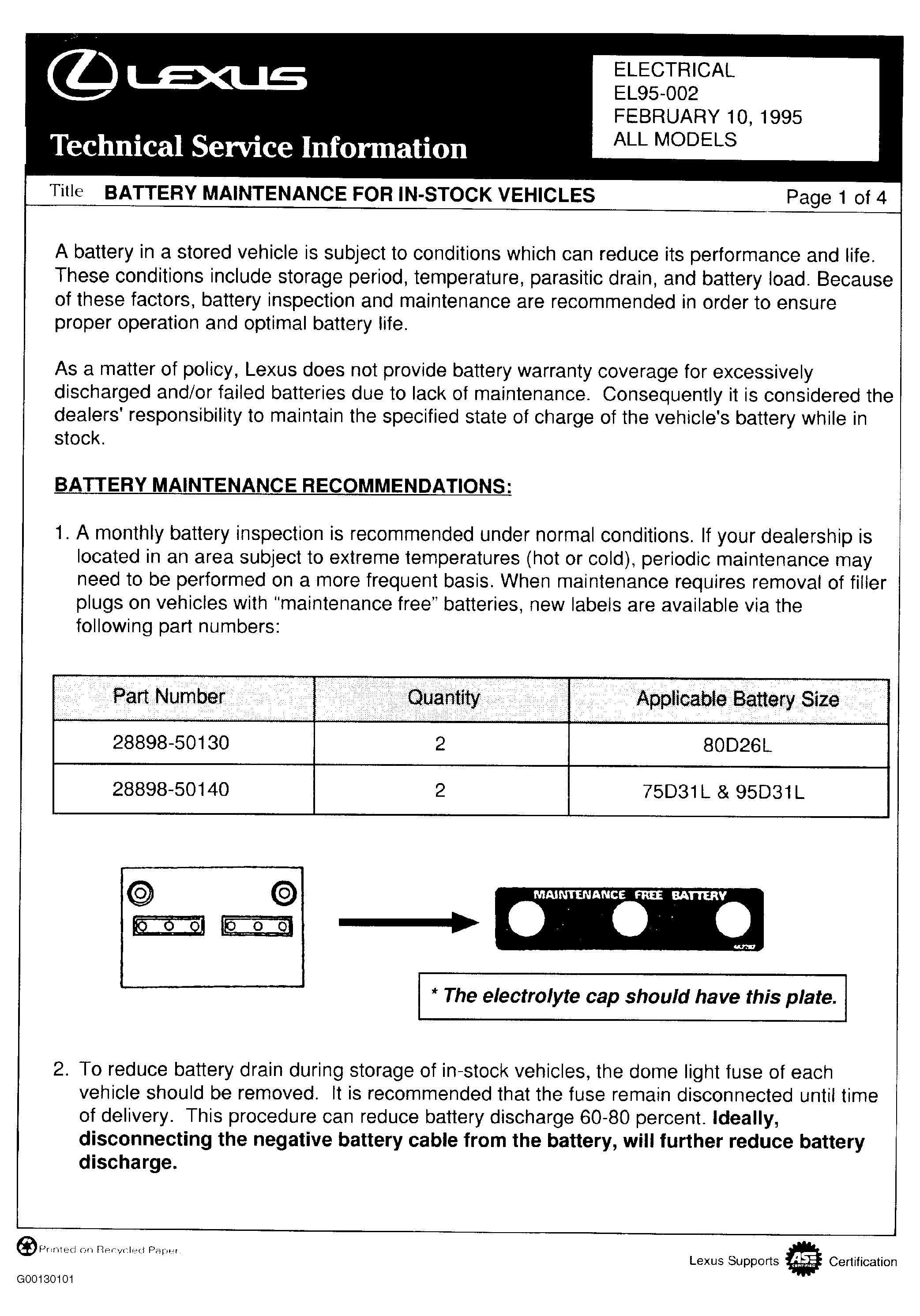

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

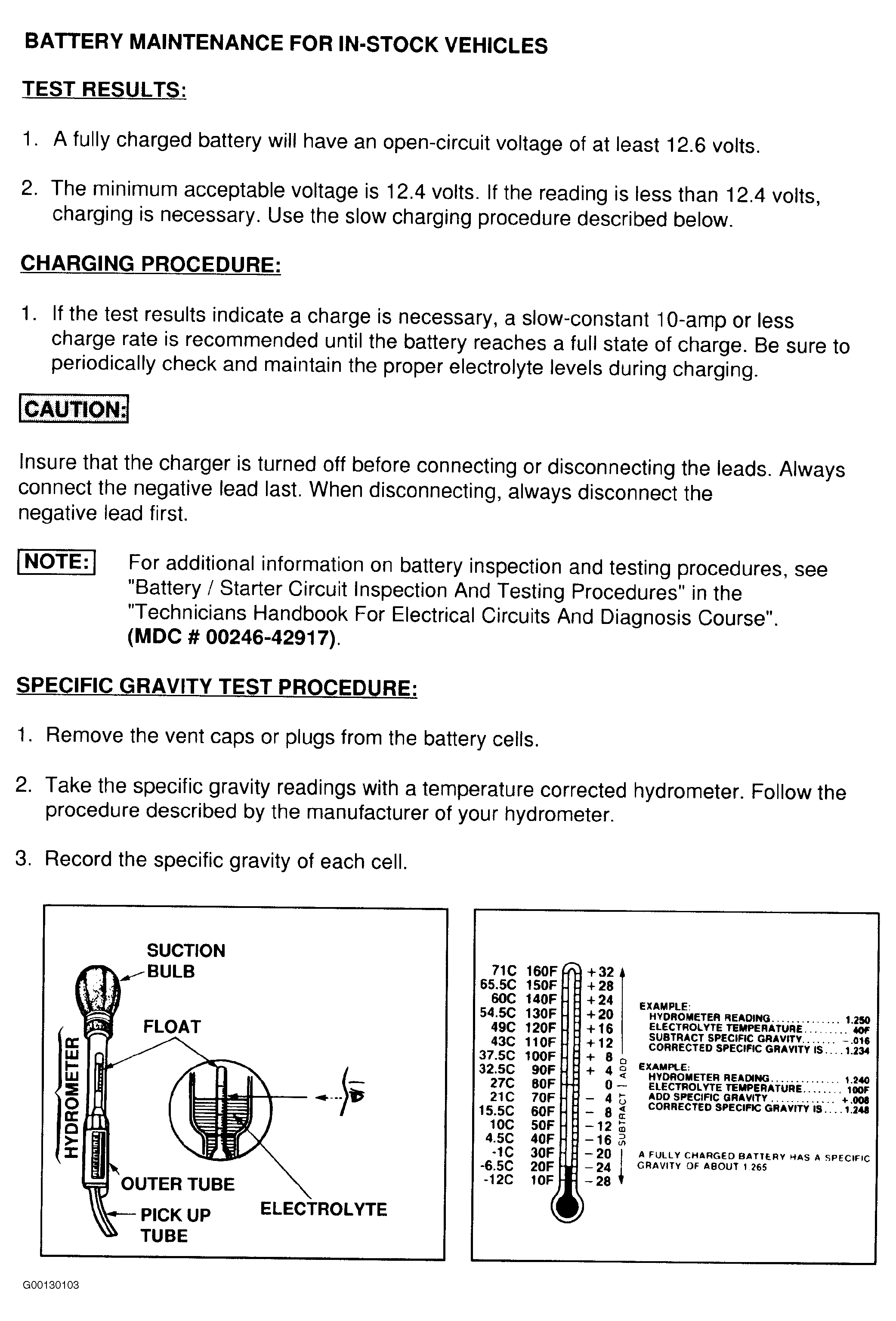

Fig 2: Page 2 of Bulletin

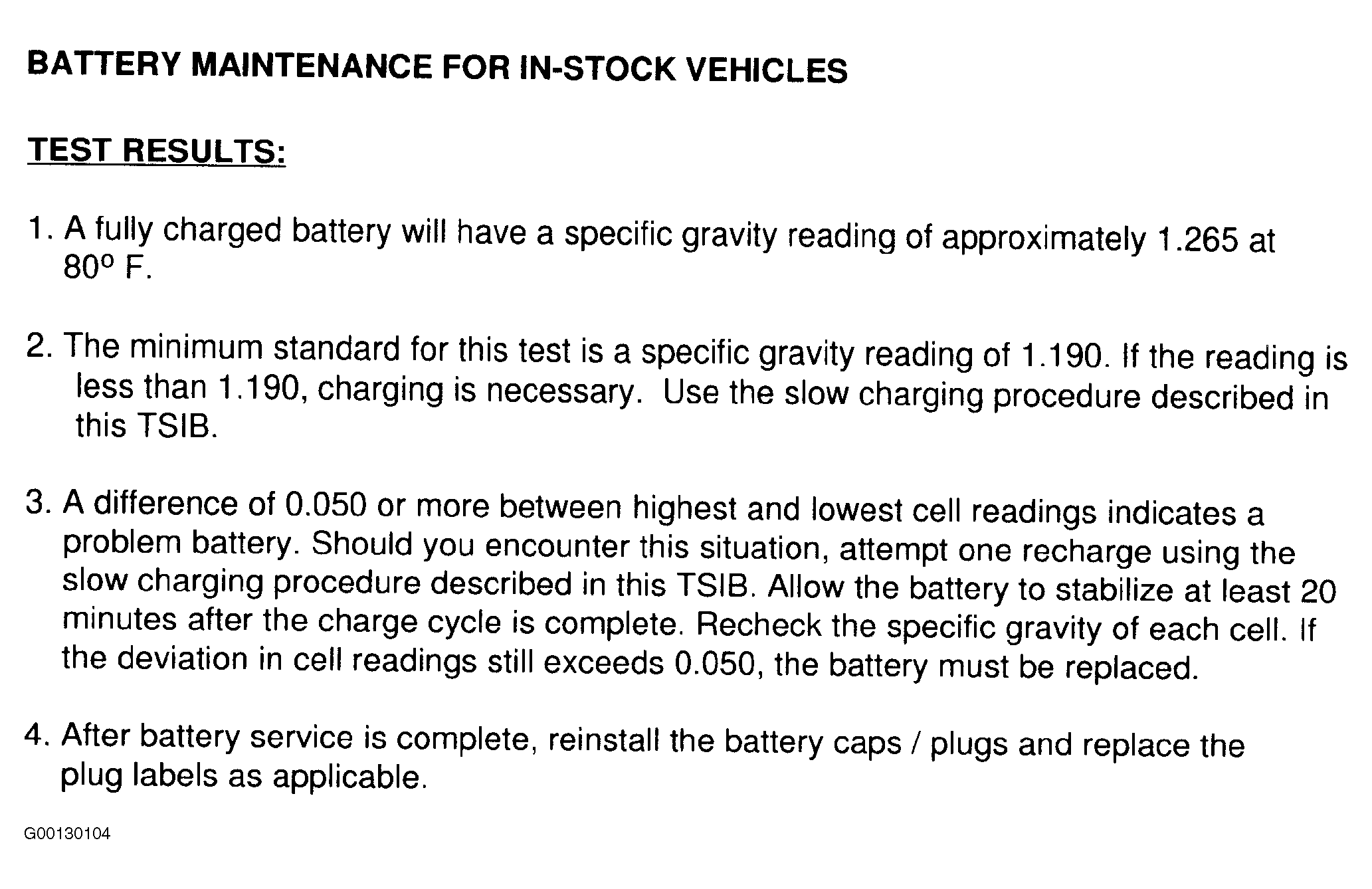

Fig 3: Page 3 of Bulletin

Fig 4: Page 4 of Bulletin
