Test 12 - Engine Hood Courtesy Switch Circuit

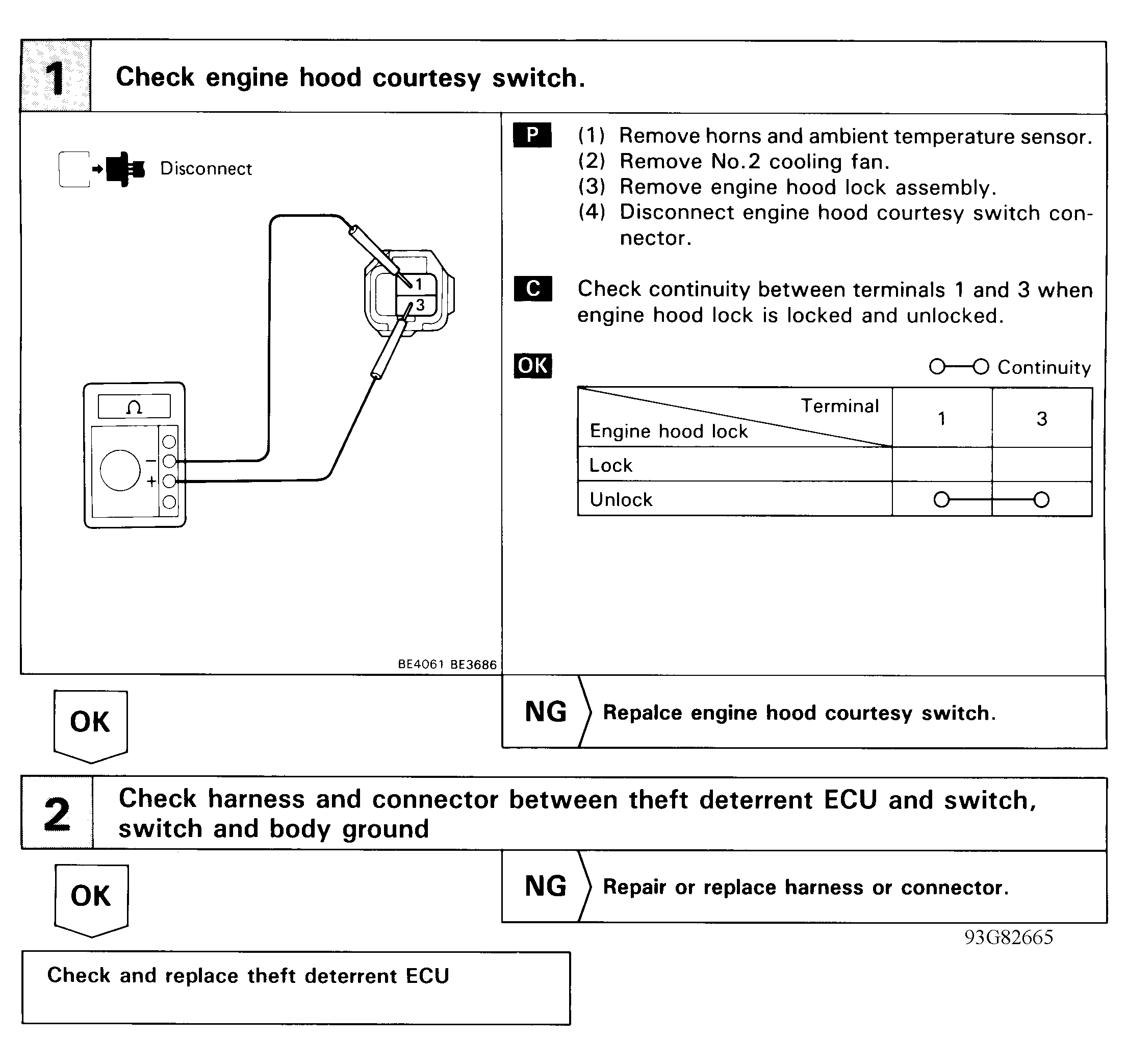

Fig 1: Test 12 - Engine Hood Courtesy Switch Circuit

G93G82665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
