Instrument Cluster Circuit Testing

NOTE: Remove instrument cluster. To identify connectors, See Fig 1. Check voltage, resistance and continuity at specified terminals of instrument cluster connector (harness side). See Fig 3. Unless specified otherwise, use a DVOM with a minimum input impedance of 10-megohms during testing.
Fig 1: Harness Connector & Gauge Terminal ID On Back Of Instrument Cluster (GS300)
G94E46965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Testing Instrument Cluster Circuits (GS300 - 1 Of 2)
G94G46967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

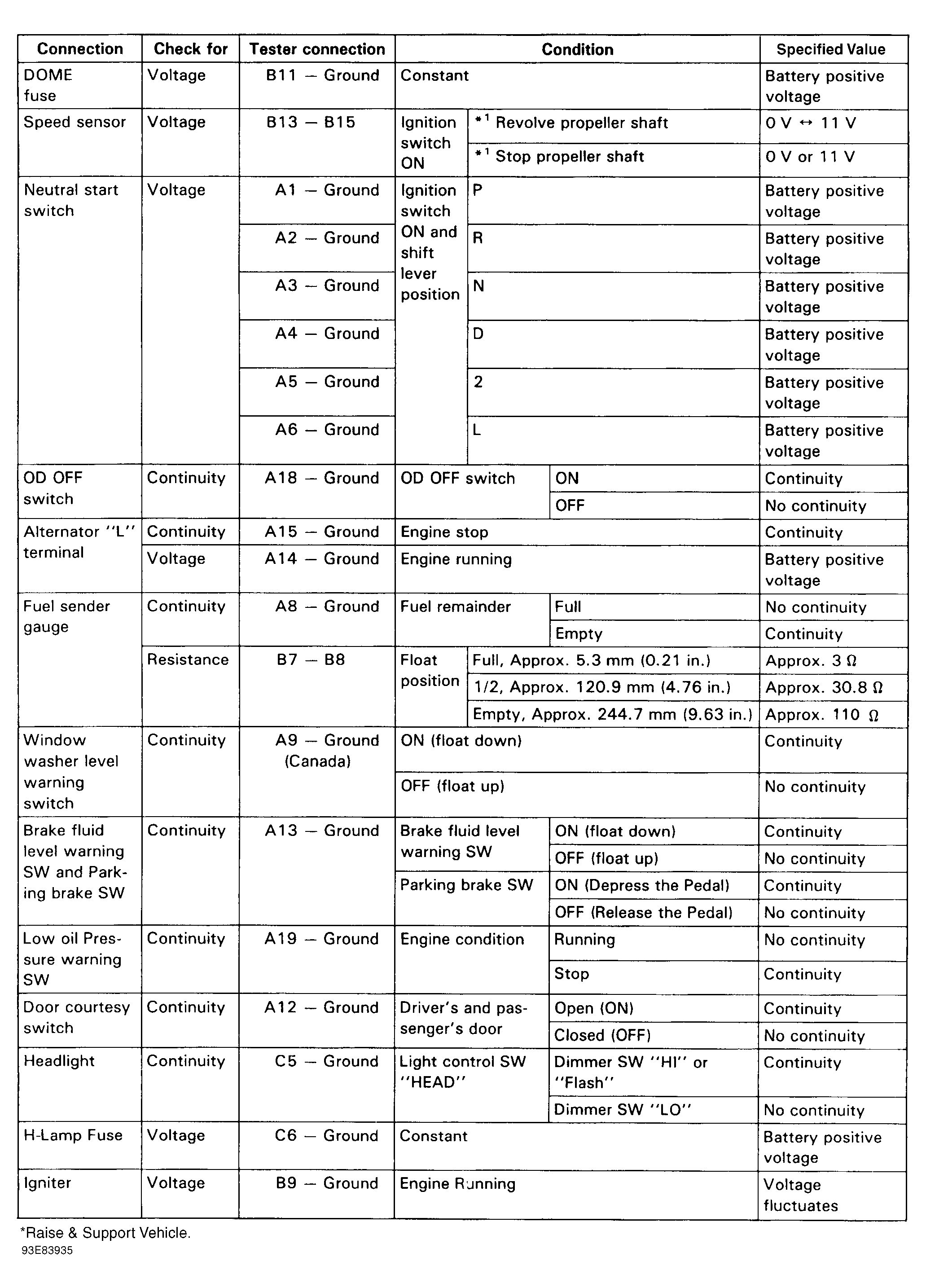

Fig 3: Testing Instrument Cluster Circuits (GS300 - 2 Of 2)
G93E83935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
