Motor Operation

Disconnect wiper angle motor 6-pin connector. Connect jumper wire from positive battery terminal to terminal No. 5. See Fig 2. Ground terminal No. 6. Motor should rotate clockwise. Reverse jumper leads. Motor should rotate counterclockwise. Replace motor if it does not operate as specified.

Fig 1: Terminal Of Wiper Angle Motor Connector ID (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

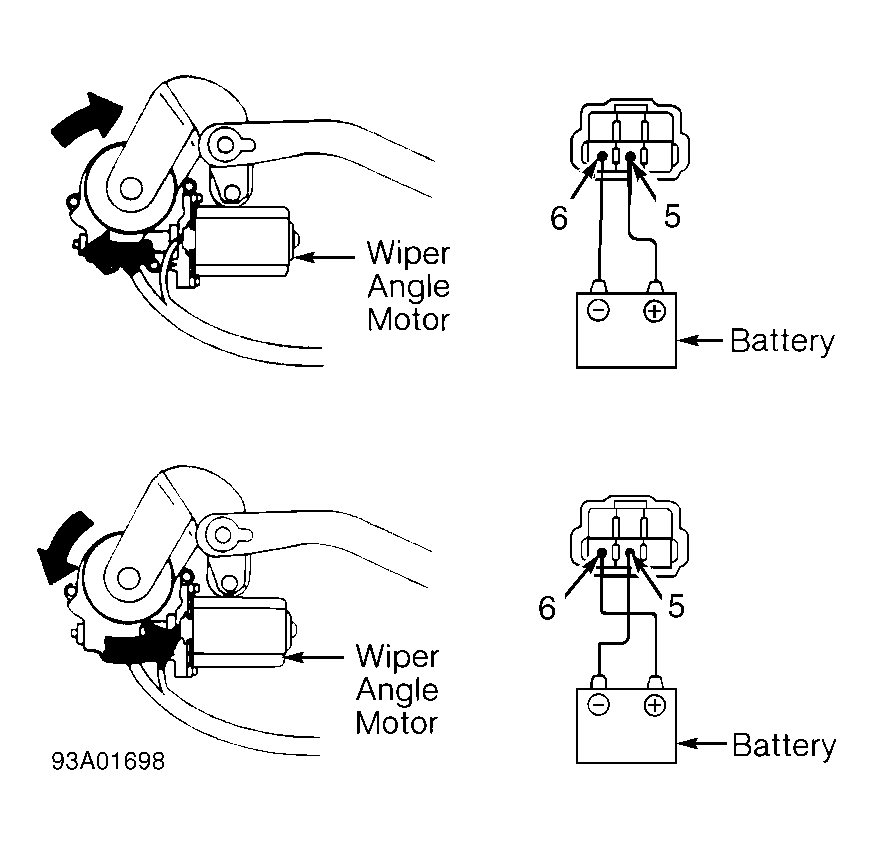

Fig 2: Testing Wiper Angle Motor Operation (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
