Code 22 - Engine Coolant Temperature Sensor Circuit

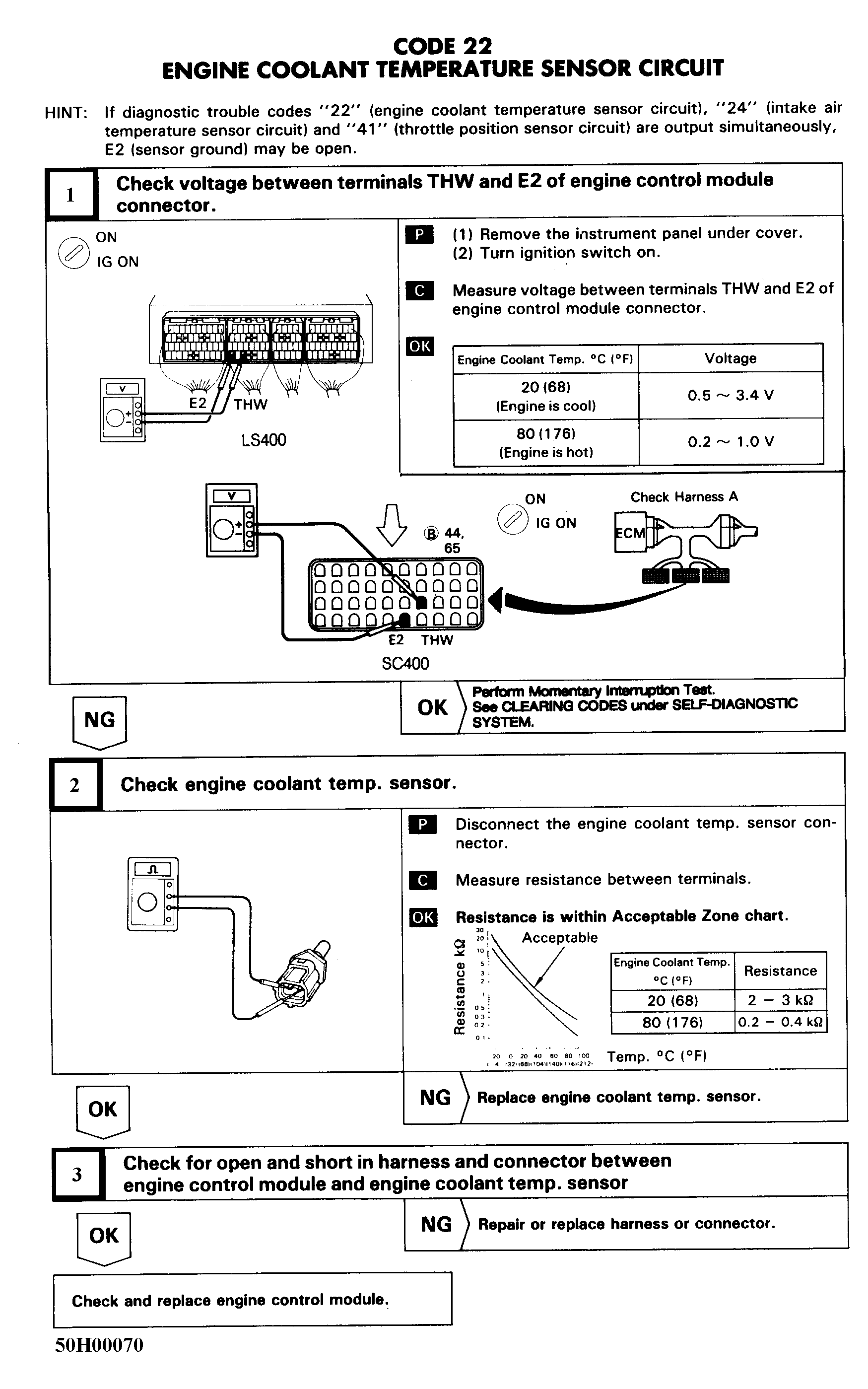

Fig 1: Code 22 - Diagnostic Flowchart

G50H00070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
