Code 13 - Rpm Signal Circuit (No. 2)

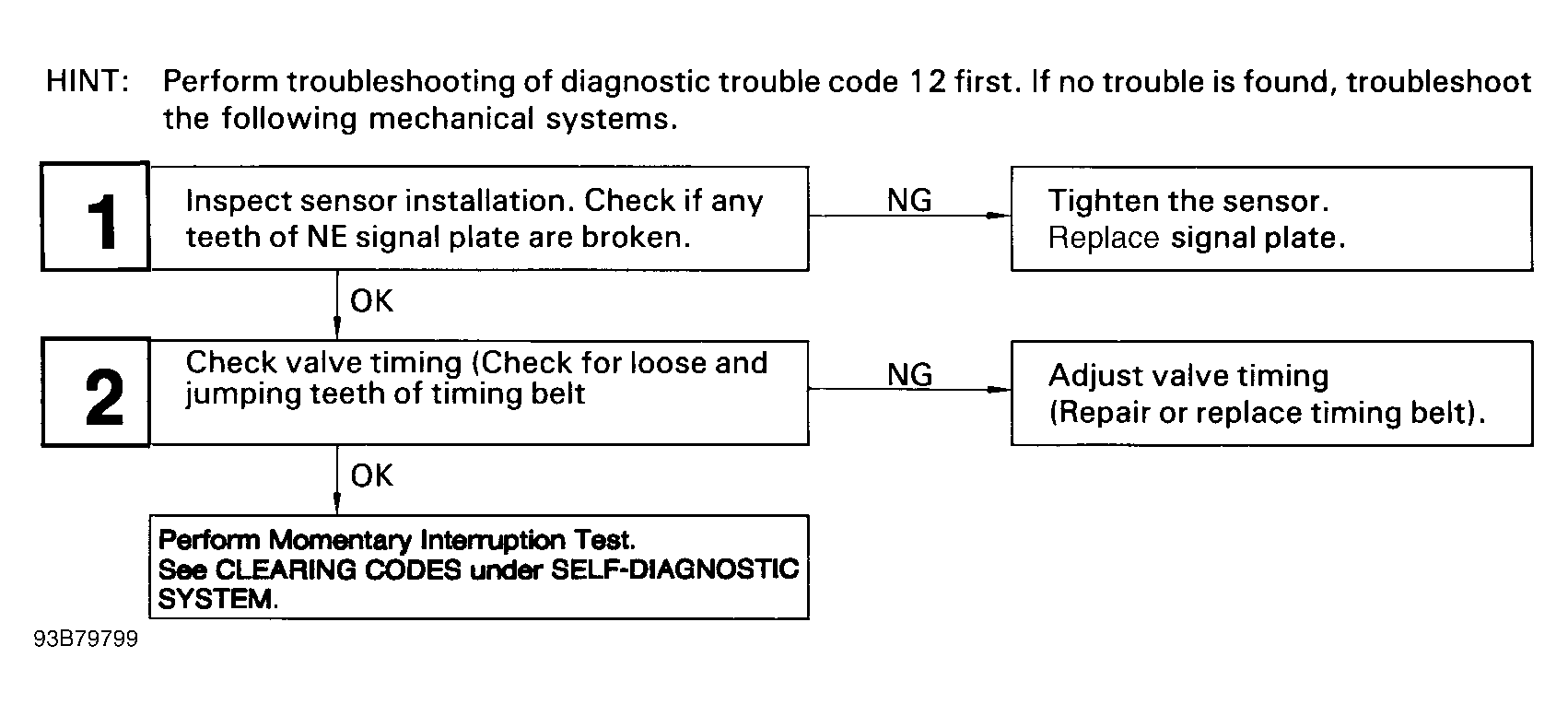

Fig 1: Code 13 - Diagnostic Flowchart

G93B79799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
