Code 22 - Coolant Temperature Sensor Signal Circuit

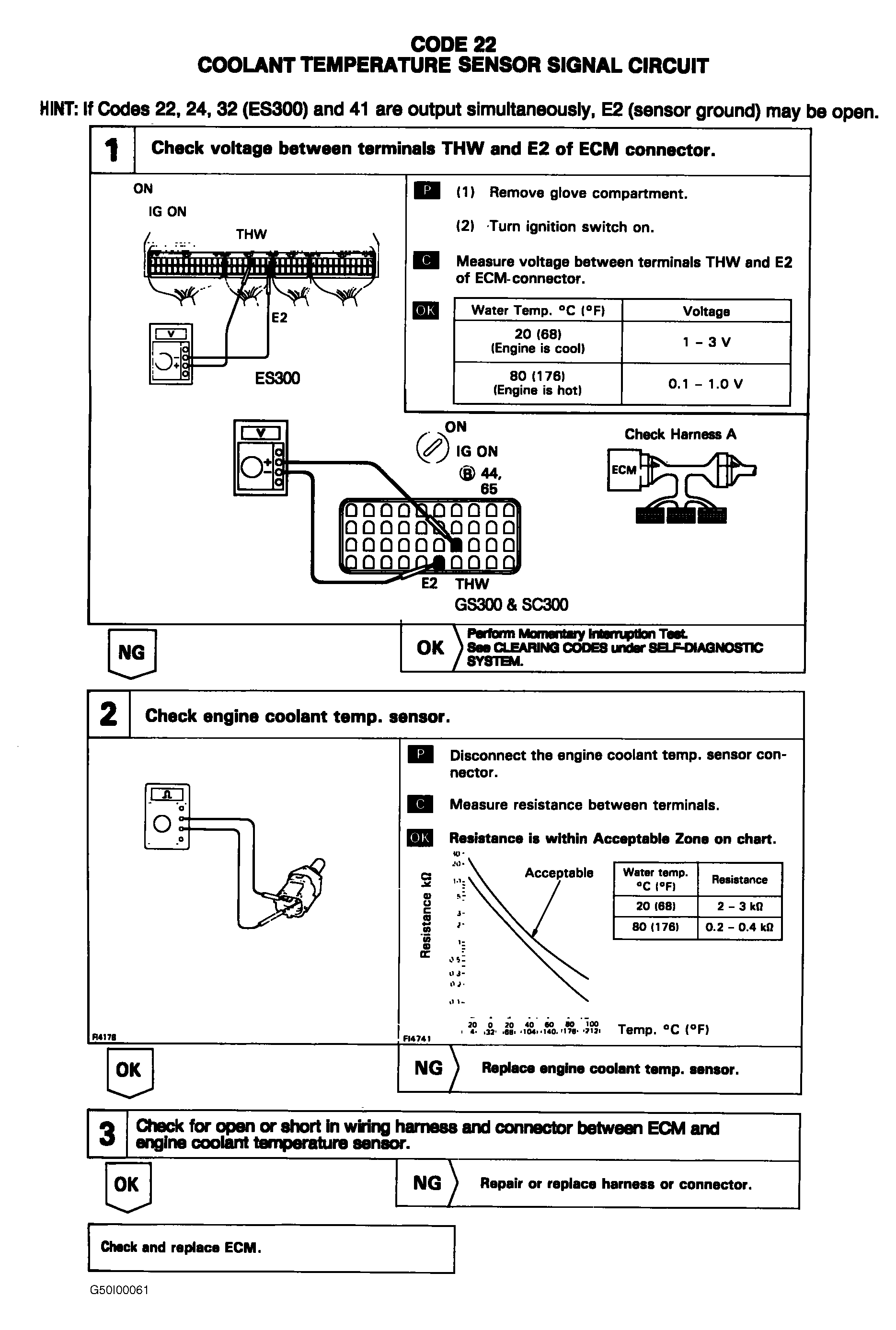

Fig 1: Code 22 - Diagnostic Flowchart

G50I00061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
