Code 78 - Fuel Pump Control Circuit (GS300 & SC300)

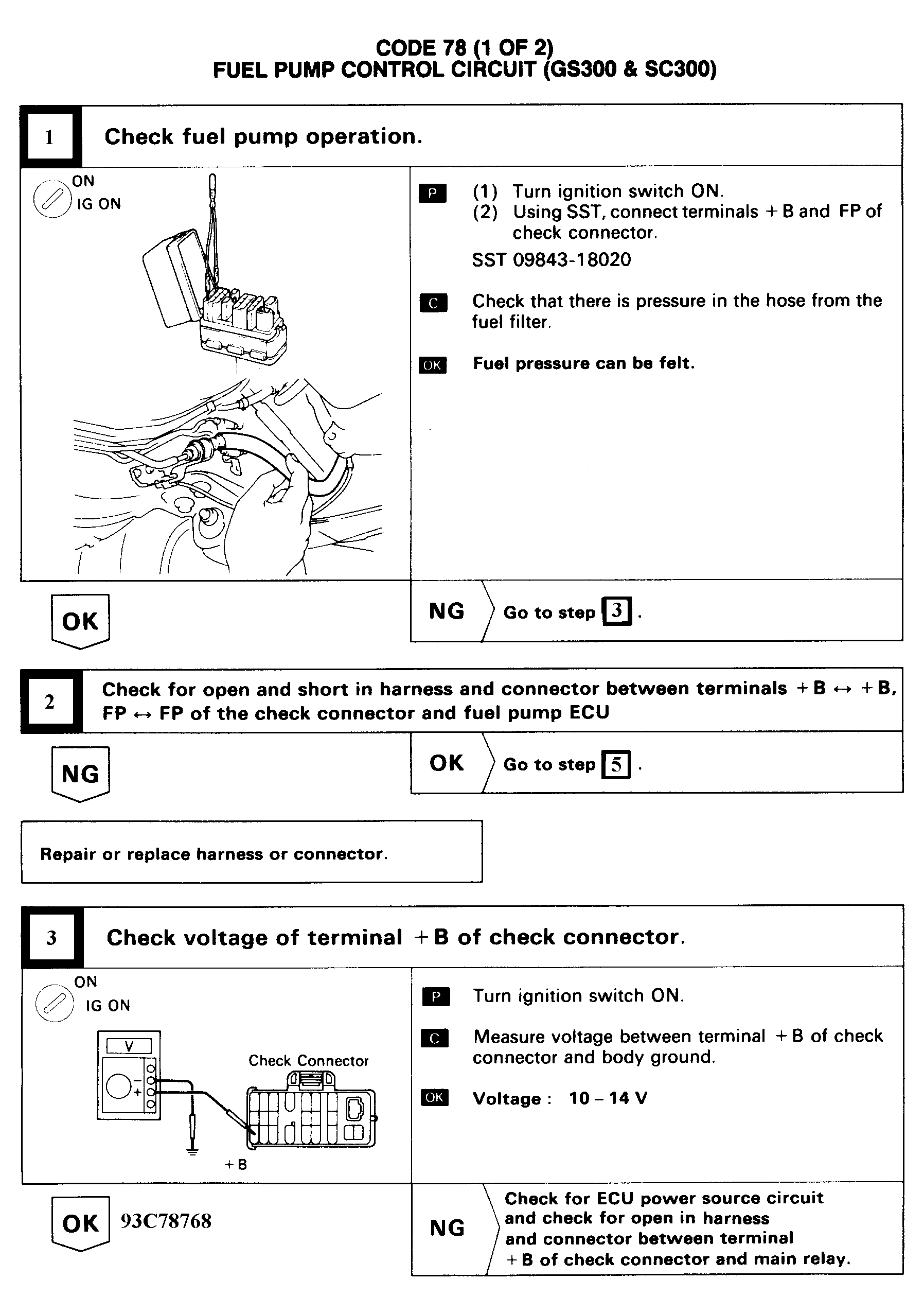

Fig 1: Code 78 - Diagnostic Flowchart (GS300 & SC300, 1 Of 2)
G93C78768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

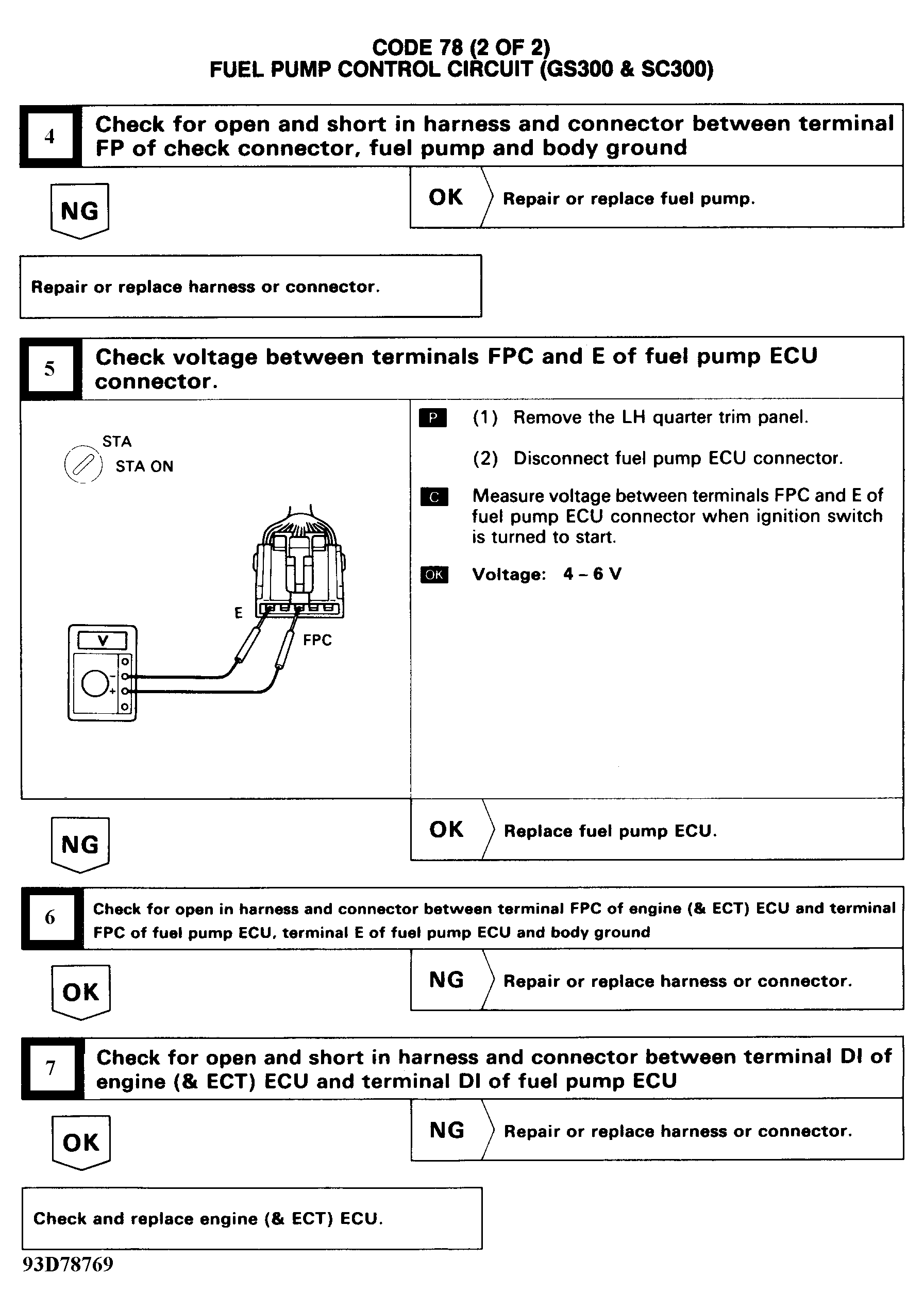

Fig 2: Code 78 - Diagnostic Flowchart (GS300 & SC300, 2 Of 2)
G93D78769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
