Code 41 - Throttle Position Sensor (TPS) Circuit (Es300)

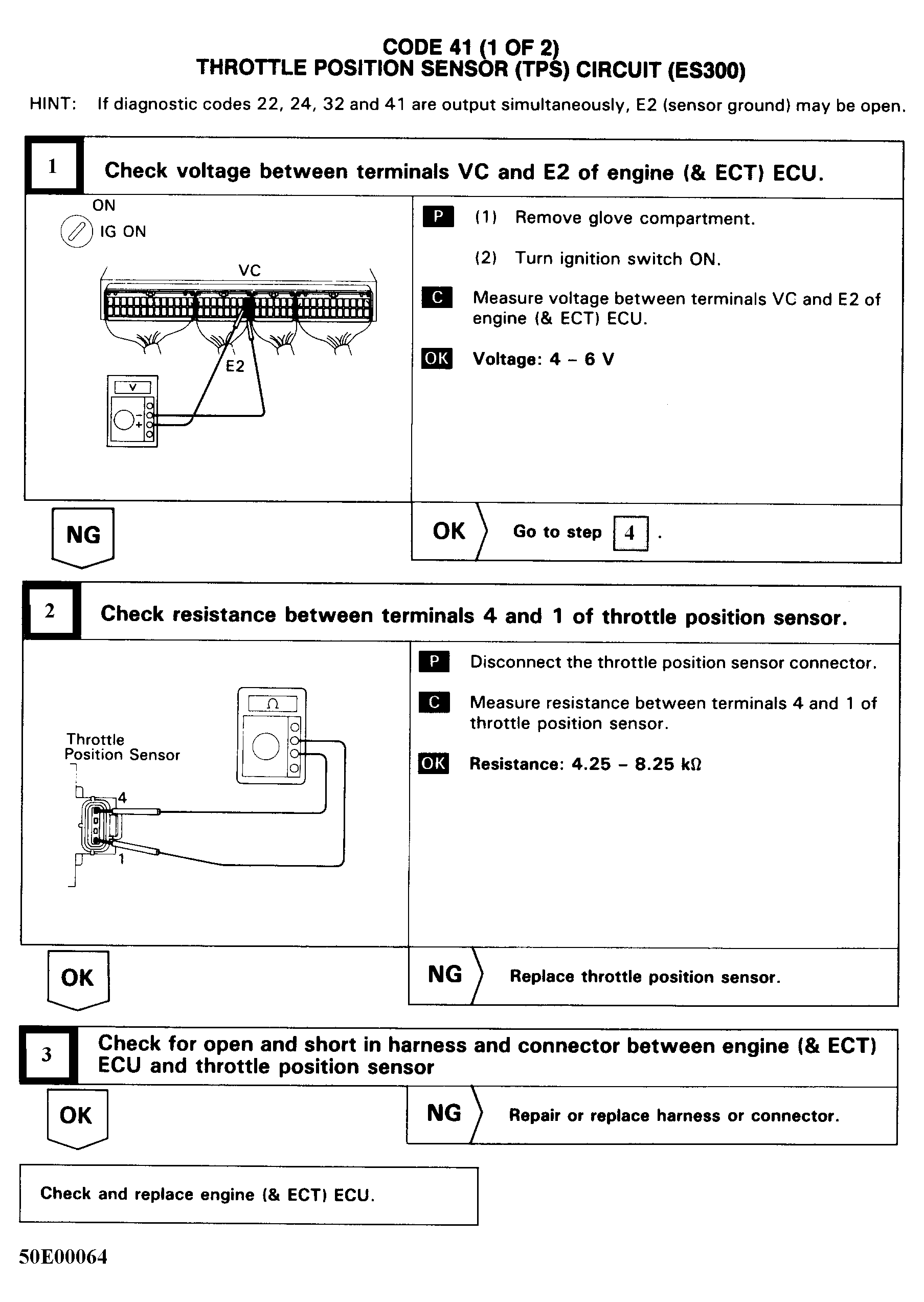

Fig 1: Code 41 - Diagnostic Flowchart (1 Of 2)
G50E00064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

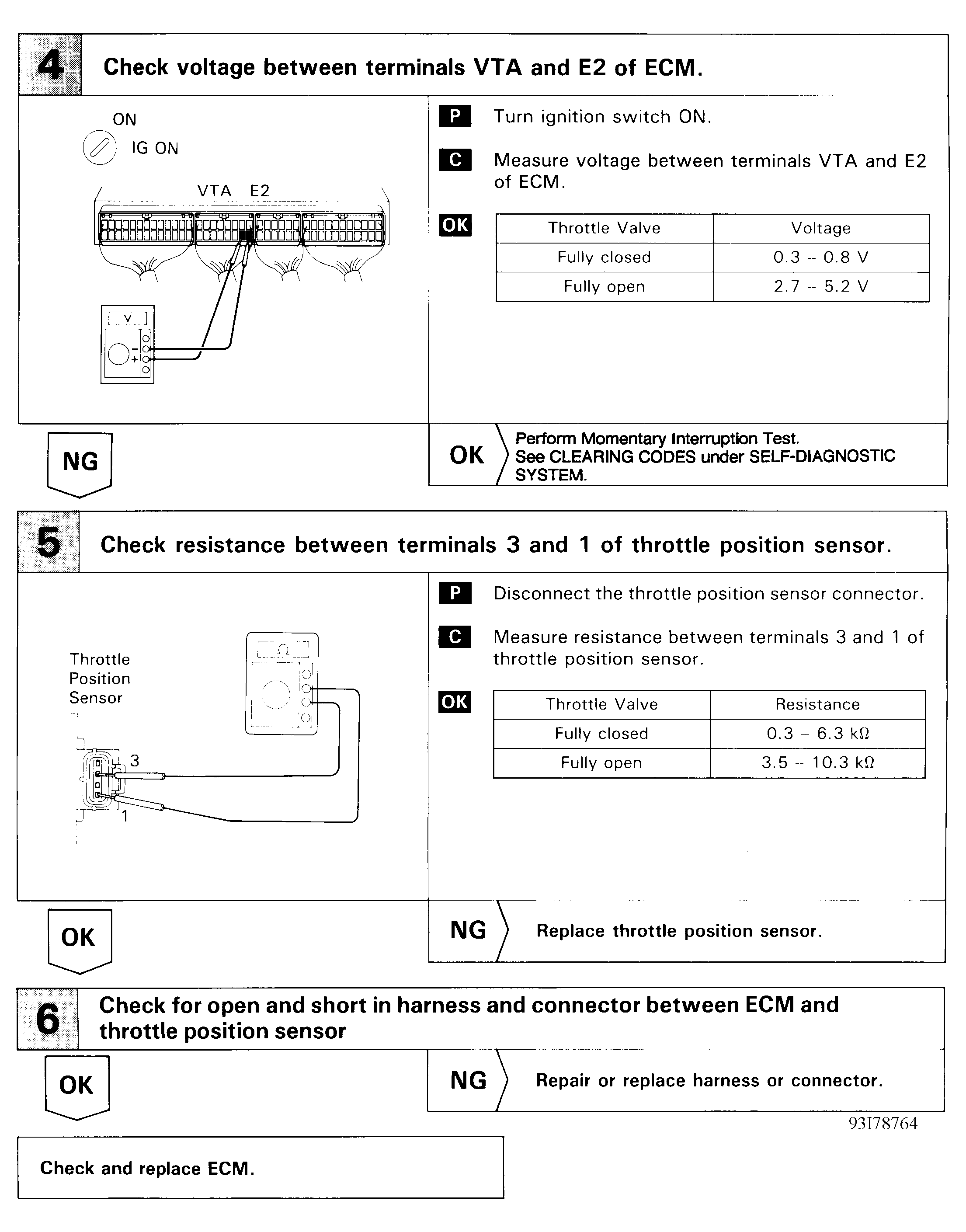

Fig 2: Code 41 - Diagnostic Flowchart (2 Of 2)
G93I78764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
