Test 7 - Ignition Switch Circuit

WARNING: This page is about a different car, the 1993 Lexus SC 400. However, it is still accessible from the selected car via links, so may be relevant.

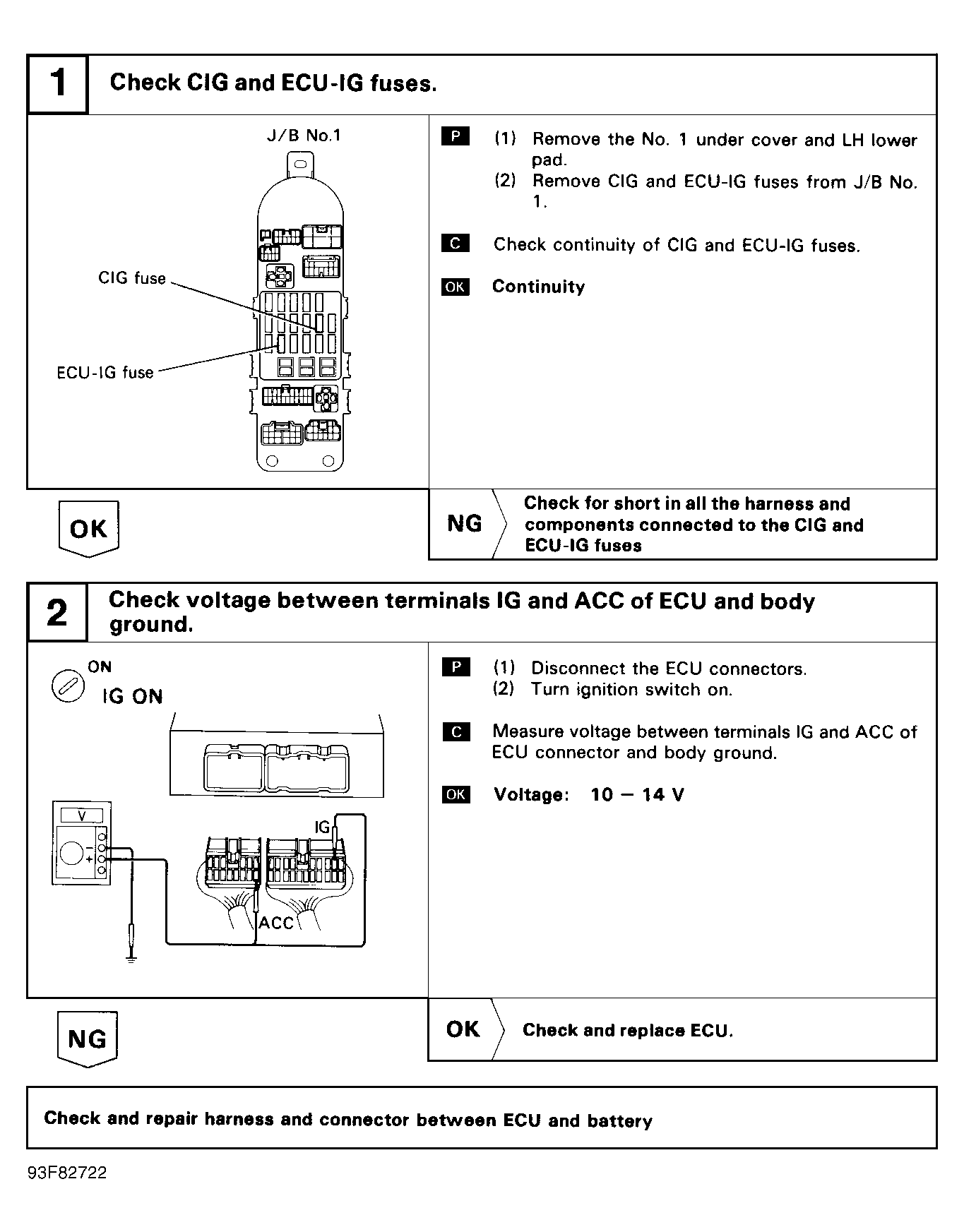

Fig 1: Test 7 - Ignition Switch Circuit
G93F82722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
