Wiring Diagrams

NOTE: For wiring diagrams on models with traction control, see TRACTION CONTROL SYSTEM article in the BRAKES section.

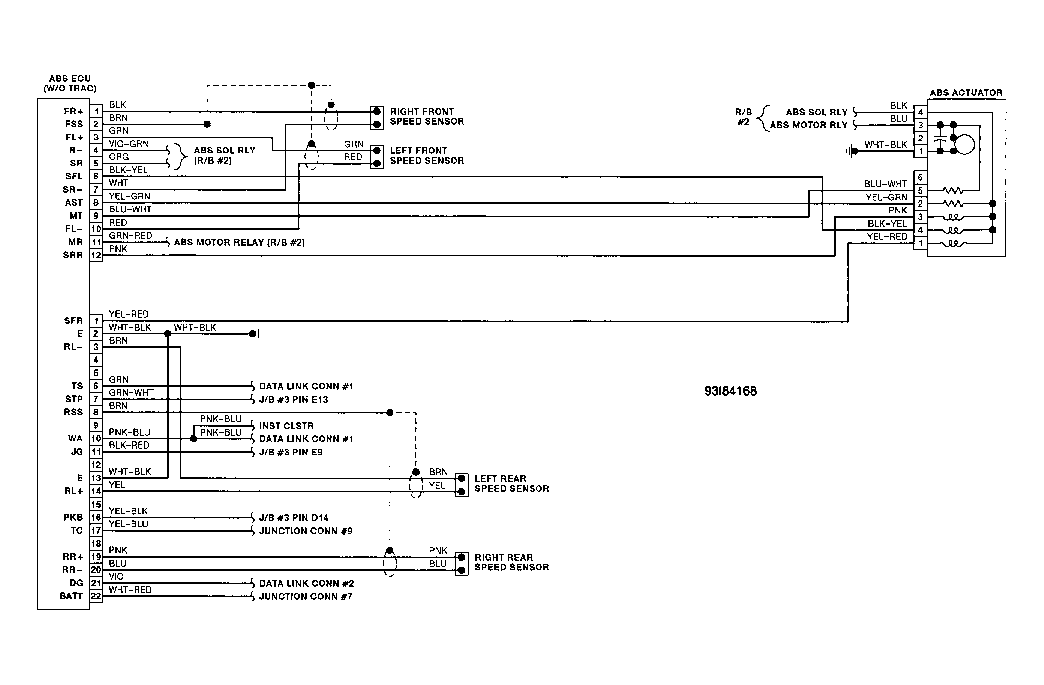

Fig 1: Anti-Lock Brake System Wiring Diagram
G93I84168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
