Stoplight Switch Circuit

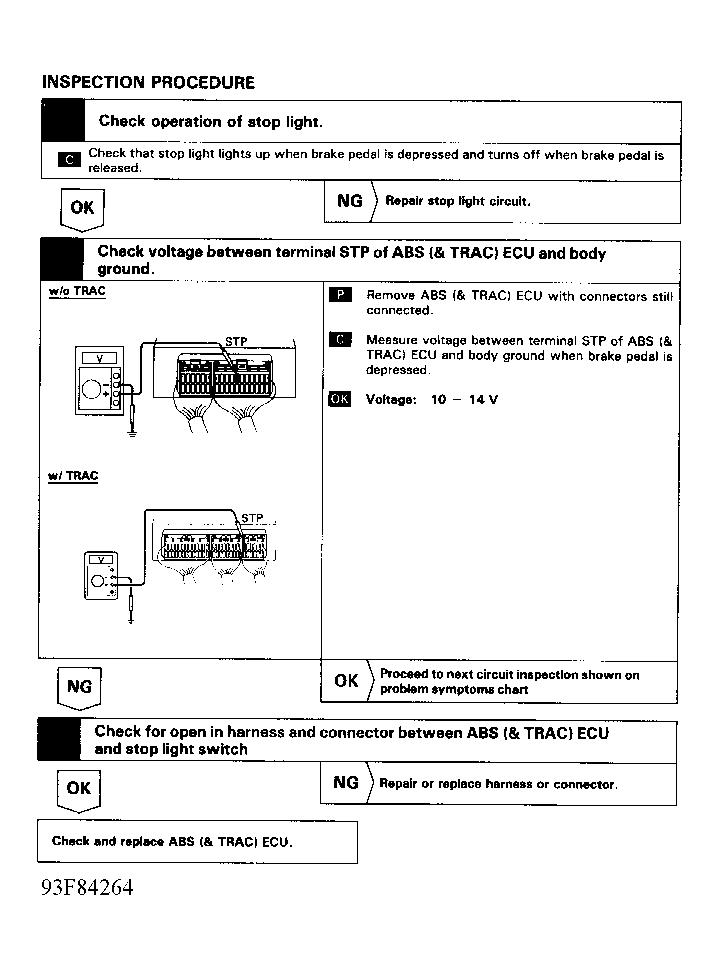

Fig 1: Stoplight Switch Circuit

G93F84264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
