Wiring Diagrams
NOTE:
ES300 and SC300 models are not equipped with electric cooling fan.

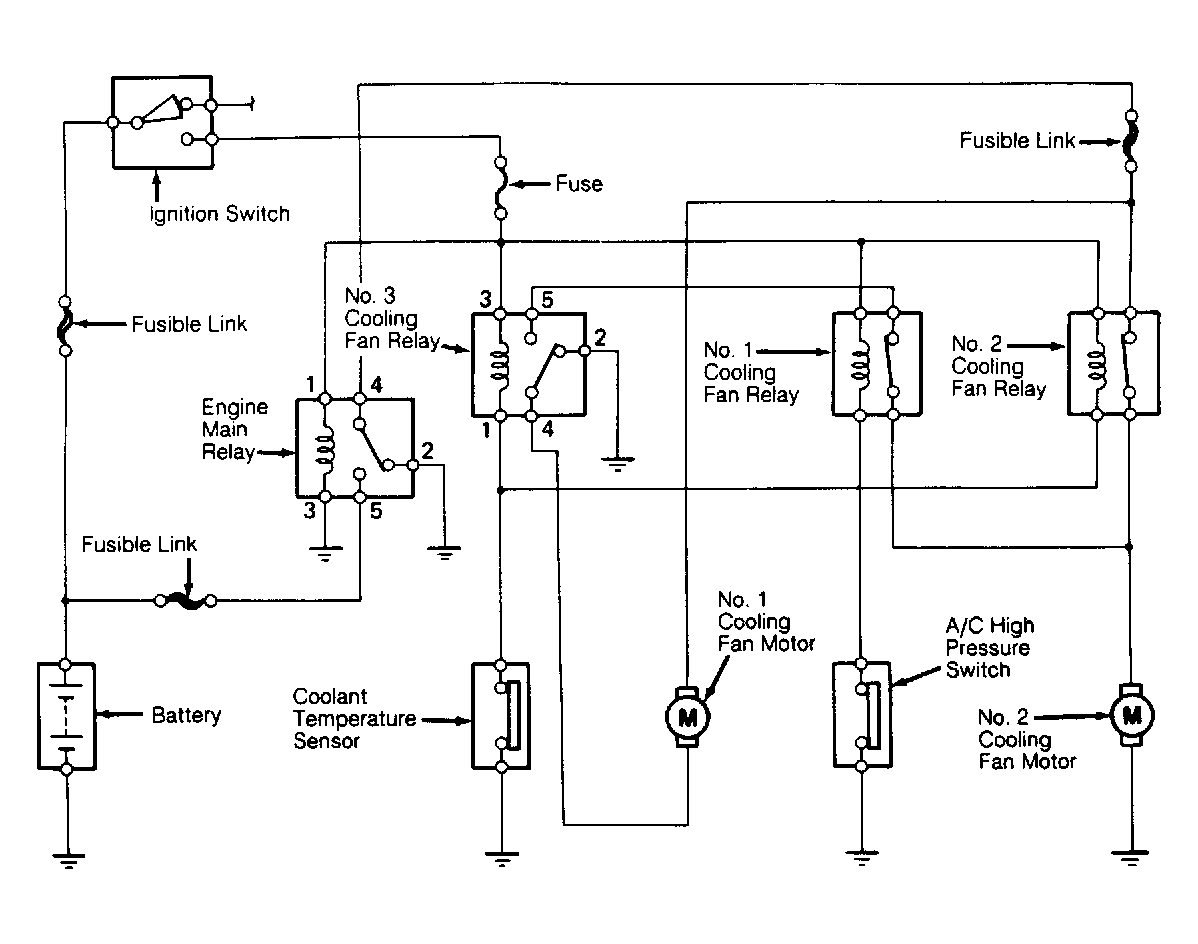

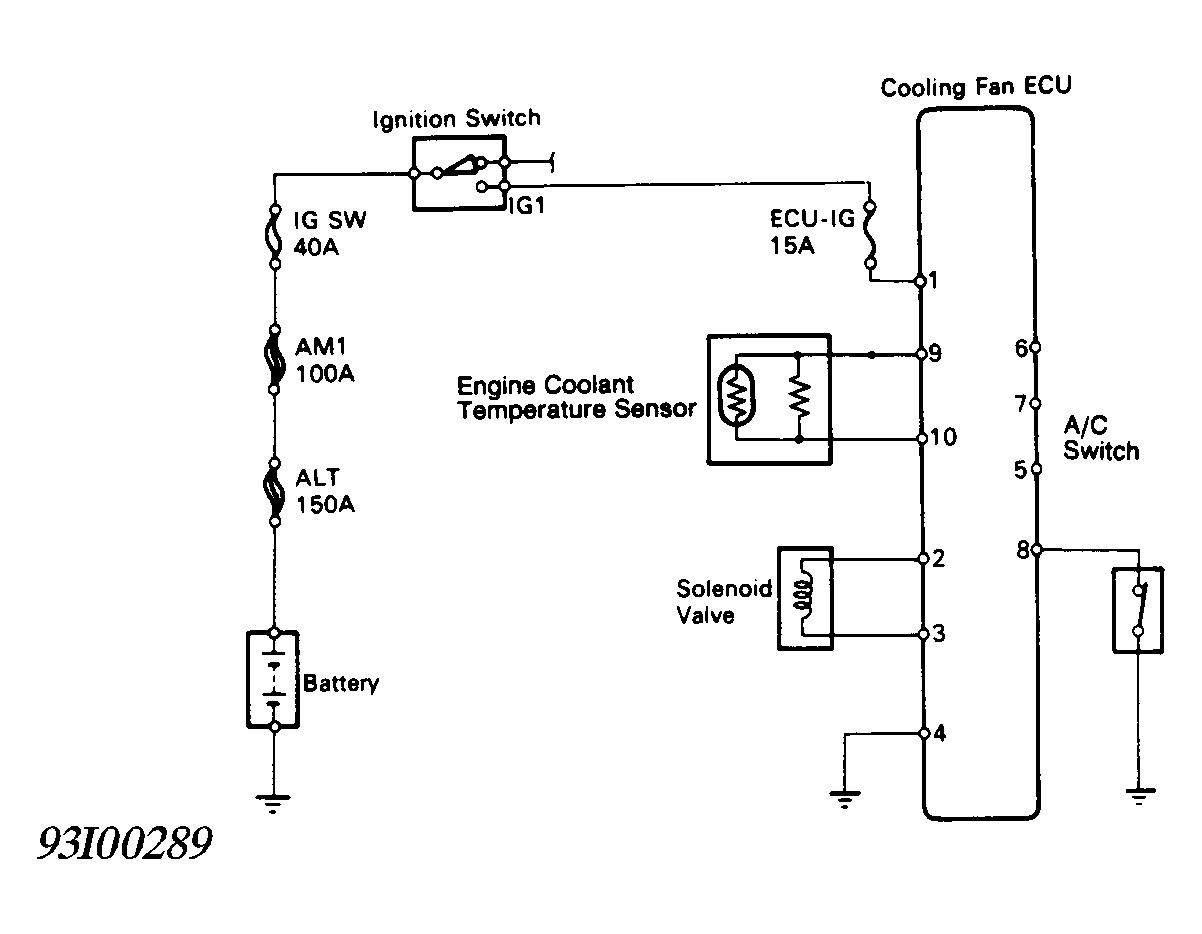

See Fig 1 and Fig 2
. For additional information, see appropriate chassis wiring diagram in WIRING DIAGRAMS article in the WIRING DIAGRAMS Section.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
