Wiring Diagrams

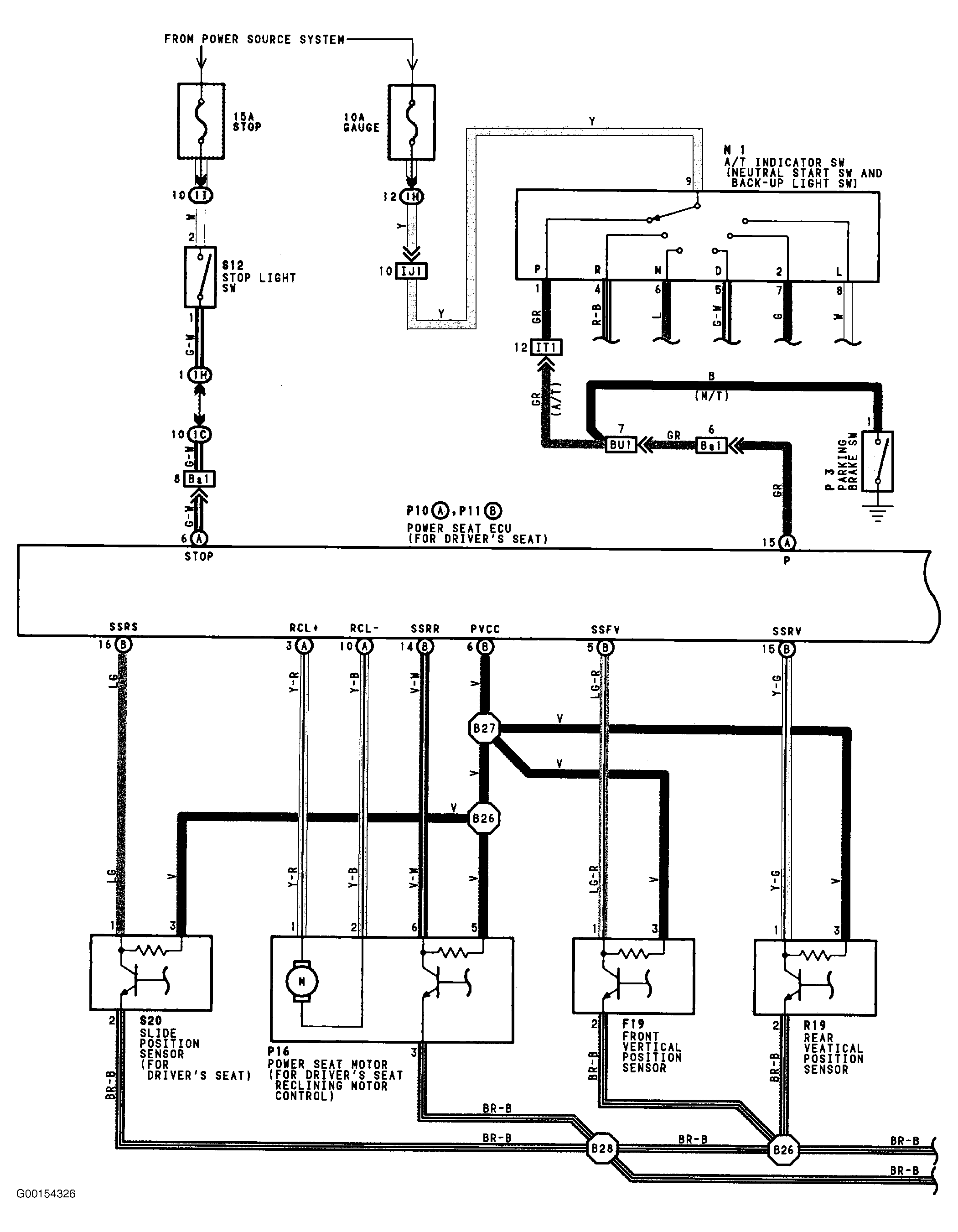

Fig 1: Power Seat Wiring Diagram (SC 300 - 1 Of 4)
G00154326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

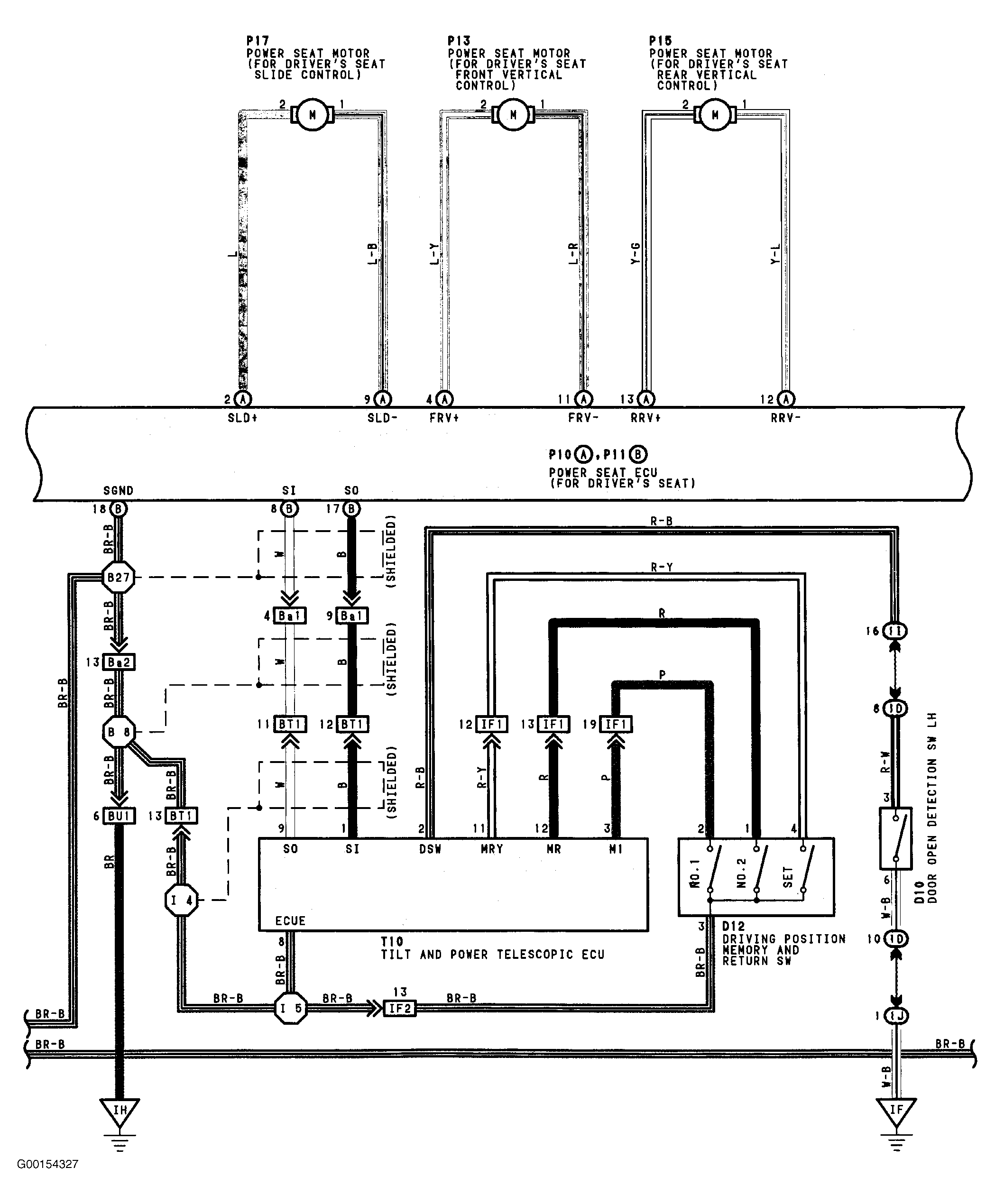

Fig 2: Power Seat Wiring Diagram (SC 300 - 2 Of 4)
G00154327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

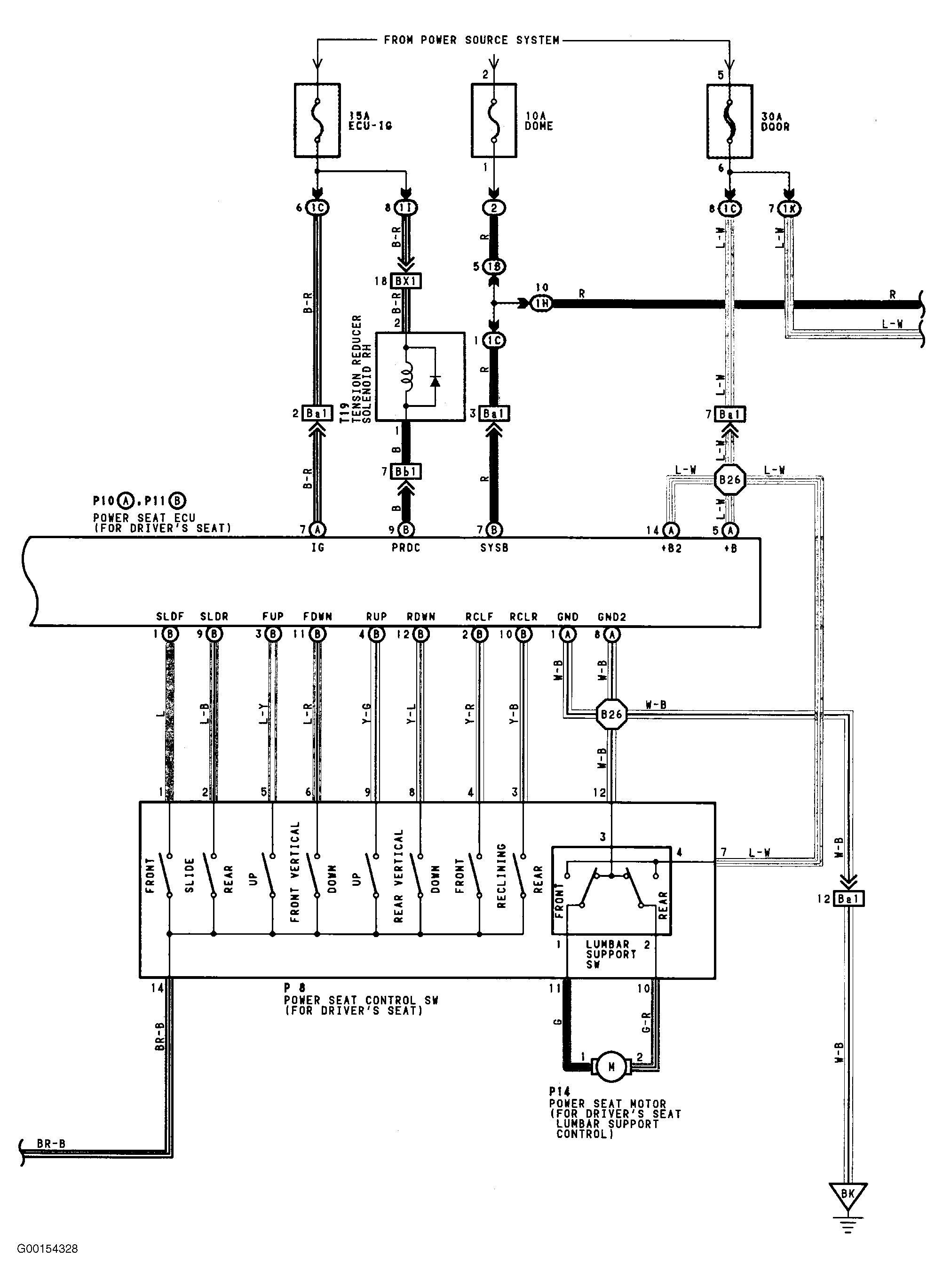

Fig 3: Power Seat Wiring Diagram (SC 300 - 3 Of 4)
G00154328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

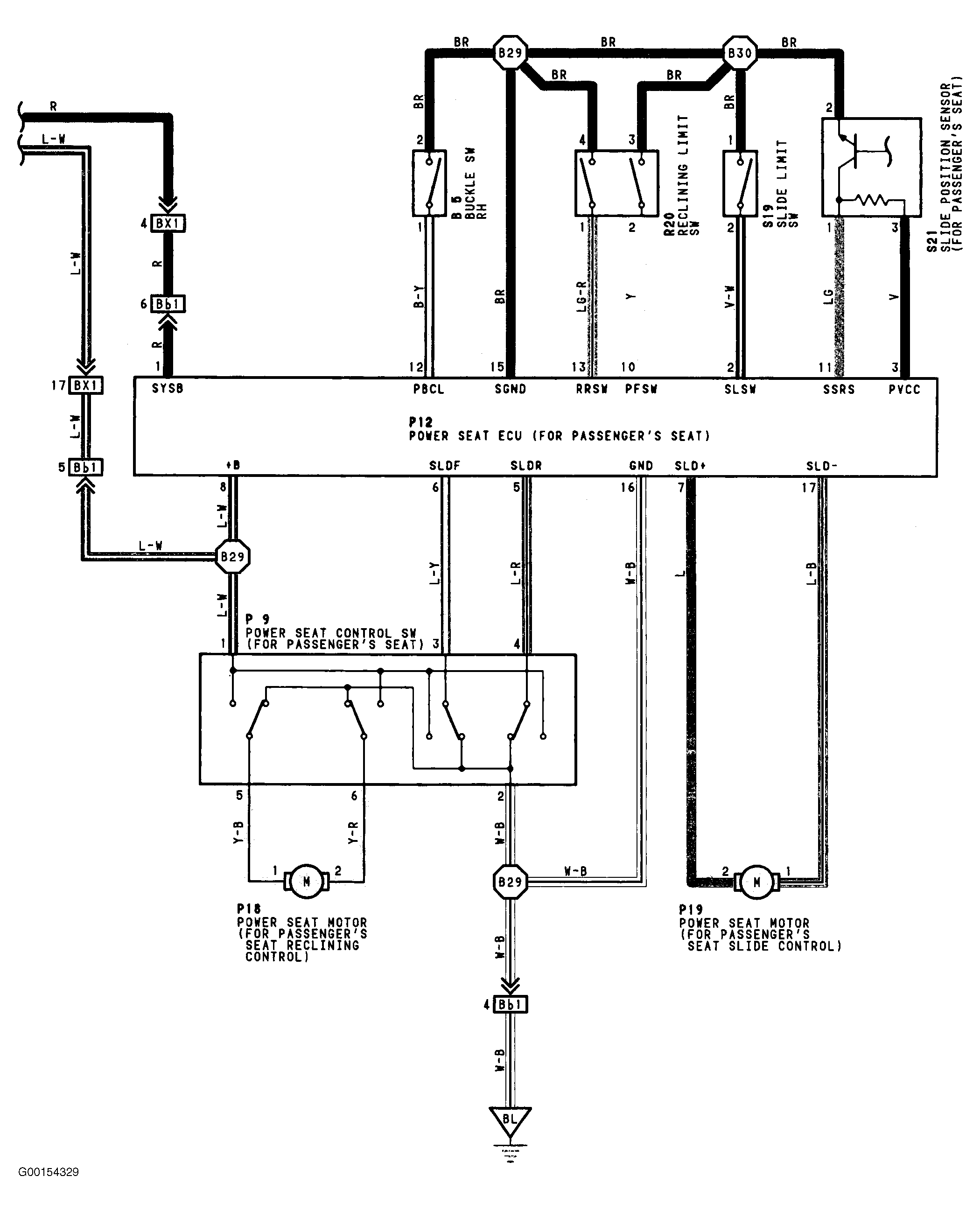

Fig 4: Power Seat Wiring Diagram (SC 300 - 4 Of 4)
G00154329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

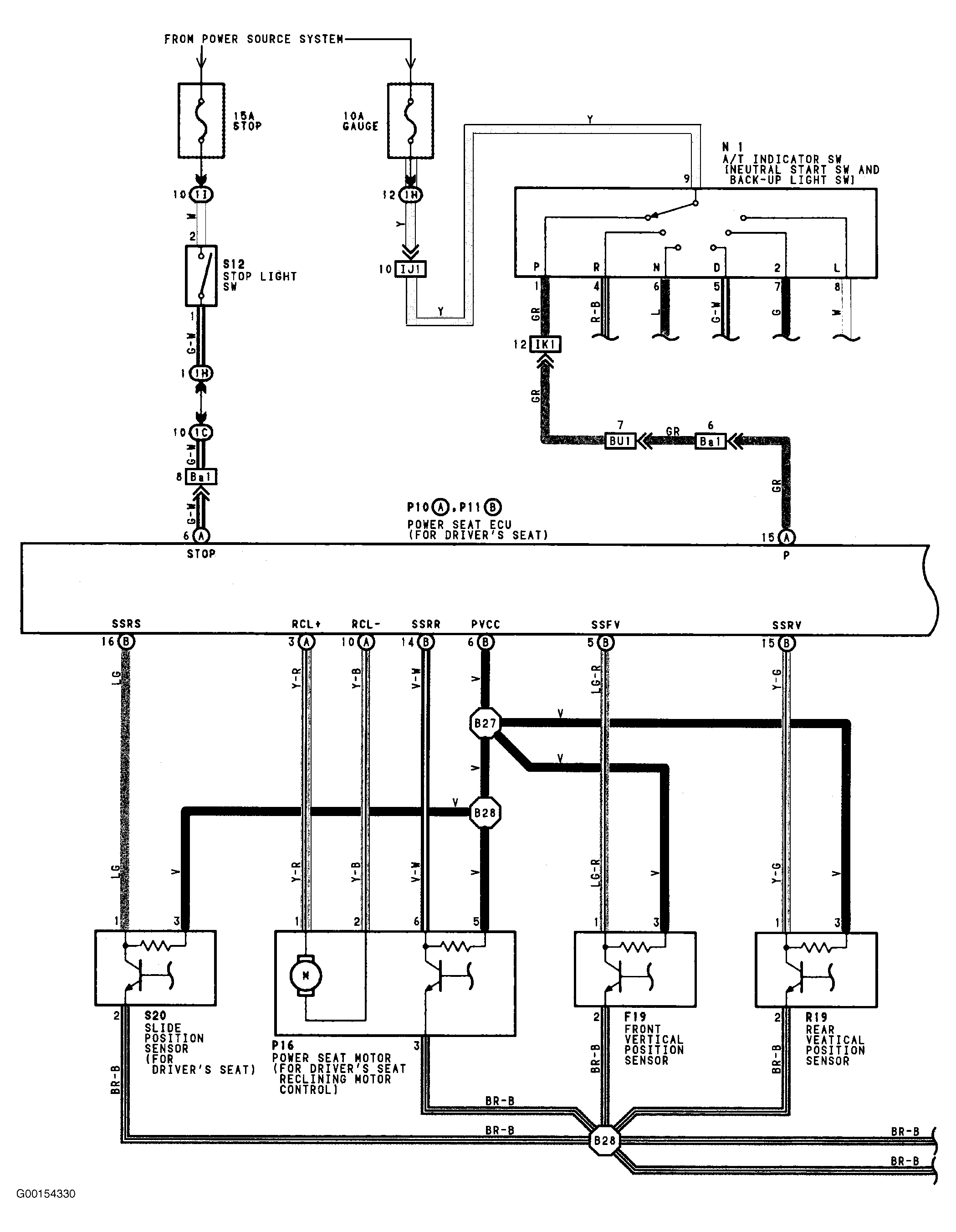

Fig 5: Power Seat Wiring Diagram (SC 400 - 1 Of 4)
G00154330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

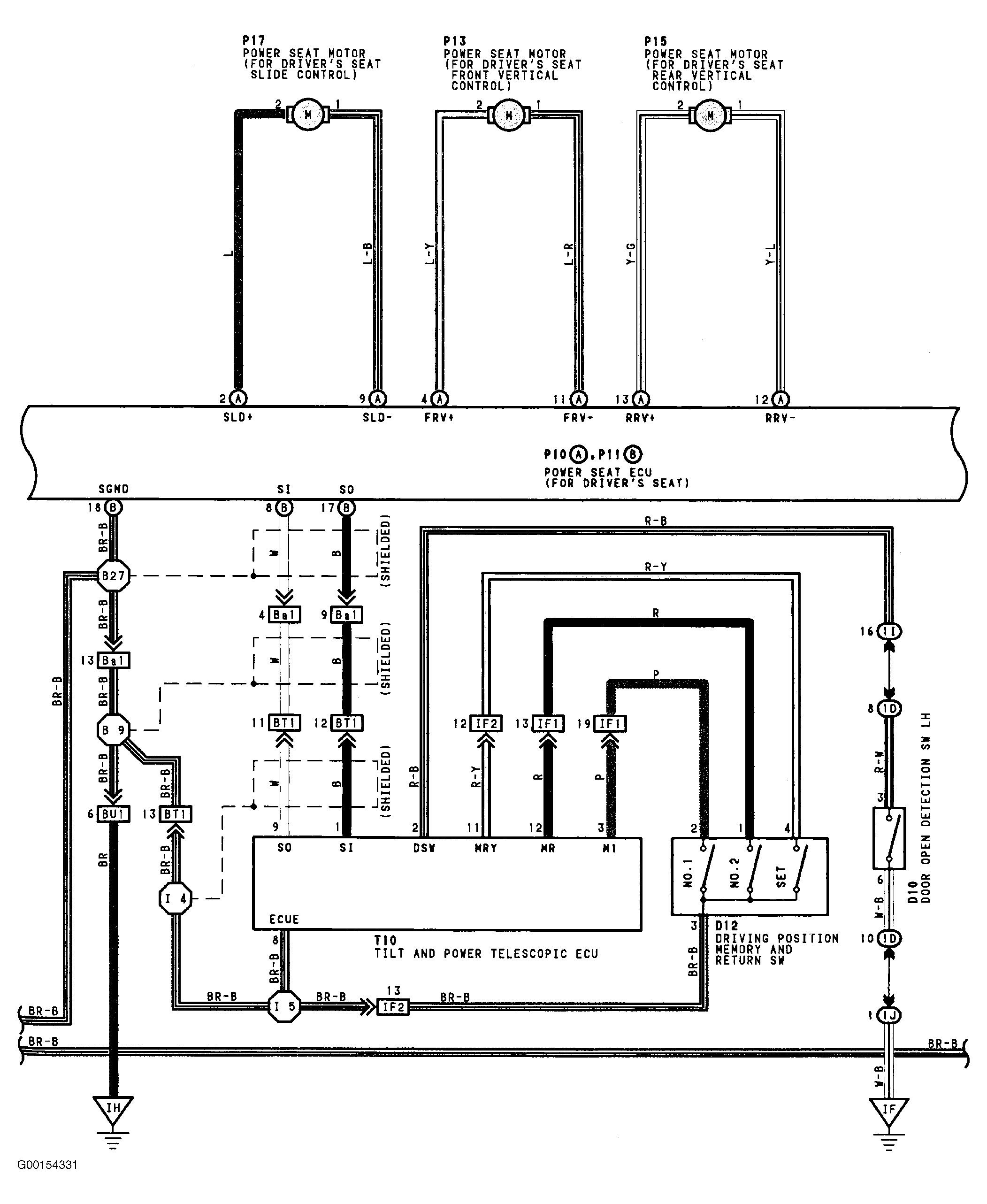

Fig 6: Power Seat Wiring Diagram (SC 400 - 2 Of 4)
G00154331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

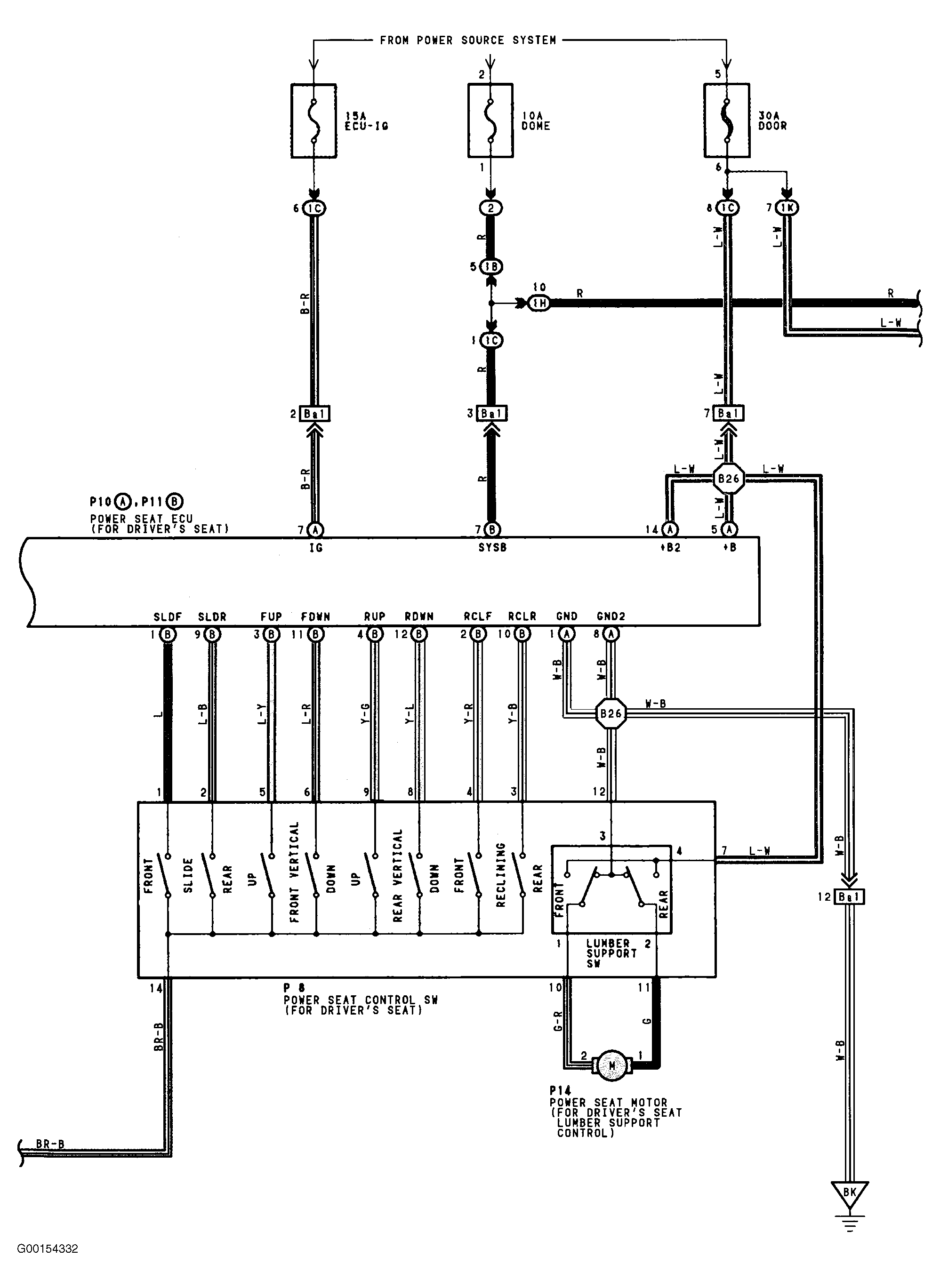

Fig 7: Power Seat Wiring Diagram (SC 400 - 3 Of 4)
G00154332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

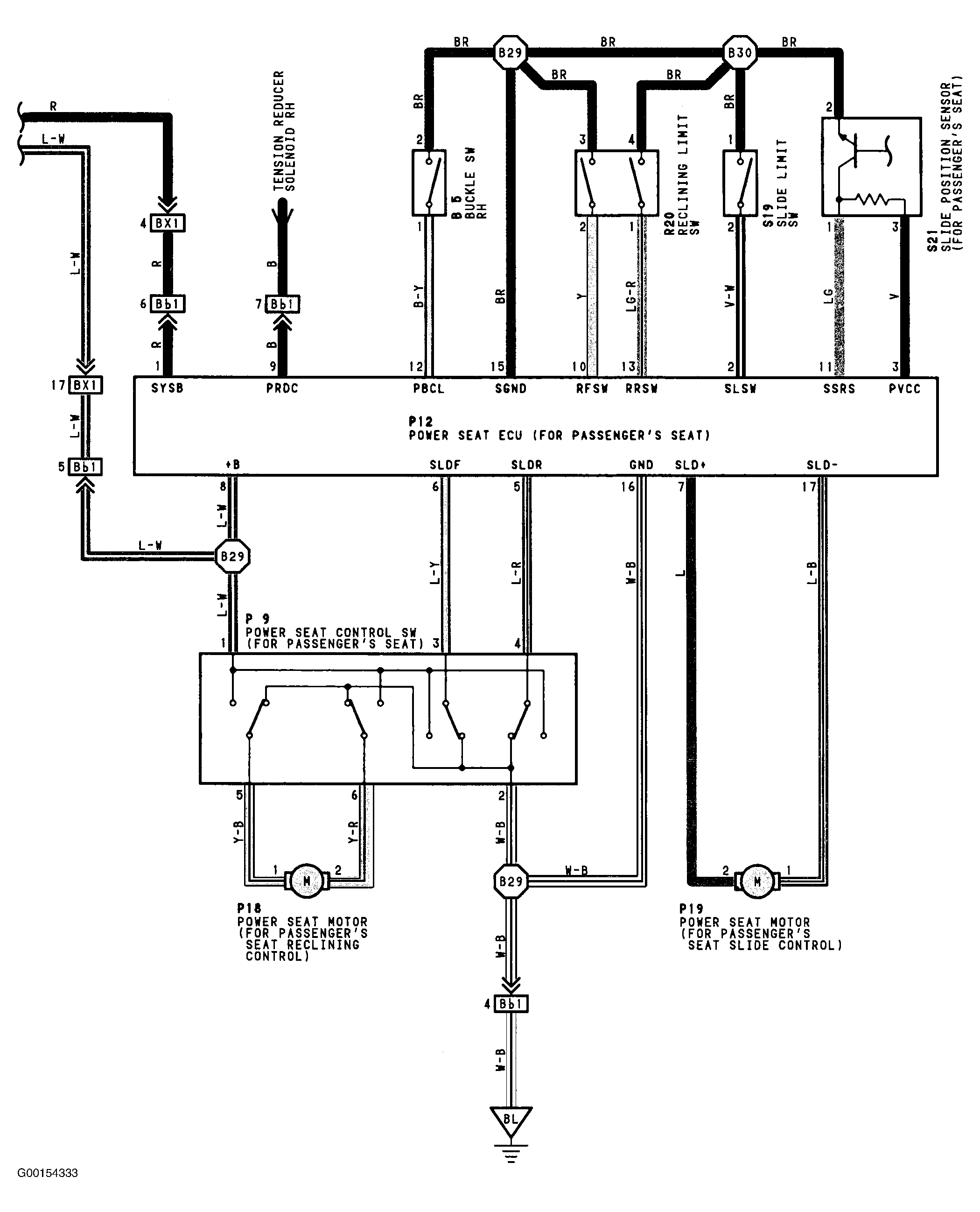

Fig 8: Power Seat Wiring Diagram (SC 400 - 4 Of 4)
G00154333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

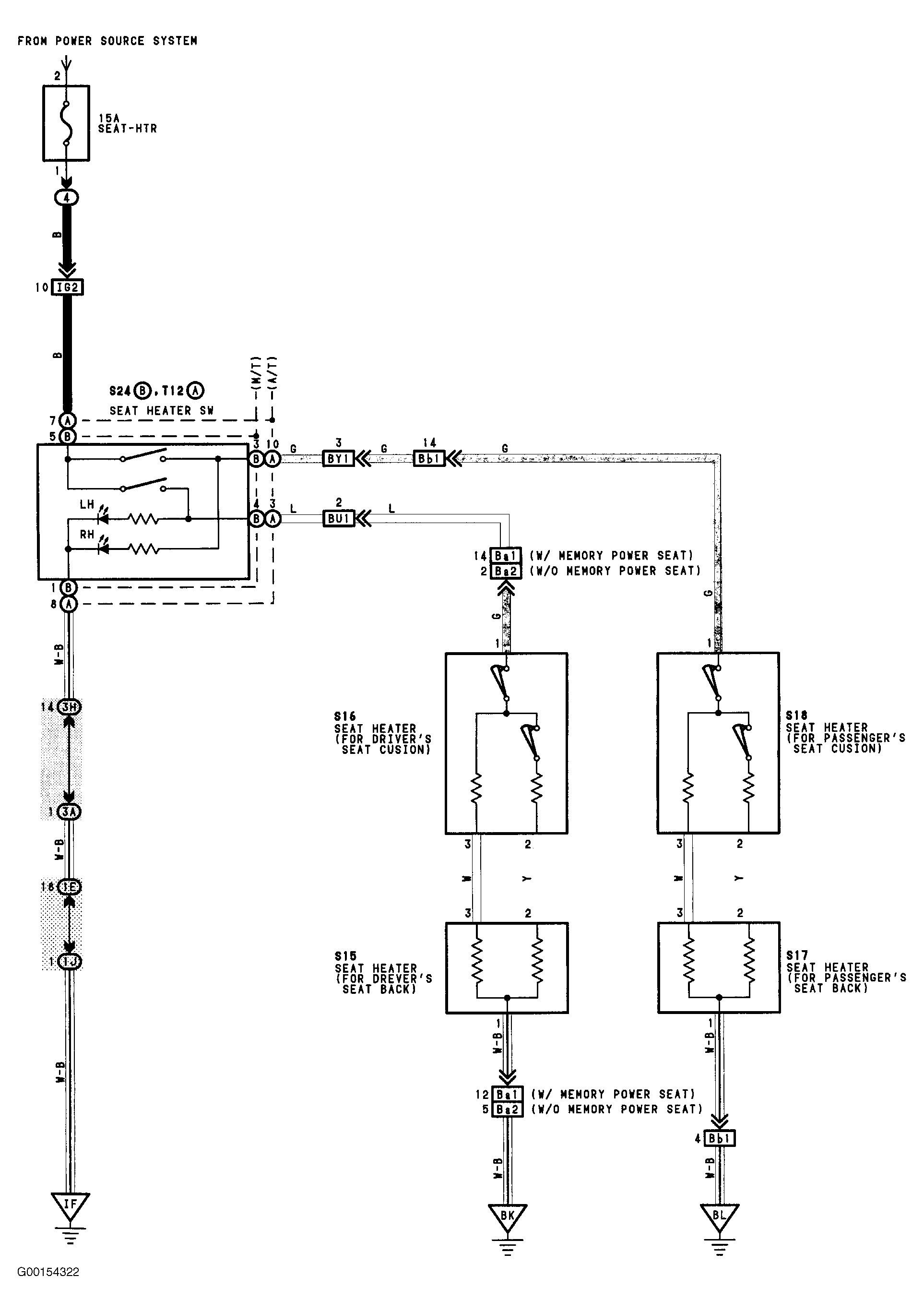

Fig 9: Seat Heater Wiring Diagram (SC 300)
G00154322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

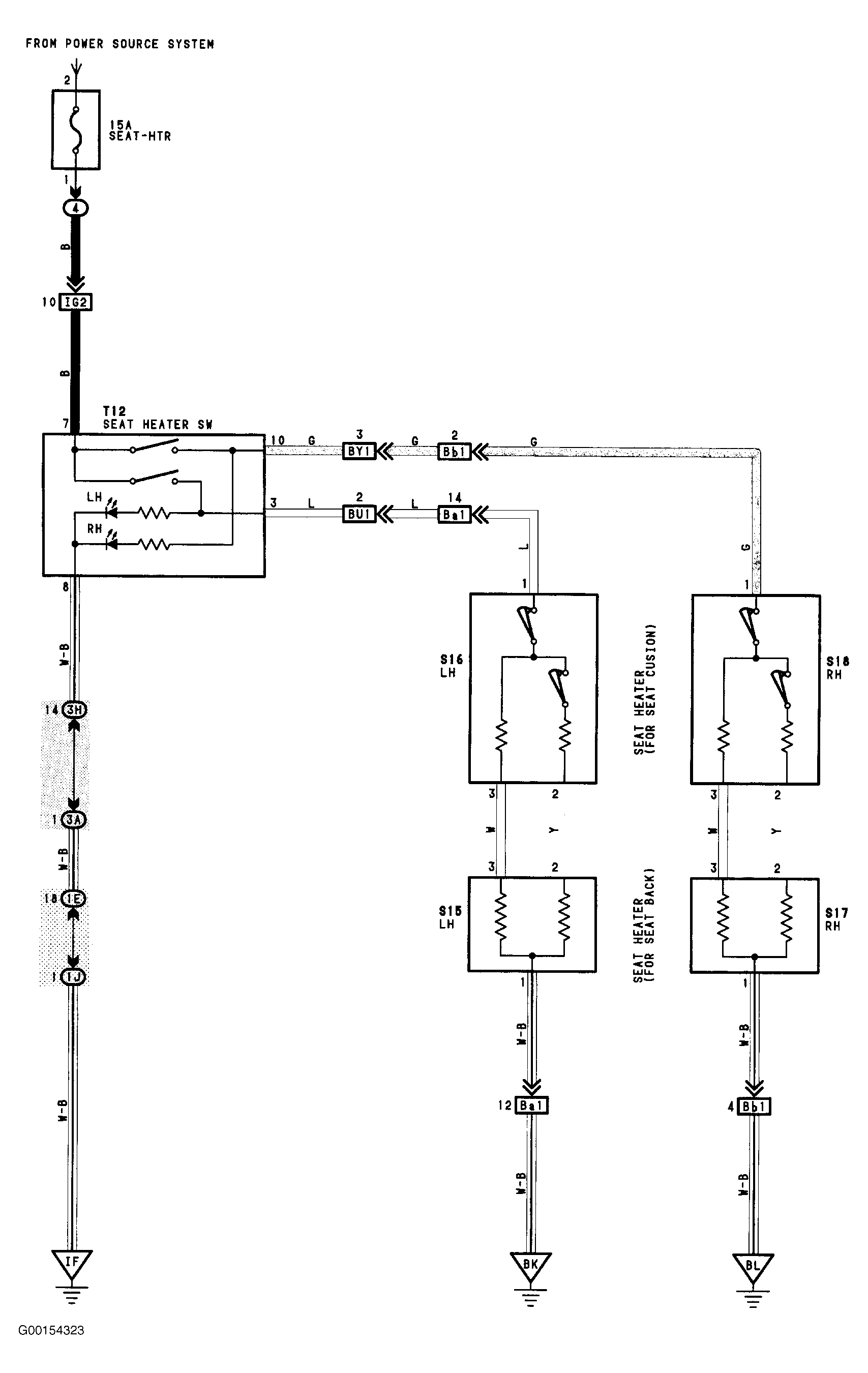

Fig 10: Seat Heater Wiring Diagram (SC 400)
G00154323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
