Home >> Lexus >> 1992 >> SC 400 >> Repair and Diagnosis >> Body & Frame >> Power Seats - With Memory >> Removal & Installation >> Power Seat >> Installation

Power Seat: Installation

  1. Install headrest to seat.
  2. Install front seat.

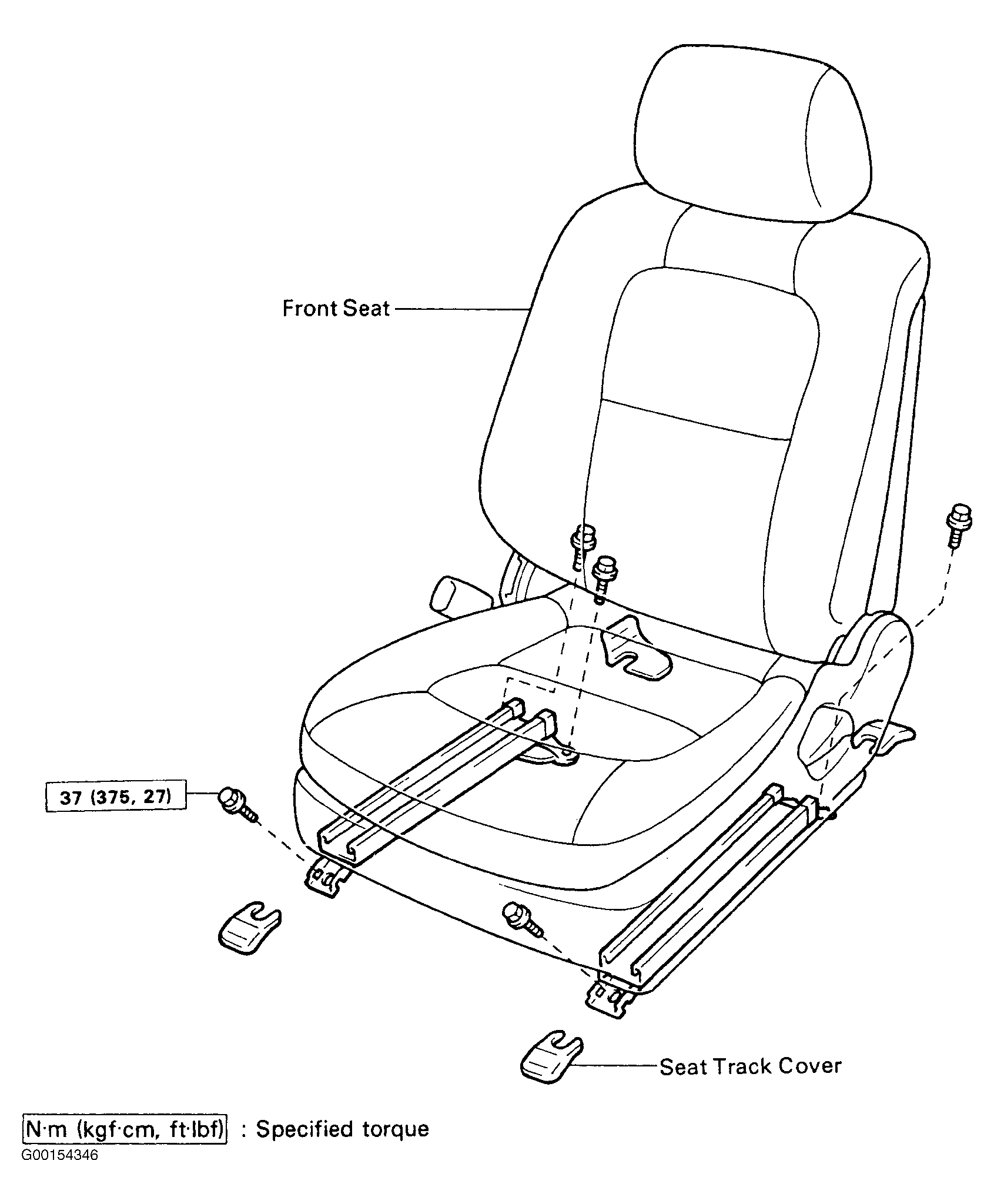

  3. Connect the connector. See Figure.
  4. Install and tighten the five bolts. See Figure.
  5. Check operation of seat adjuster.
  6. Install seat track covers.
