Seat Heater Switch: Continuity

  1. Inspect the switch continuity between terminals as shown in Fig 1.
  2. If continuity is not as specified, replace the switch or bulb.

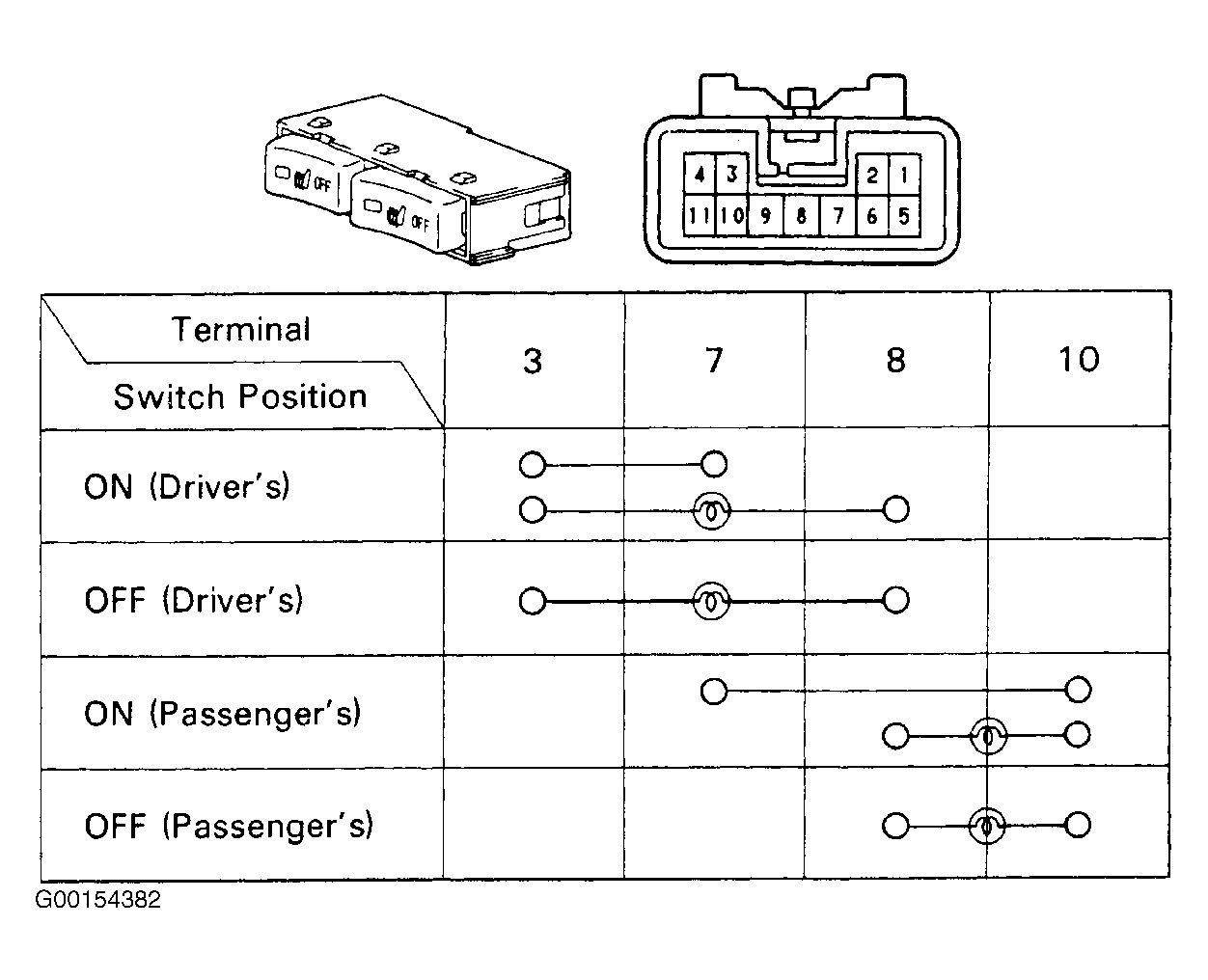

Fig 1: Testing Seat Heater Switch Continuity
G00154382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
