Home >> Lexus >> 1992 >> SC 300 Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seats - Without Memory >> Trouble Shooting >> Power Seat Control System

Power Seat Control System

NOTE: The numbers in Fig 1 indicate the priority of testing procedures.

To trouble shoot power seat control system, see Fig 1.

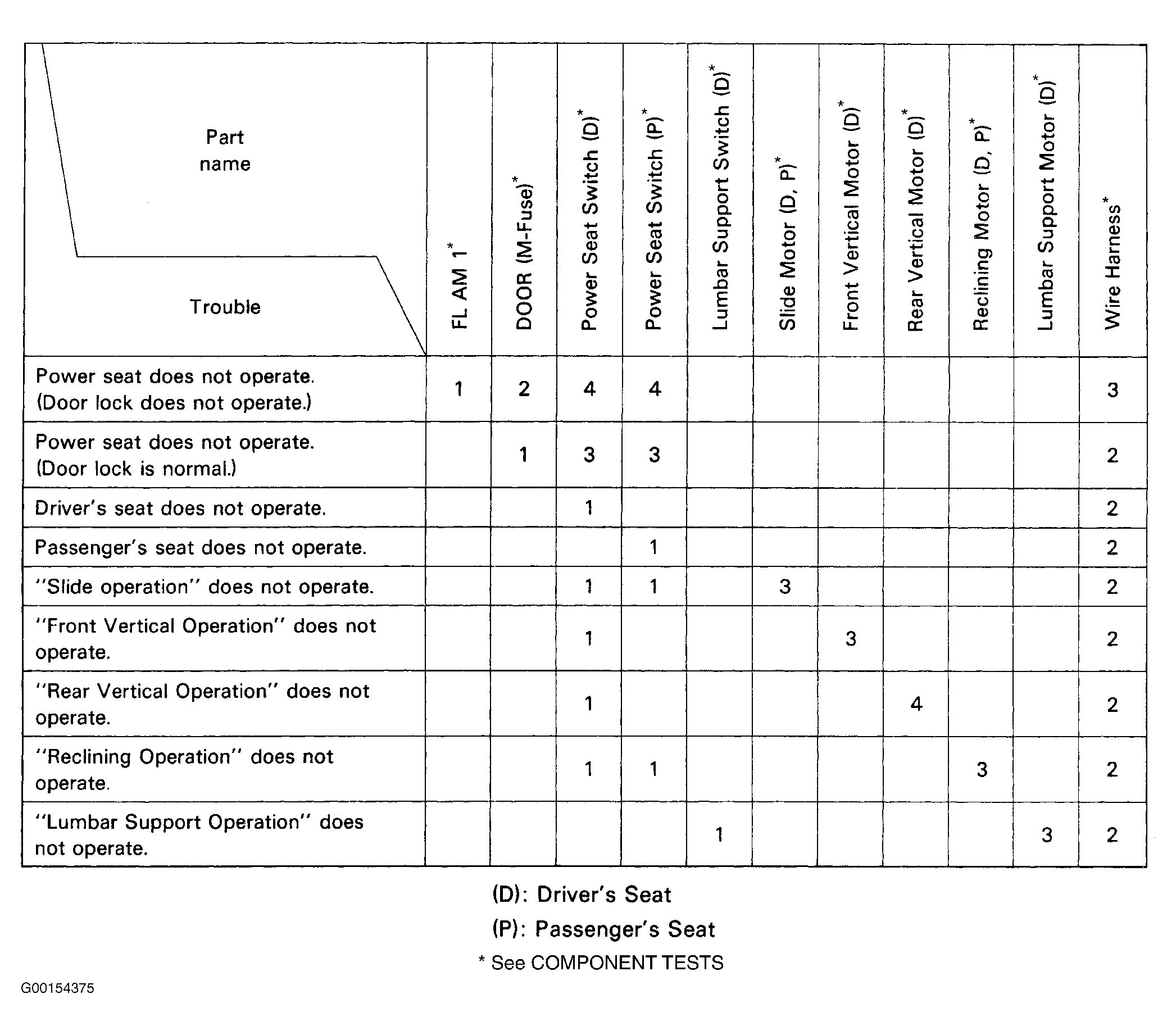

Fig 1: Trouble Shooting Power Seat Control System
G00154375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
