Testing Switch Circuit

  1. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.
  2. Inspect the connector on the wire harness side as shown in Fig 1.
  3. If circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .

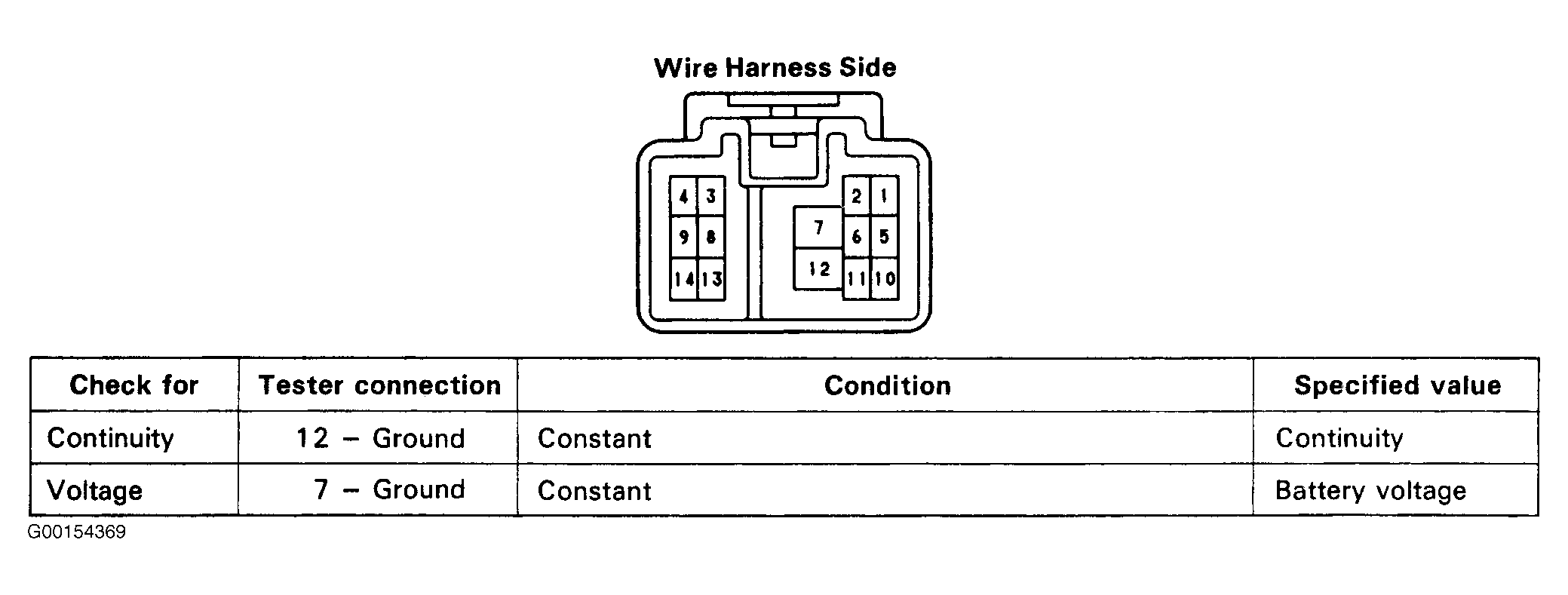

Fig 1: Testing Switch Circuit
G00154369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
