Testing Continuity

  1. Inspect the switch continuity between terminals. See Fig 1 and Fig 2 .
  2. If continuity is not as specified, replace the switch.

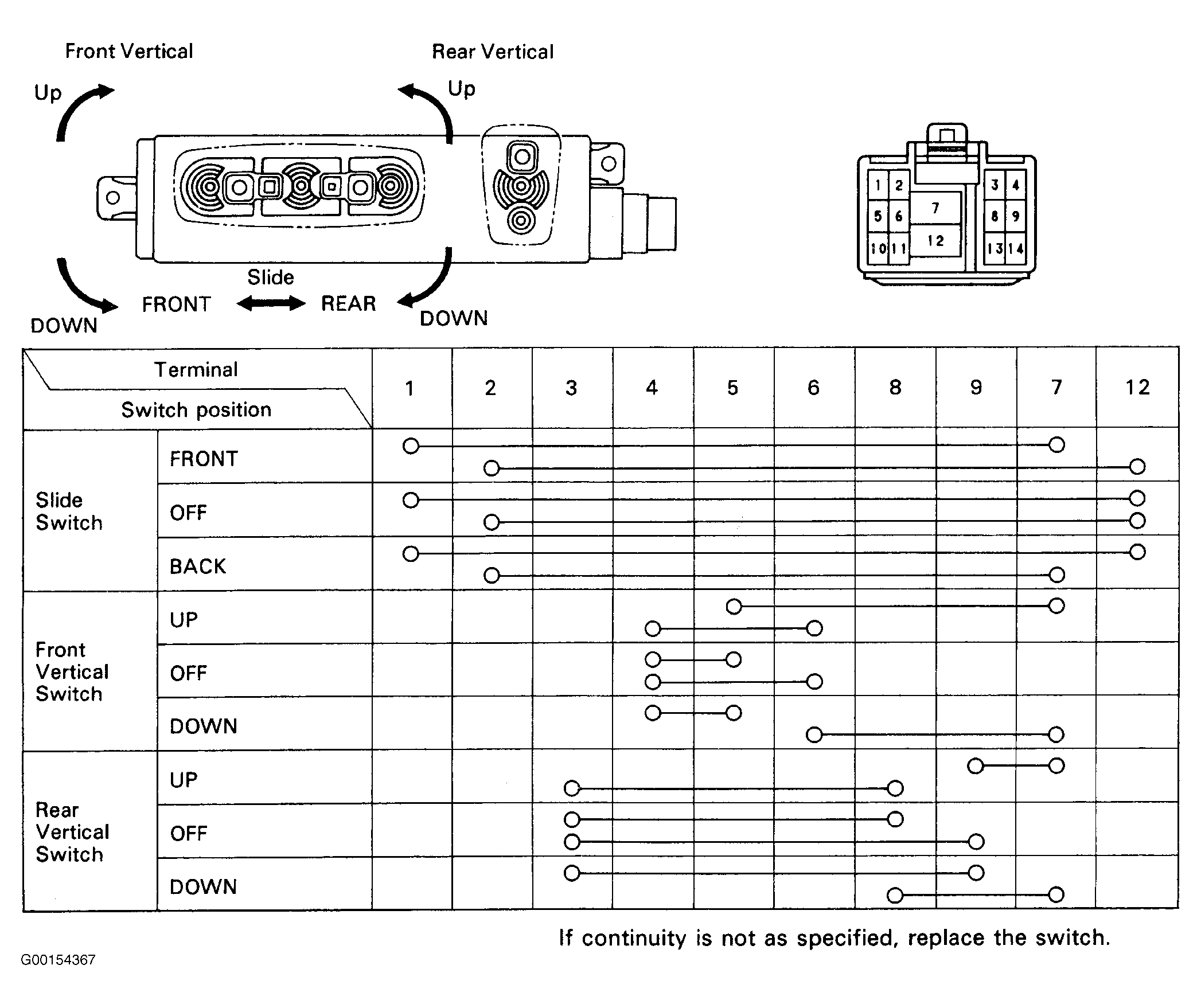

Fig 1: Testing Power Seat Switch Continuity
G00154367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

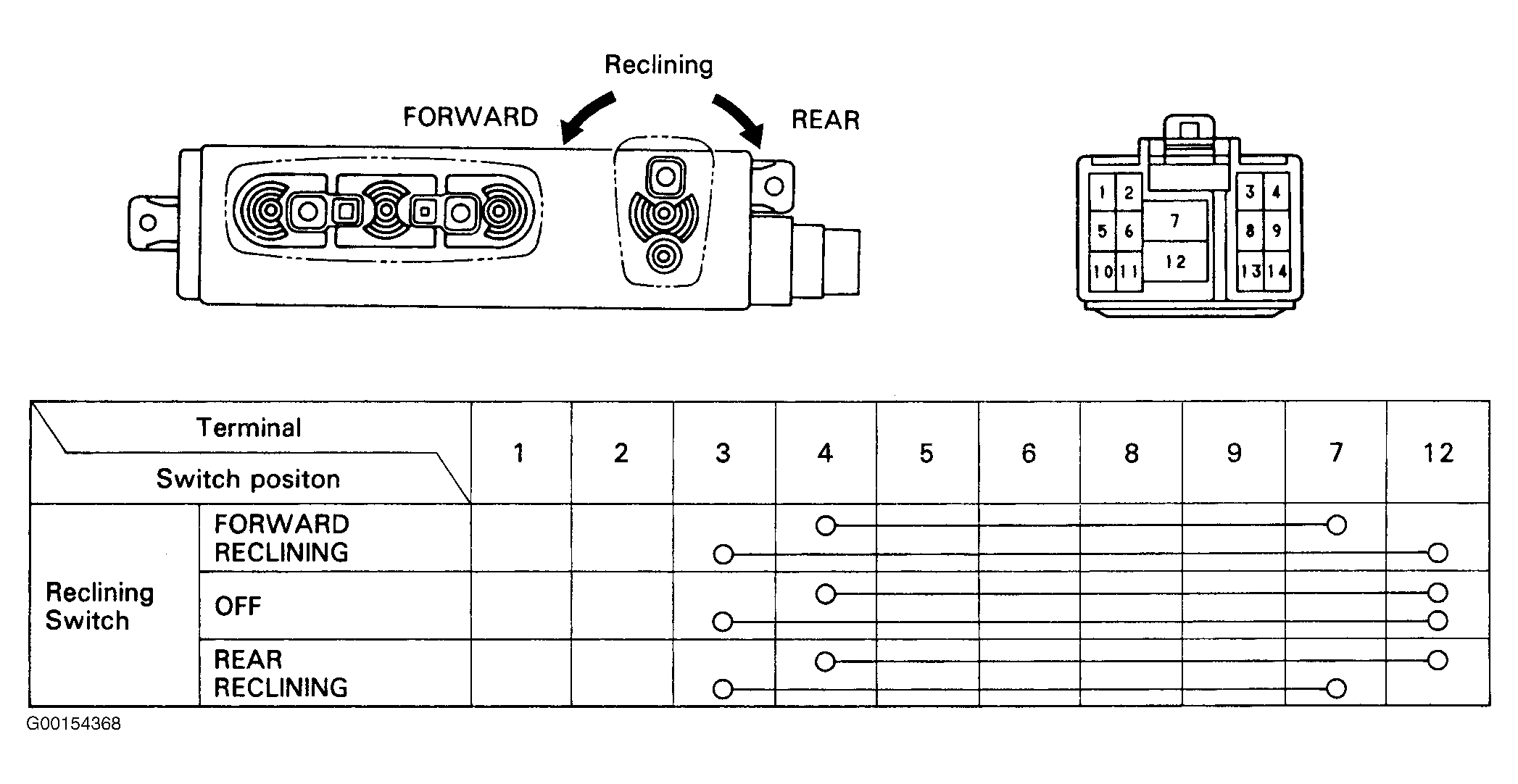

Fig 2: Testing Reclining Switch Continuity
G00154368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
