ABS Solenoid Relay

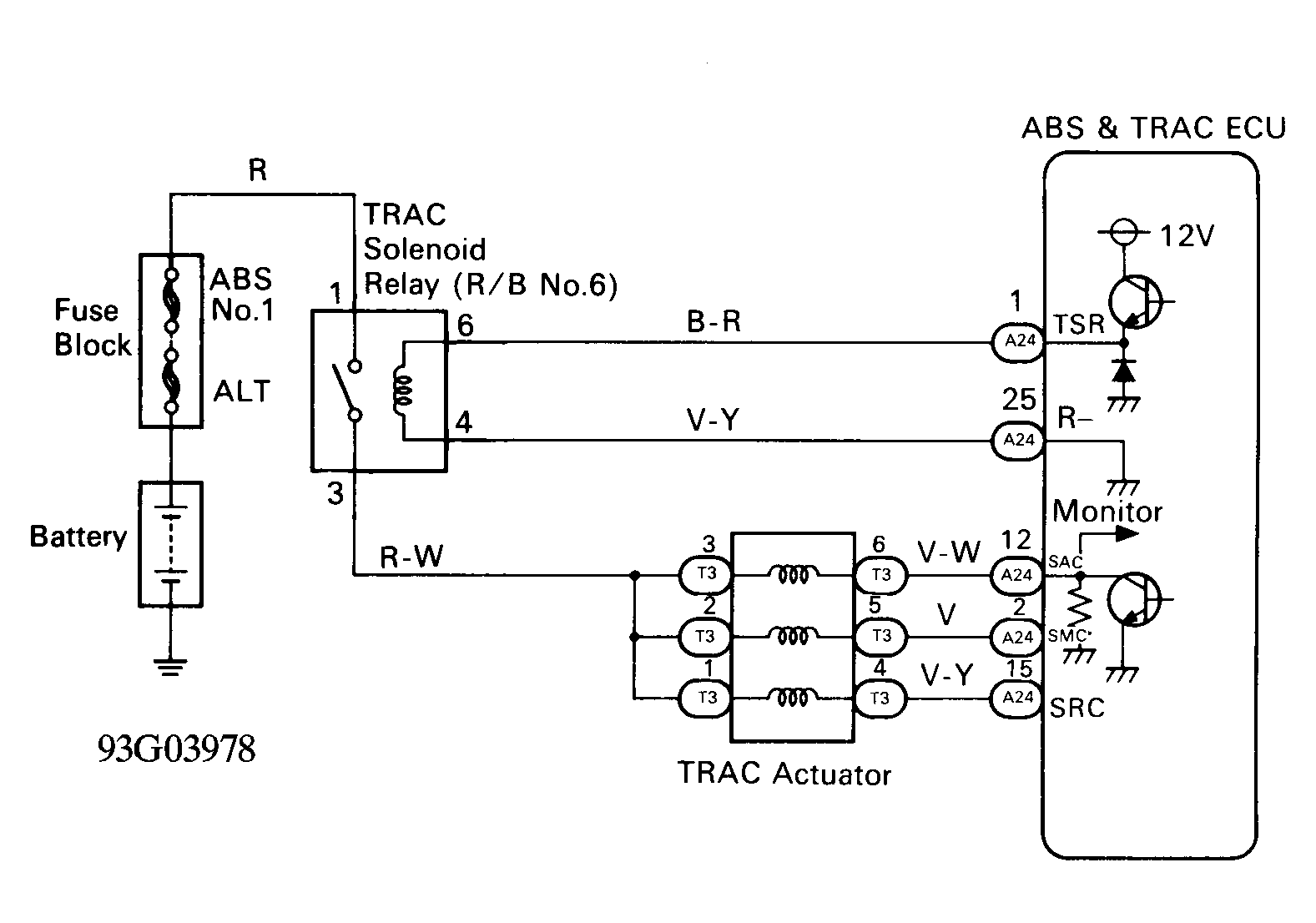

  1. Remove actuator solenoid relay from ABS relay block (near brake master cylinder). Check continuity between indicated terminals of ABS solenoid relay. See Figure through Figure . If readings are not as specified, replace ABS solenoid relay.
  2. Apply battery voltage between ABS solenoid relay terminals No. 4 and 6. See Figure through Figure . Continuity should not be present between ABS solenoid relay terminals No. 2 and 3. Continuity should be present between ABS solenoid relay terminals No. 1 and 3. See Figure through Figure . If readings are not as specified, replace ABS solenoid relay.
