Home >> Lexus >> 1992 >> ES 300 Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Wiring Diagrams

Wiring Diagrams

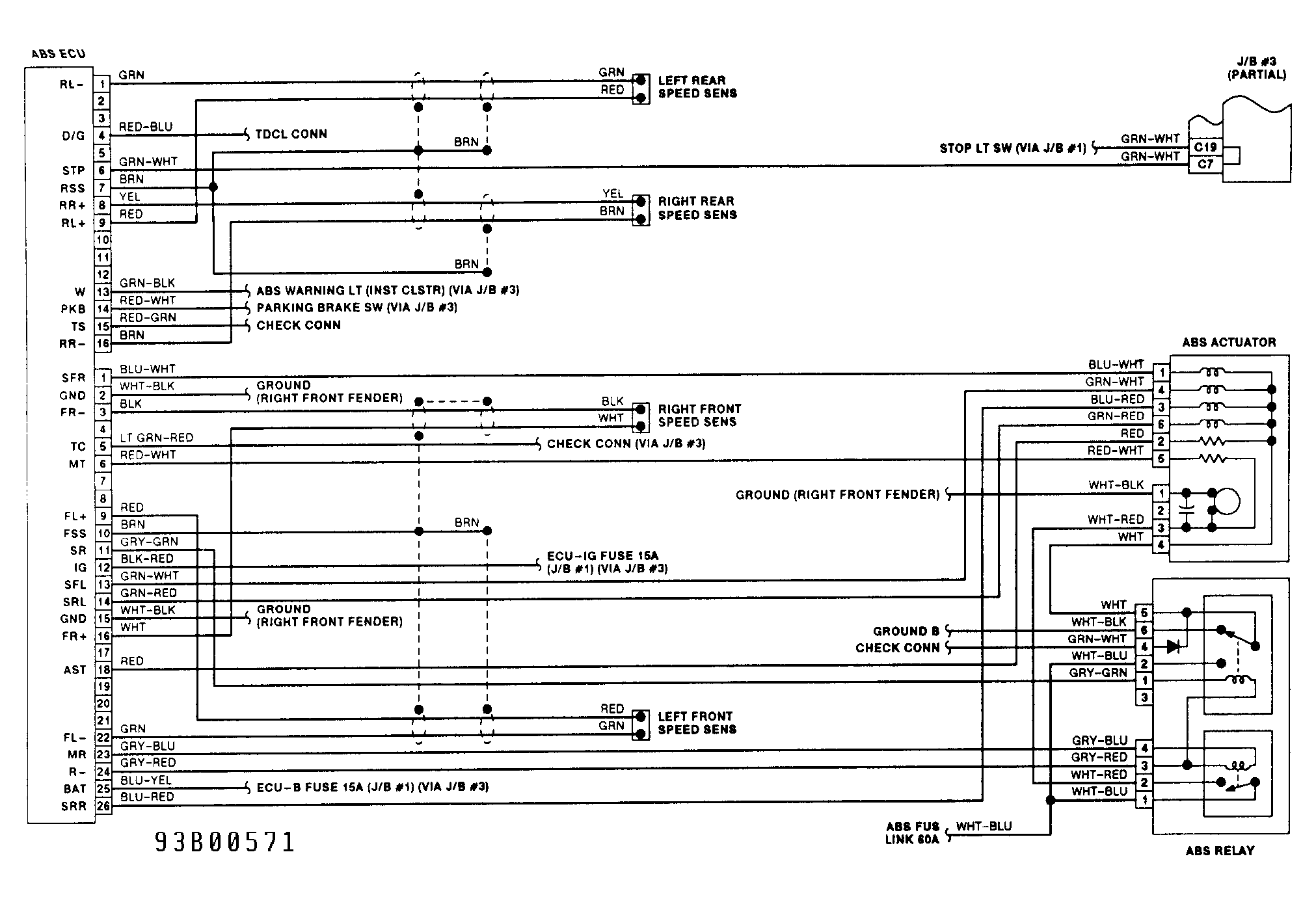

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram

G93B00571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
