Code 51

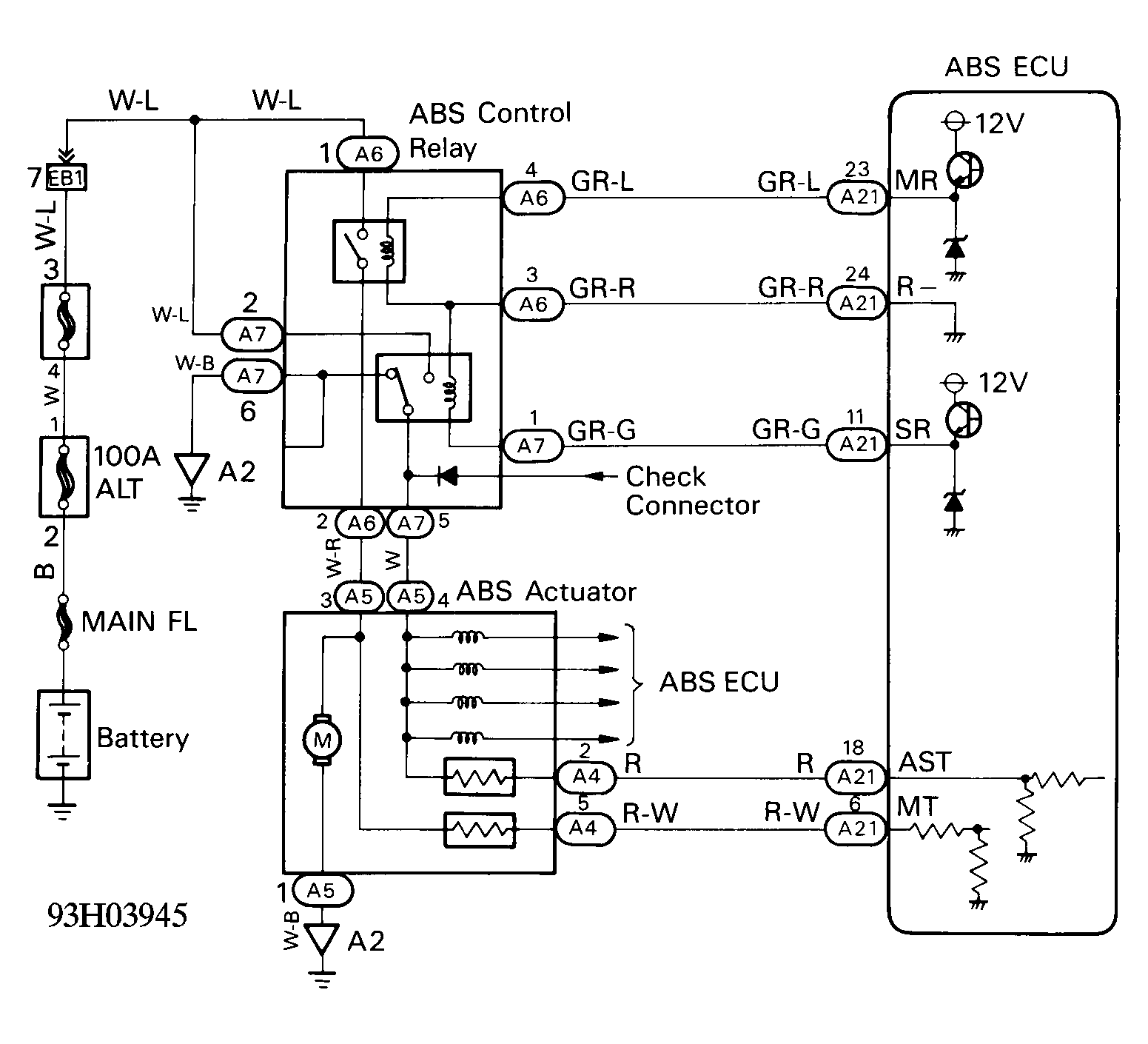

CODE 51 CIRCUIT DESCRIPTION
| Code | Diagnostic Code Detecting Condition | Trouble Area |
|---|---|---|
| 51 | Pump motor is not operating normally duringinitial check. | ABS pump motor. |
NOTE:
Fail Safe Function: If trouble occurs in the ABS pump motor, the ECU cuts off the current to the control (motor) relay and prohibits ABS control.
CODE 51 WIRE COLOR ABBREVIATIONS
| Abbreviation | Wire Color |
|---|---|
| B | Black |
| GR-G | Gray/Green |
| GR-L | Gray/Blue |
| GR-R | Gray/Red |
| LG-R | Light Green/Red |
| R | Red |
| R-G | Red/Green |
| R-W | Red/White |
| W | White |
| W-B | White/Black |
| W-L | White/Blue |
| W-R | White/Red |
| Y-B | Yellow/Black |
