Antenna Circuit
NOTE:
Perform this inspection only when transmitter is judged to be faulty in PRECHECK TYPE II: SYSTEM FAILS TO OPERATE ANYWHERE under TROUBLE SHOOTING.

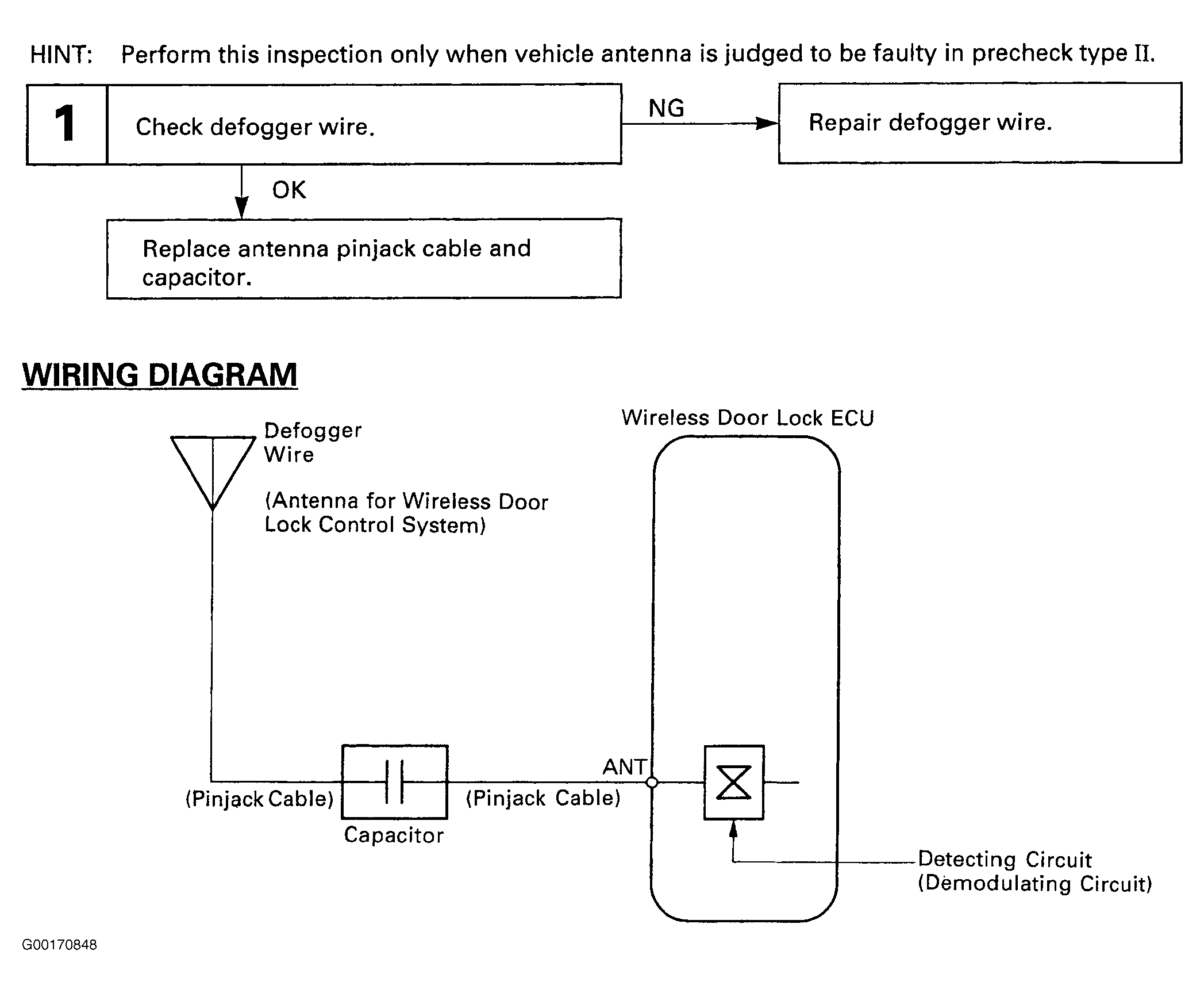

The antenna circuit receives the electromagnetic wave emitted by the transmitter and sends it to the wireless door lock ECU.
