Test 11: Door Unlock Detection Switch Circuit

The door unlock detection switch is built in the door lock motor assembly. This switch is on when the door lock knob is in the unlock position and off when the lock knob is in the lock position. The ECU detects the door lock knob conditions in this circuit. It is used as one of the operating conditions for the key confinement prevention function.

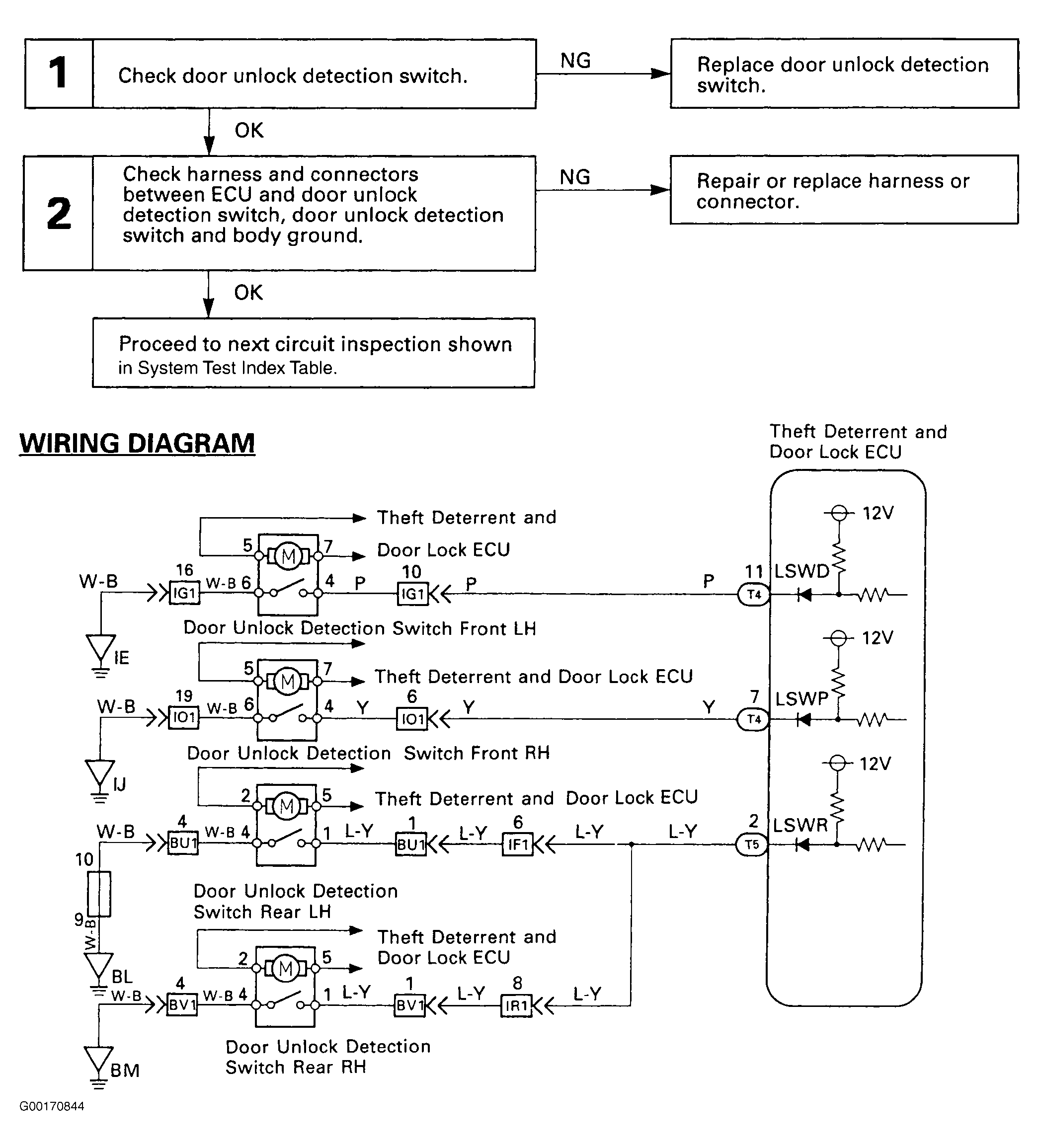

Fig 1: Test 11: Door Unlock Detection Switch Circuit Test (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

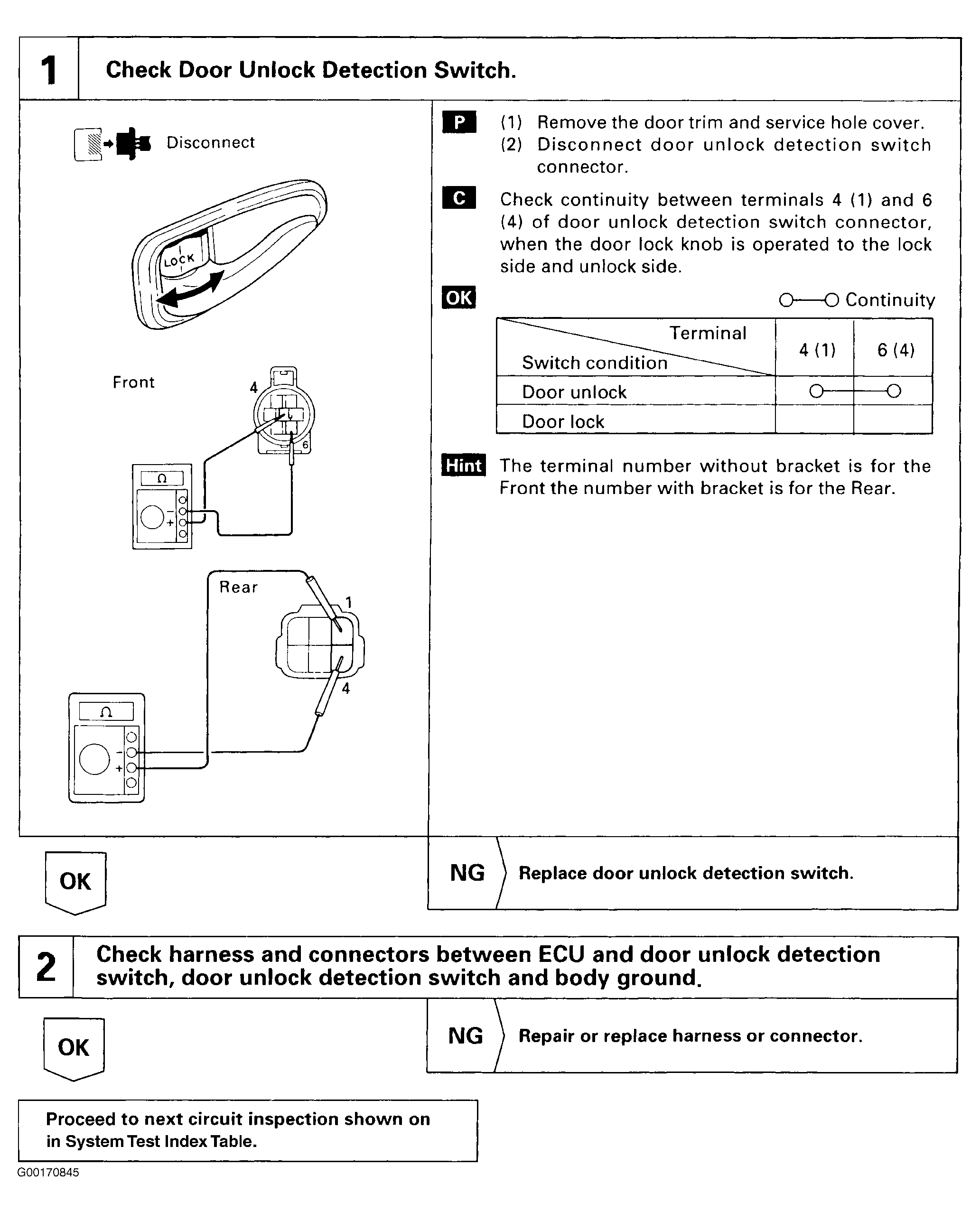

Fig 2: Test 11: Door Unlock Detection Switch Circuit Test (2 Of 2)
