Test 1: Indicator Light Circuit

When the theft deterrent system is preparing to set, this circuit lights up the indicator light. When the system has been set, it continually turns the indicator light on for 1 second and turns it off for 1 second, thus blinking the indicator light.

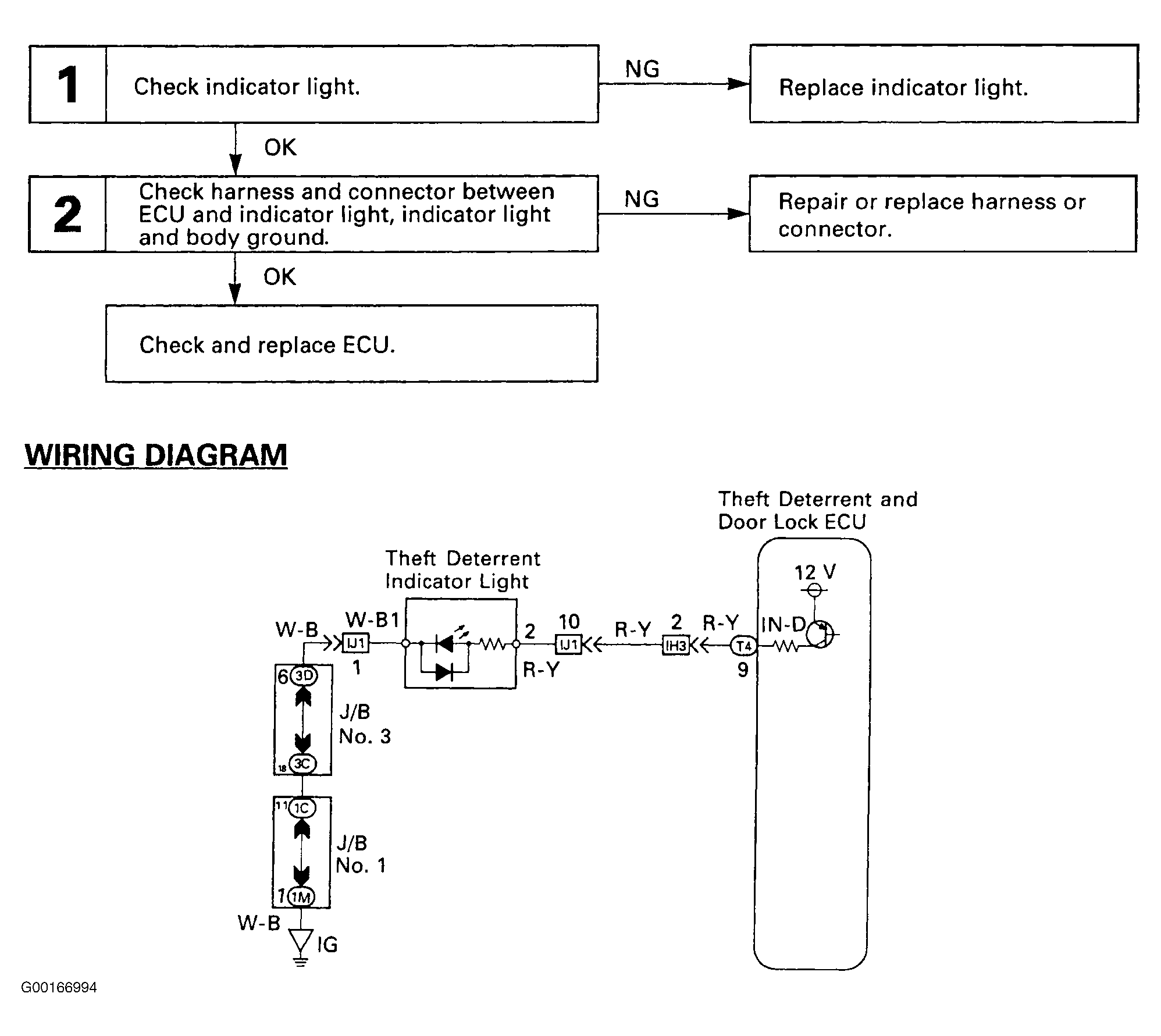

Fig 1: Test 1: Indicator Light Circuit Test (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

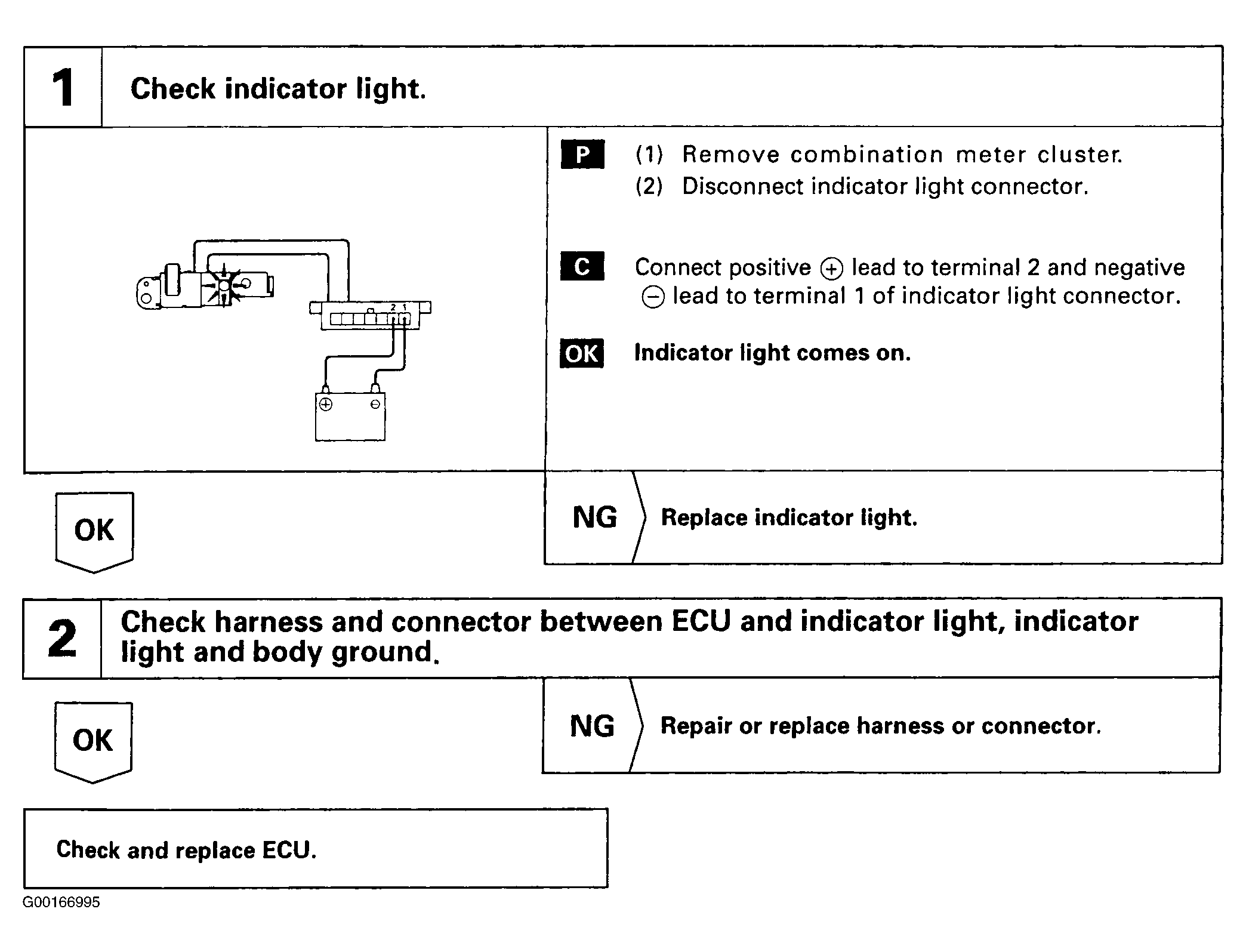

Fig 2: Test 1: Indicator Light Circuit Test (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
