Component Tests: Transmitter

NOTE: Perform this inspection only when transmitter is judged to be faulty in PRECHECK TYPE II: SYSTEM FAILS TO OPERATE ANYWHERE  under TROUBLE SHOOTING.

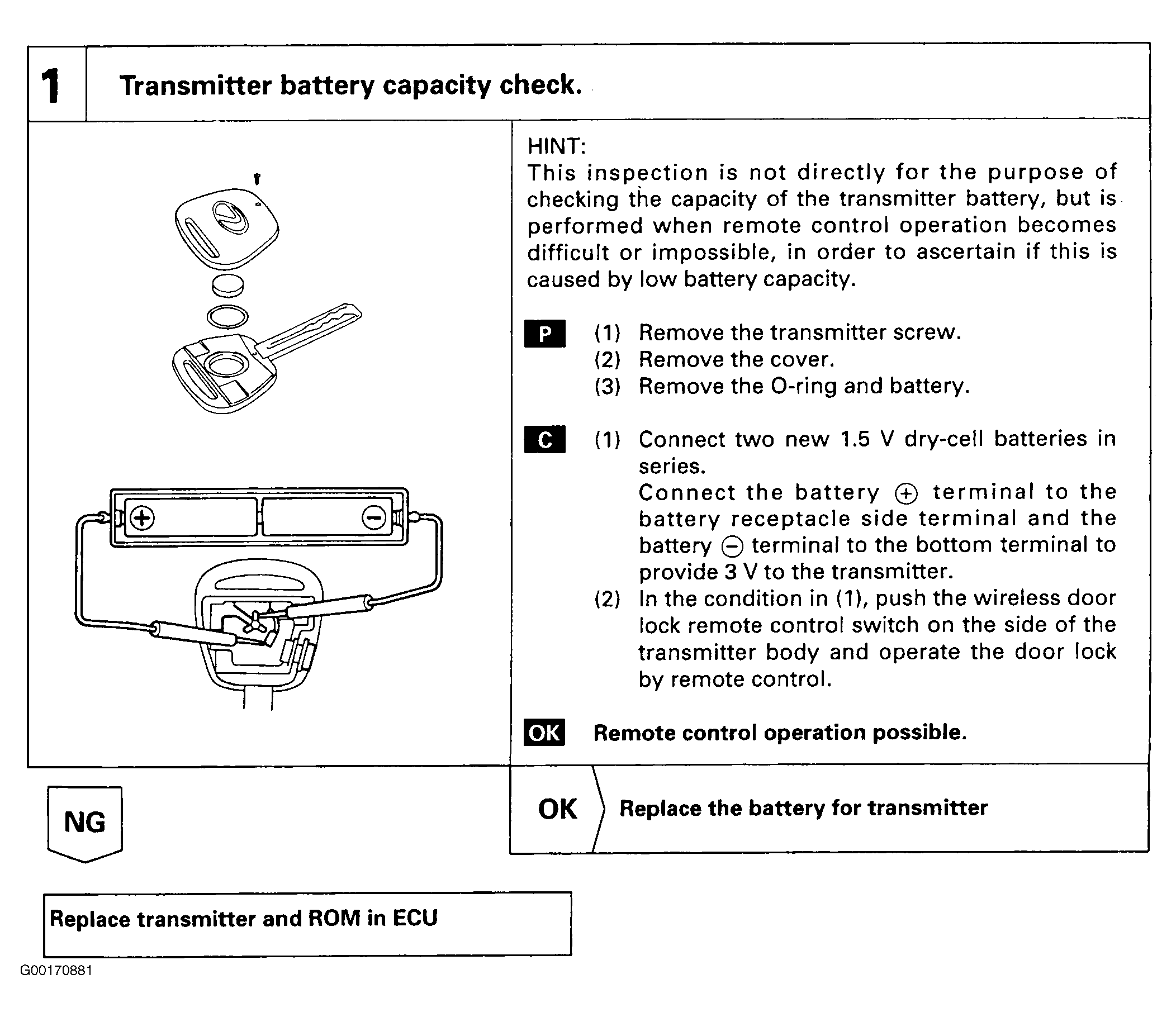

Fig 1: Transmitter Battery Capacity Check
G00170881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
