ES250 Rear Suspension

  1. Ensure rear camber is correctly set. See CAMBER ADJUSTMENT  under WHEEL ALIGNMENT PROCEDURES. Bounce both ends of vehicle several times to settle suspension. Measure distance between each wheel rim and corner of cam bracket to ensure both distances are same. See Fig 1.

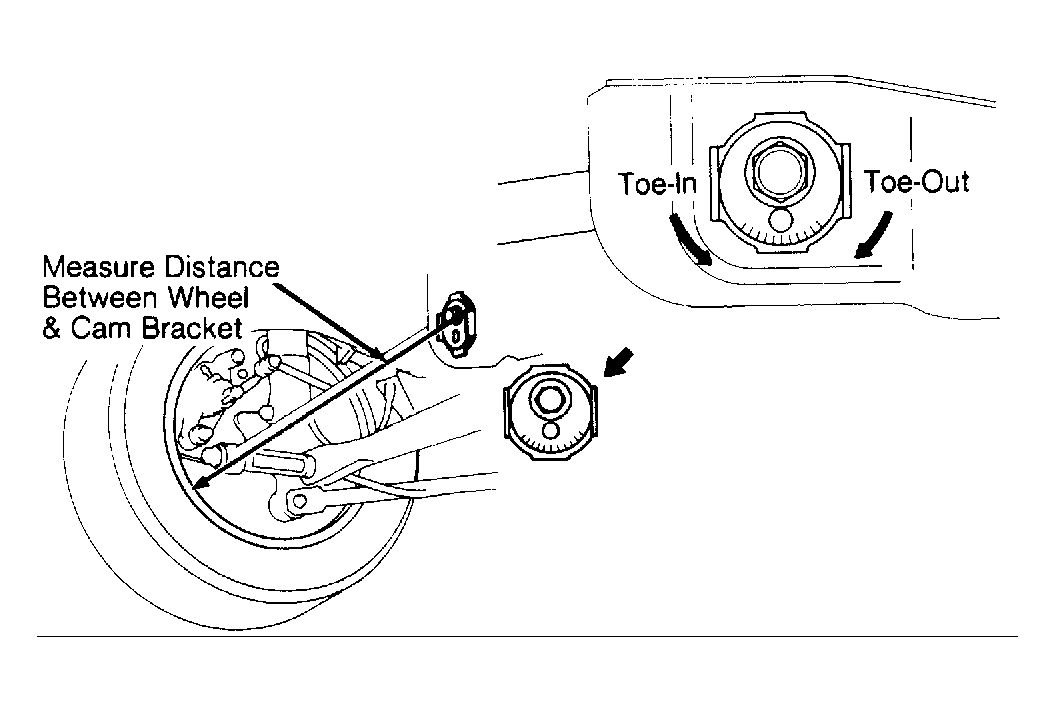

    Fig 1: Rear Toe-In Adjustment Cam (ES250) Courtesy of Toyota Motor Sales, U.S.A., Inc.
    G91D02864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Measure toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If necessary, adjust toe-in by turning adjustment cams. See Fig 1. Turning adjustment cam one graduation will change toe by about .06" (1.5 mm).
