Power Seat Switch: Continuity

  1. Inspect the switch continuity between terminals. See Fig 1.
  2. If continuity is not as specified, replace the power seat switch.

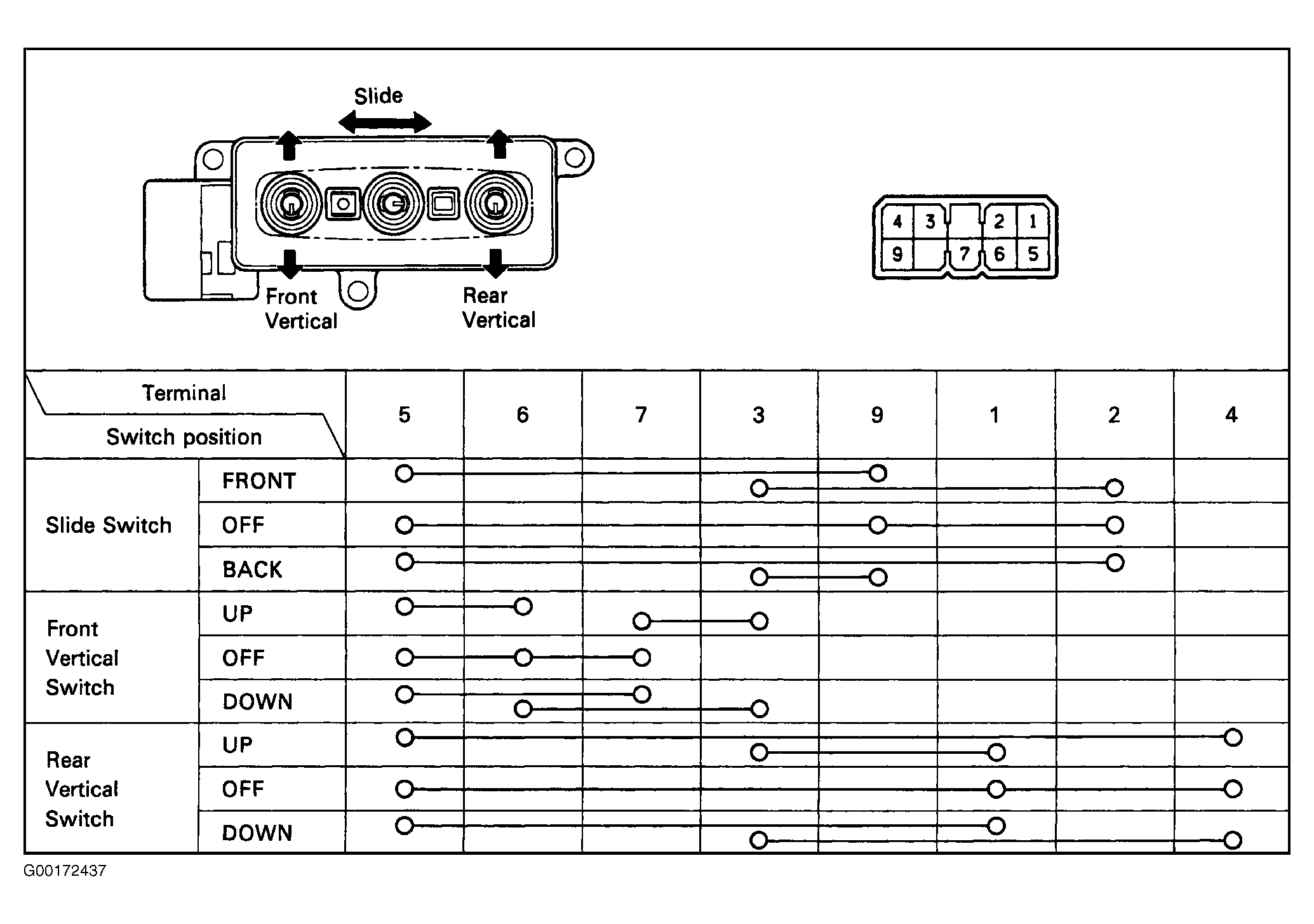

Fig 1: Testing Power Seat Switch Continuity
G00172437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
