Neutral Start Switch Adjust

If vehicle starts in positions other than Neutral and Park, neutral start switch may need adjusting. To adjust, loosen neutral start switch bolt and set shift lever in Neutral position. Align groove and base line on neutral start switch. See Fig 1. Hold switch in position and torque bolt to 48 INCH lbs. (5.4 N.m).

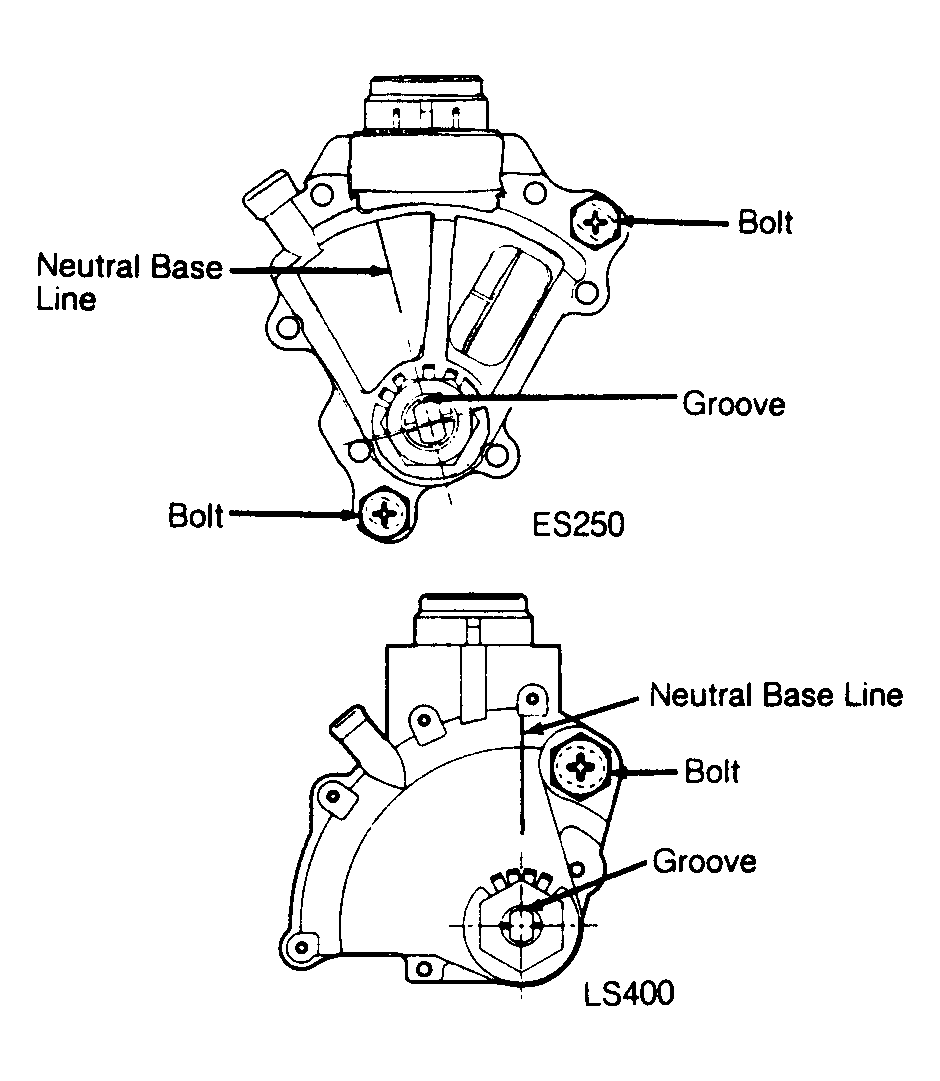

Fig 1: Adjusting Neutral Start Switch
G91C01147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
