Cooling Fan: Disassembly

  1. Remove the four bolts and cover
  2. Remove the nut and fan. See Fig 2.
  3. Disconnect the connector from the bracket. Remove the three screws and fan motor.

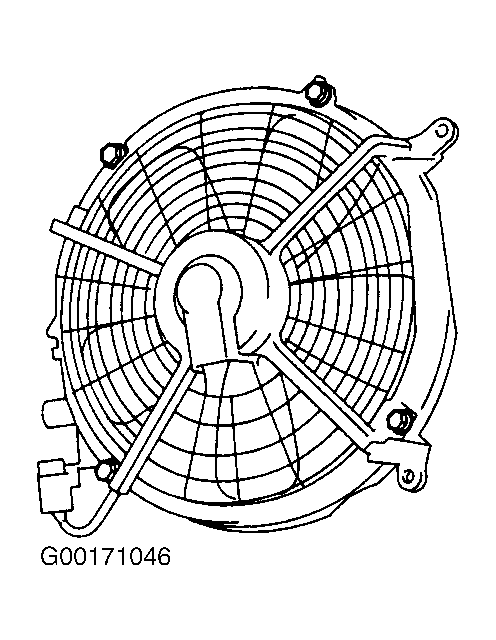

Fig 1: Removing Fan Cover
G00171046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Removing Fan Nut
G00171047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Locating Fan Motor
G00171048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
