Chart 5: Speedometer Does Not Operate While Driving

NOTE: While doing the following inspection, make certain that the connectors and terminals are properly connected.

For test procedures, see Fig 1.For connector identification, see CONNECTOR IDENTIFICATION .

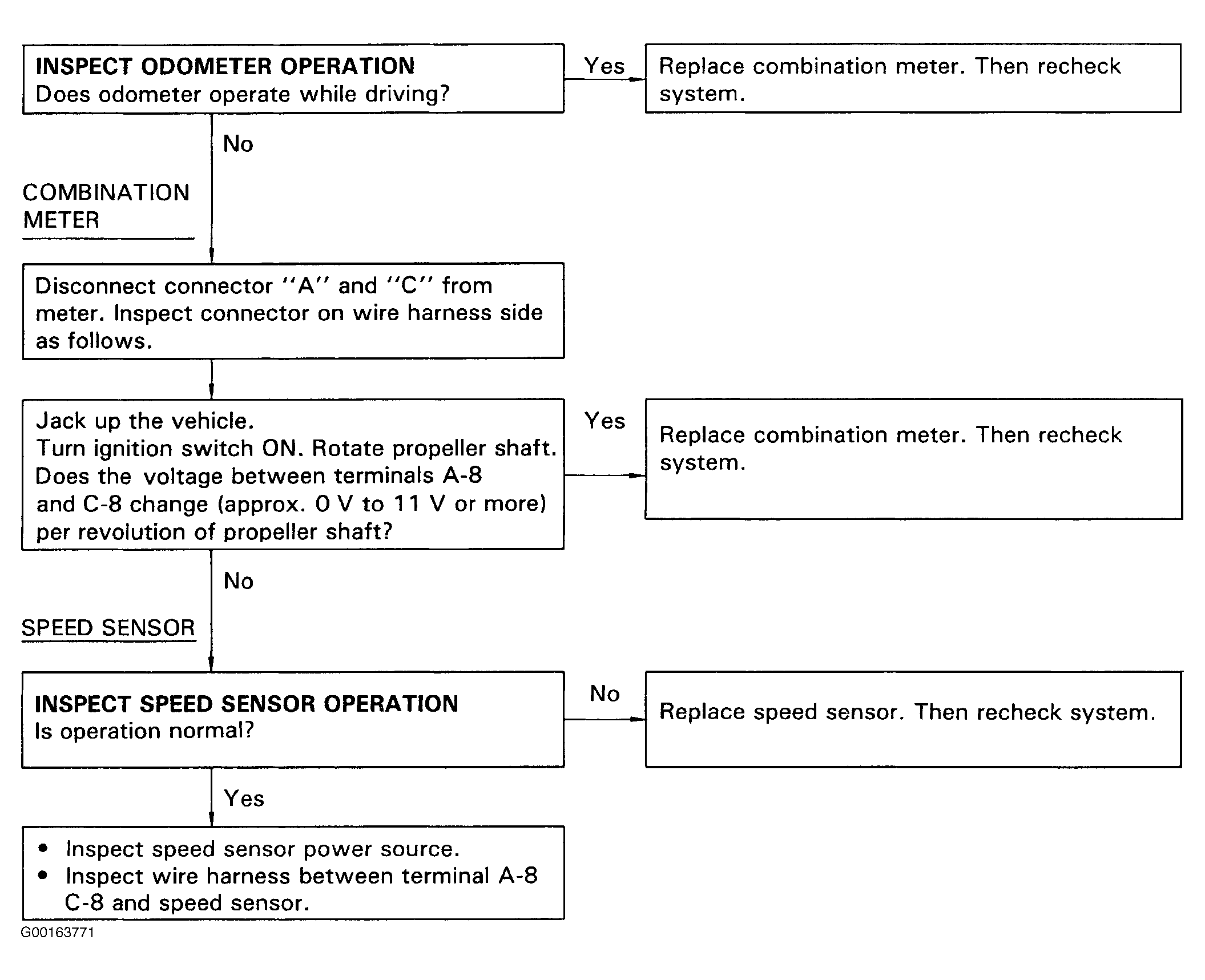

Fig 1: Chart 5: Speedometer Does Not Operate While Driving
G00163771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
