Warning Light Assembly

Disconnect the connector from warning light assembly and inspect the connector on the wire harness side. See Fig 1 and Fig 2 . If not as specified, inspect the circuits connected to other parts.

Fig 1: Identifying Warning Light Assembly ConnectorTerminals
G00162289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

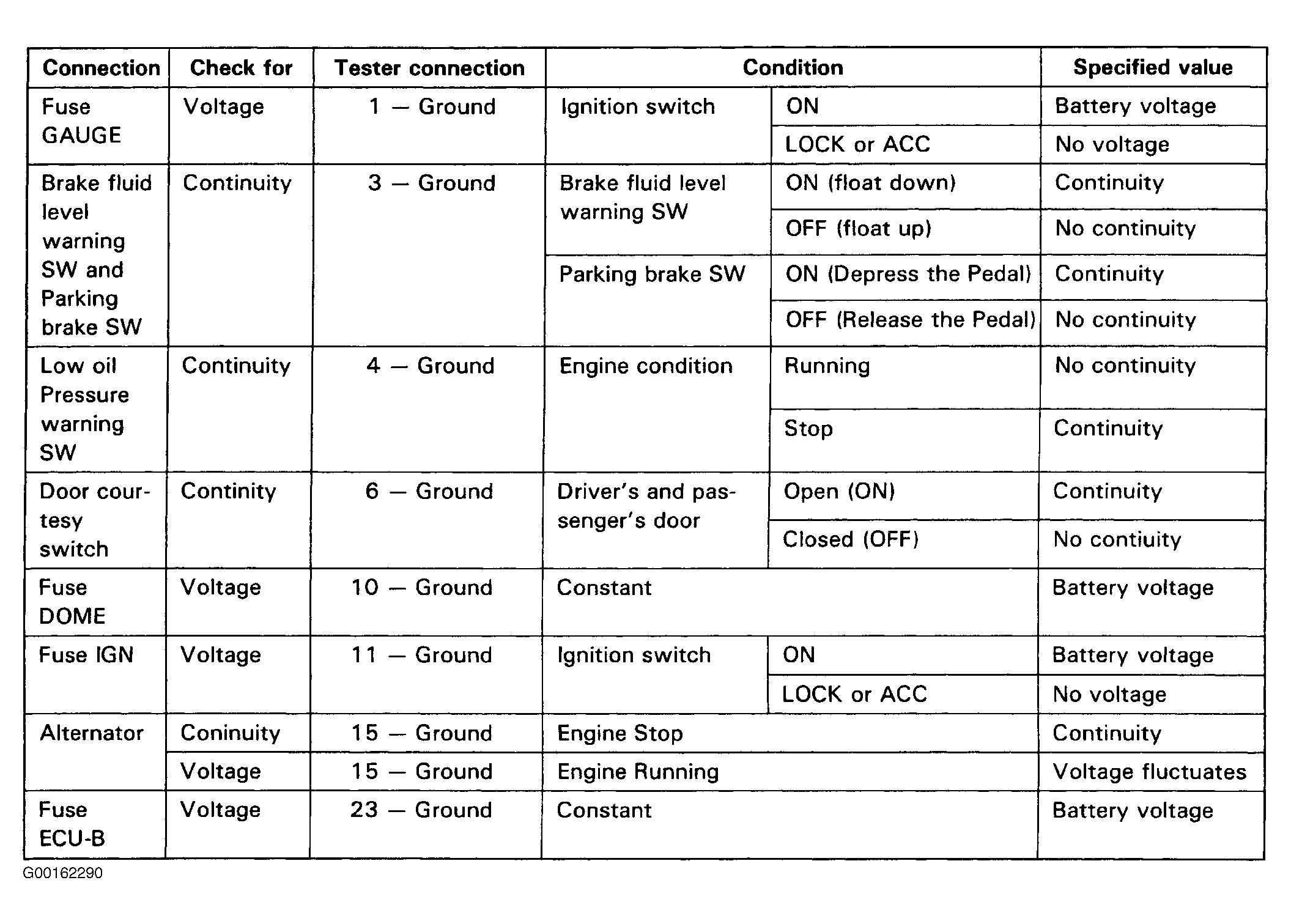

Fig 2: Identifying Warning Light Assembly Circuit Specifications
G00162290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
