Light Failure Sensor Relay Circuit

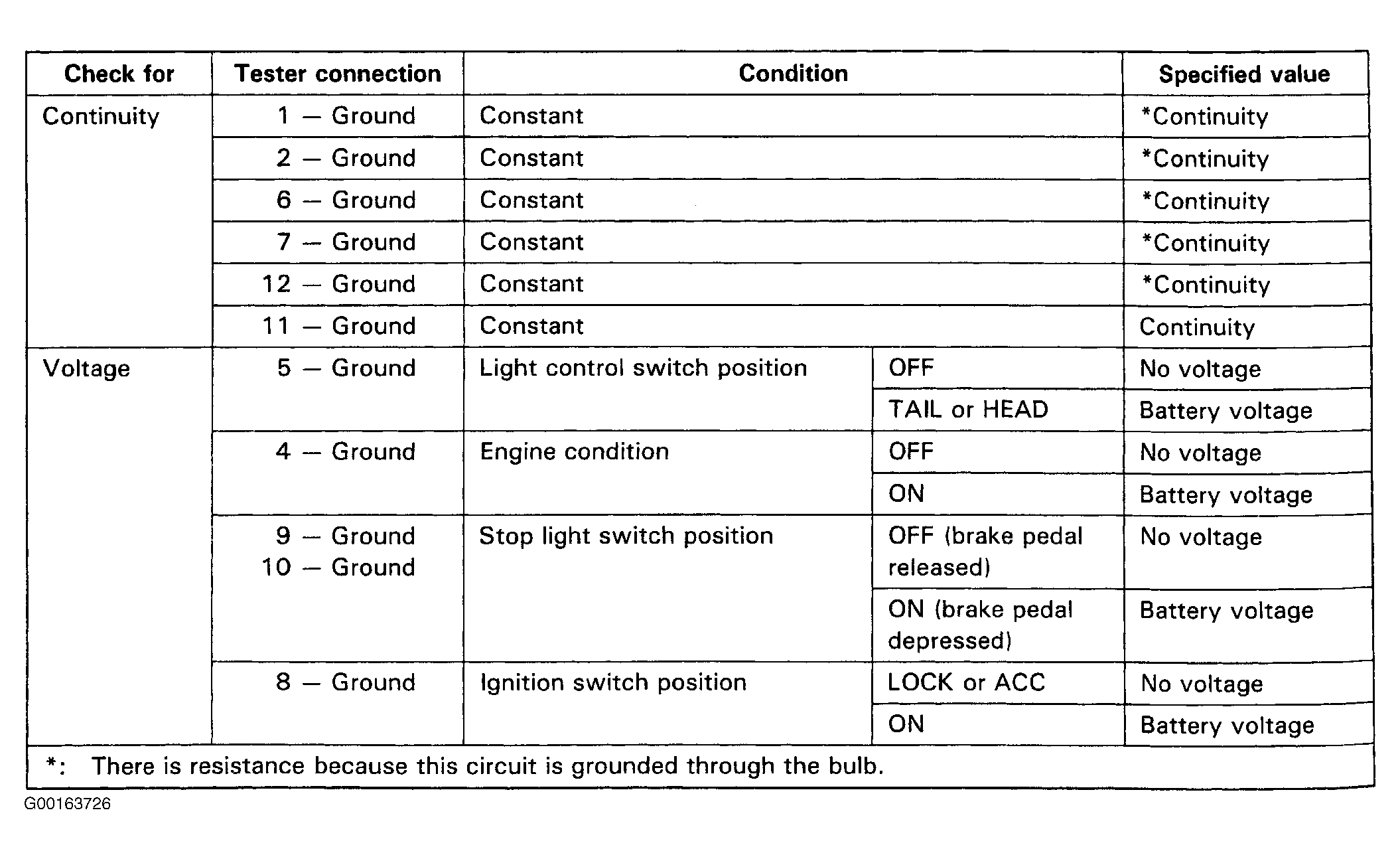

Disconnect the connector from the sensor in the trunk. See Figure. Inspect the connector on the wire harness. See Fig 1 and Fig 2 . If circuit is as specified, replace the sensor. If the circuit is not as specified, see WIRING DIAGRAMS and inspect the circuits connected to other parts.
