Courtesy Switch

Disconnect the connector from the switch and inspect the connector on the wire harness side. See Fig 1 and Fig 2 .

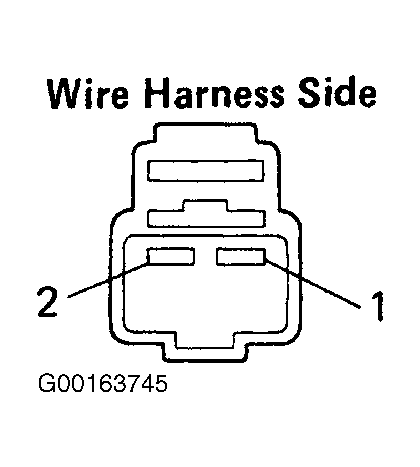

Fig 1: Identifying Courtesy Switch ConnectorTerminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

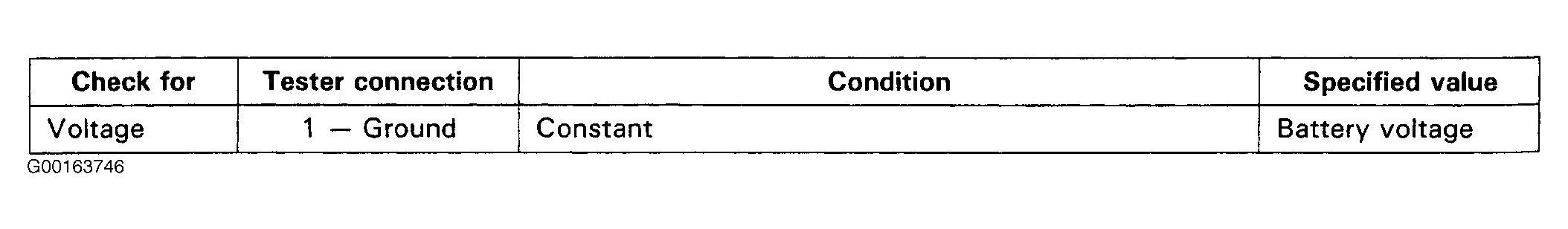

Fig 2: Identifying Courtesy Switch Circuit Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
