Power Mirror Control System With Memory System

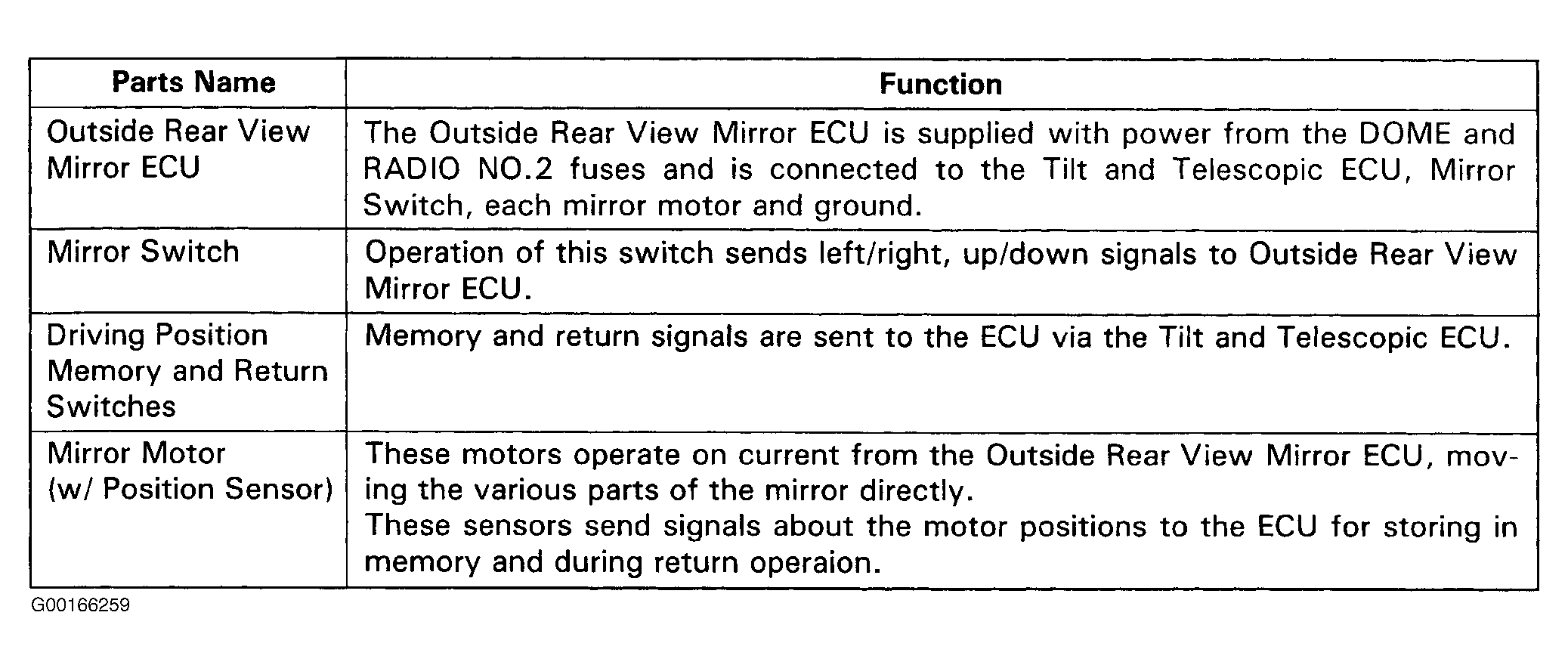

The power mirror control system carries out mirror left/right and up/down adjustments electrically when the mirror switch is operated. In addition, operation of the Driving Position Memory and Return Switches makes it possible to store the adjusted position in memory and reproduce each adjustment when desired. For component parts and their functions, see Fig 1.
