Wiring Diagrams — 1990 Lexus ES 250 Standard Service Manual ~ LEMON Manuals

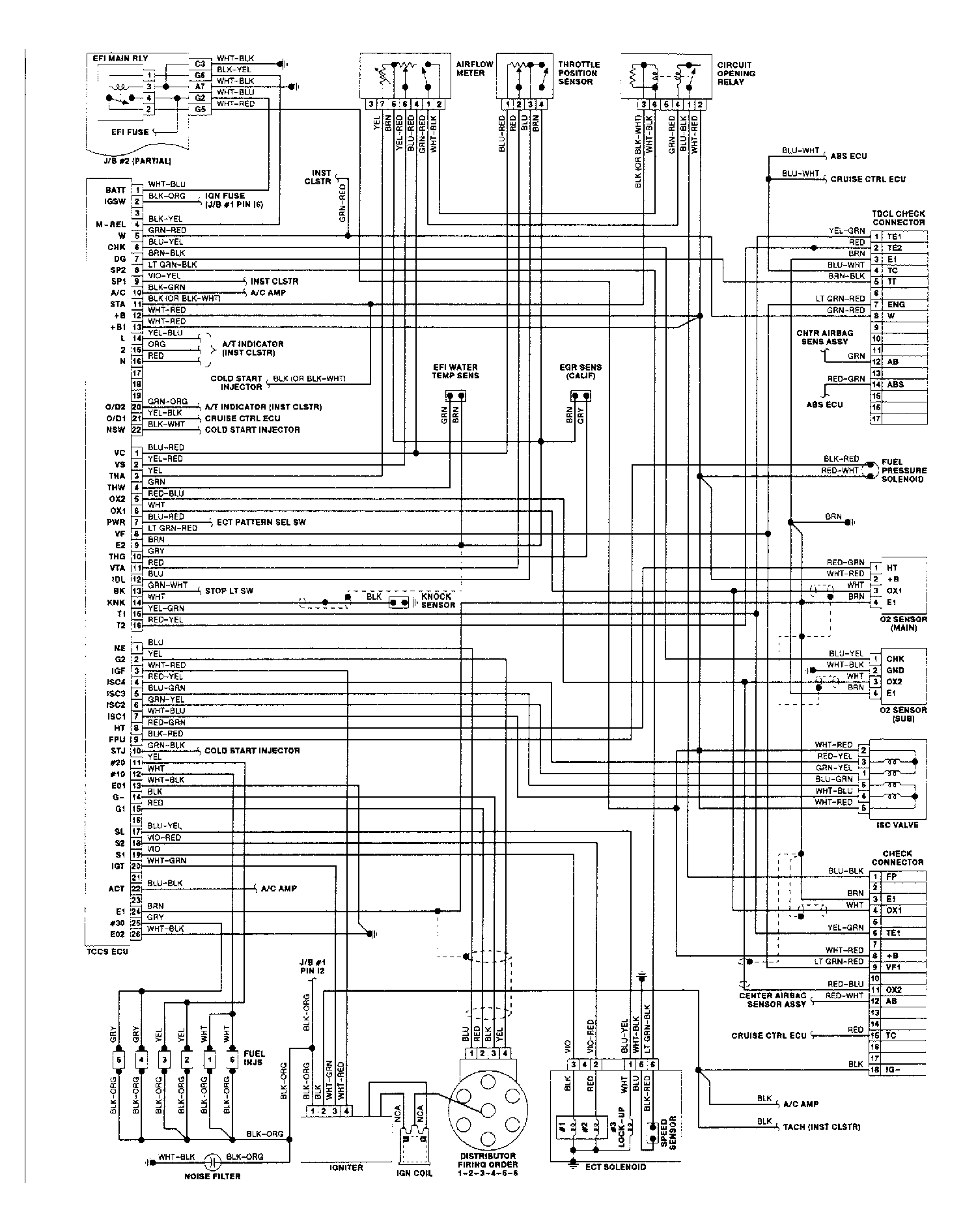

Fig 1: 1990 ES250 2.5L Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

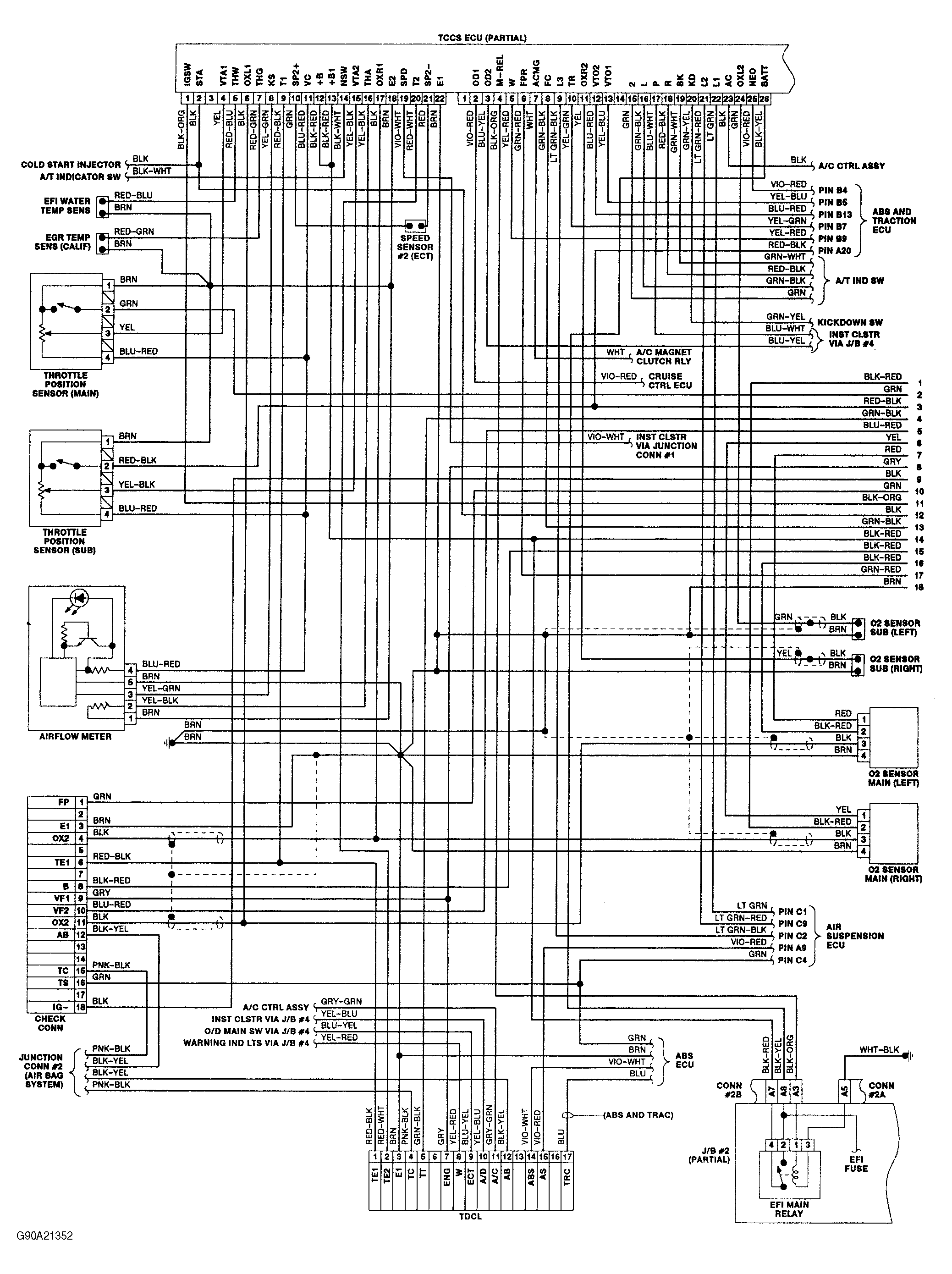

Fig 2: 1990 LS400 4.0L Wiring Diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

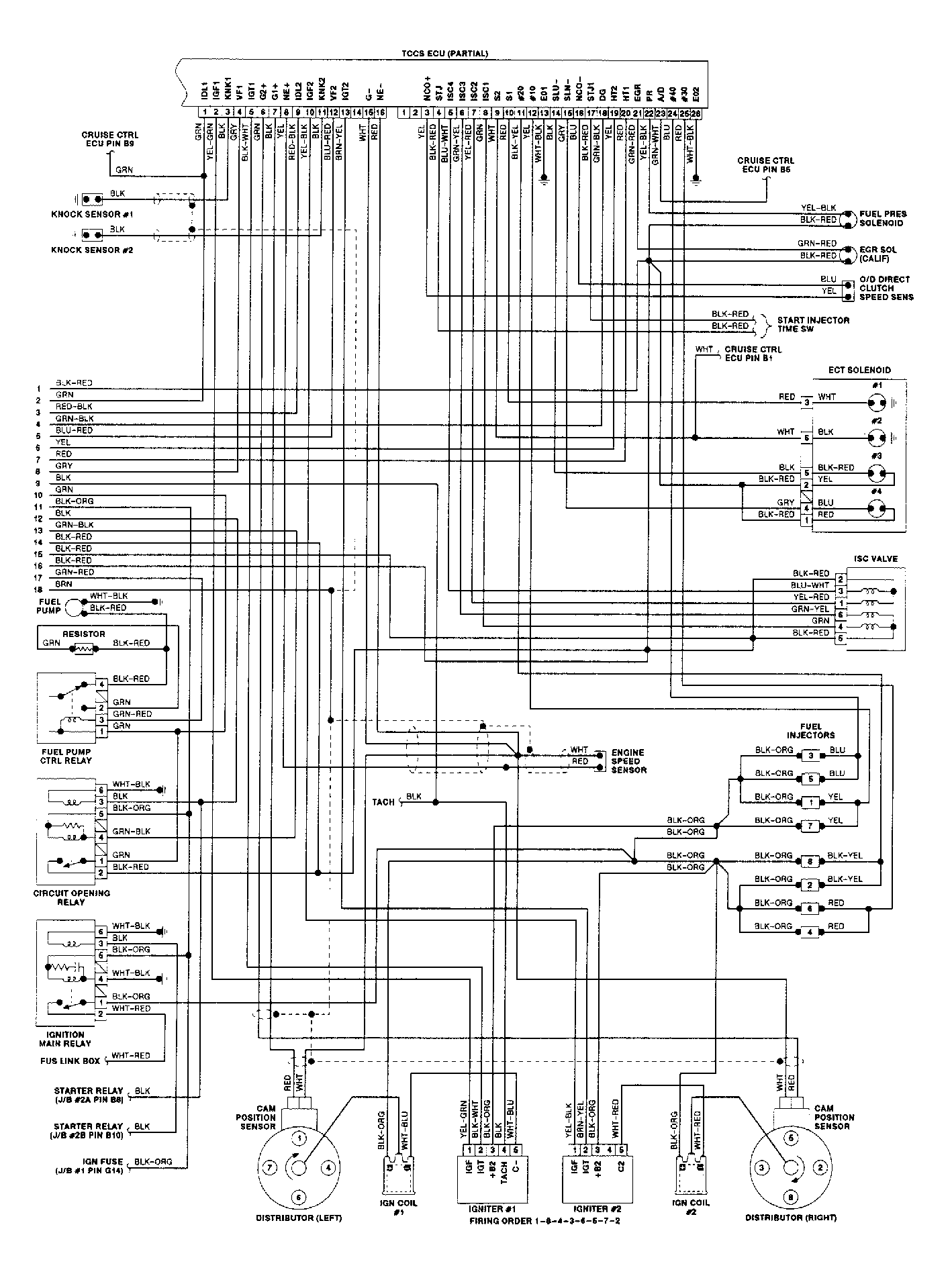

Fig 3: 1990 LS400 4.0L Wiring Diagram (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

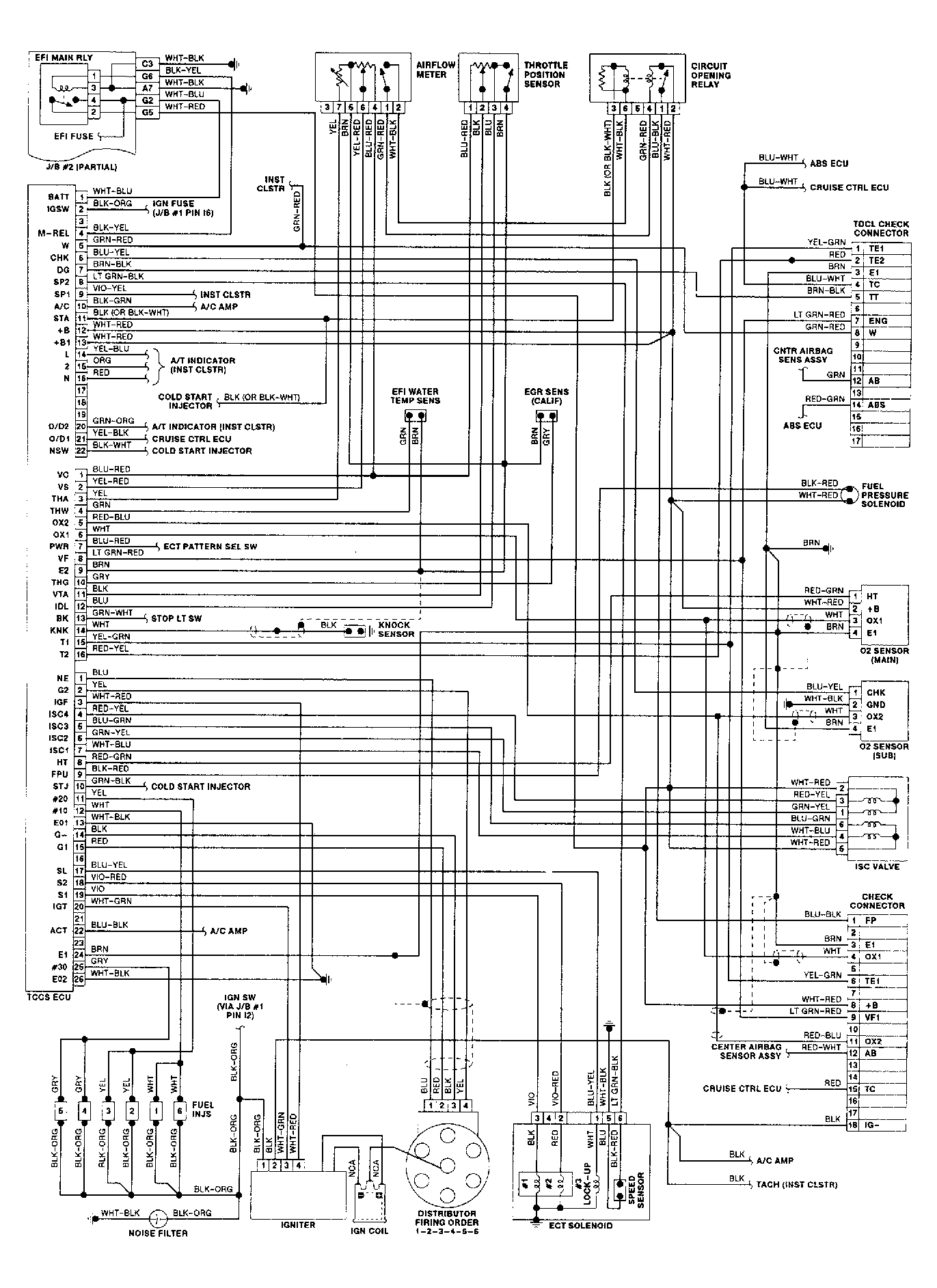

Fig 4: 1991 ES250 Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

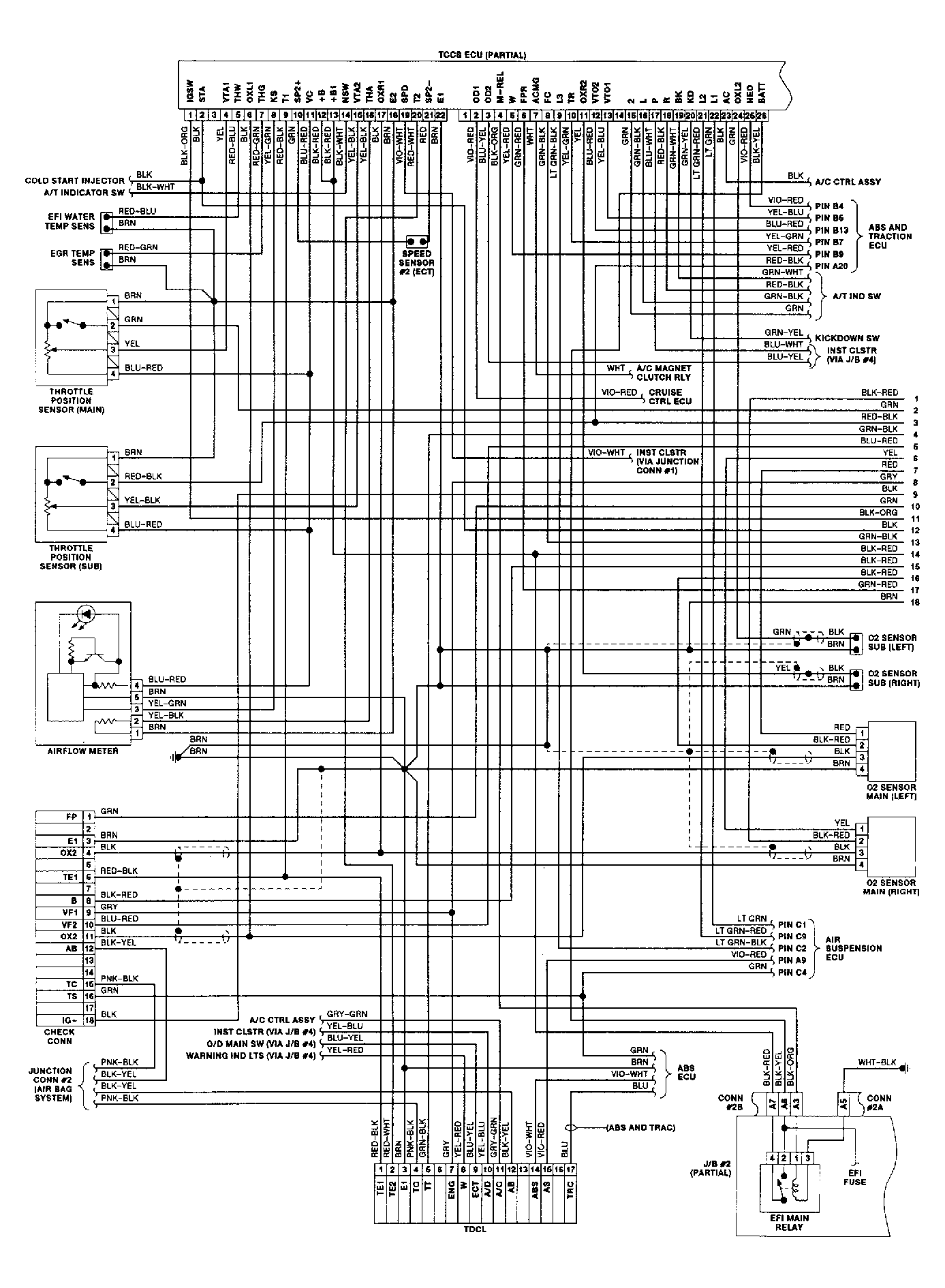

Fig 5: 1991 LS400 Wiring Diagram (1 of 2)

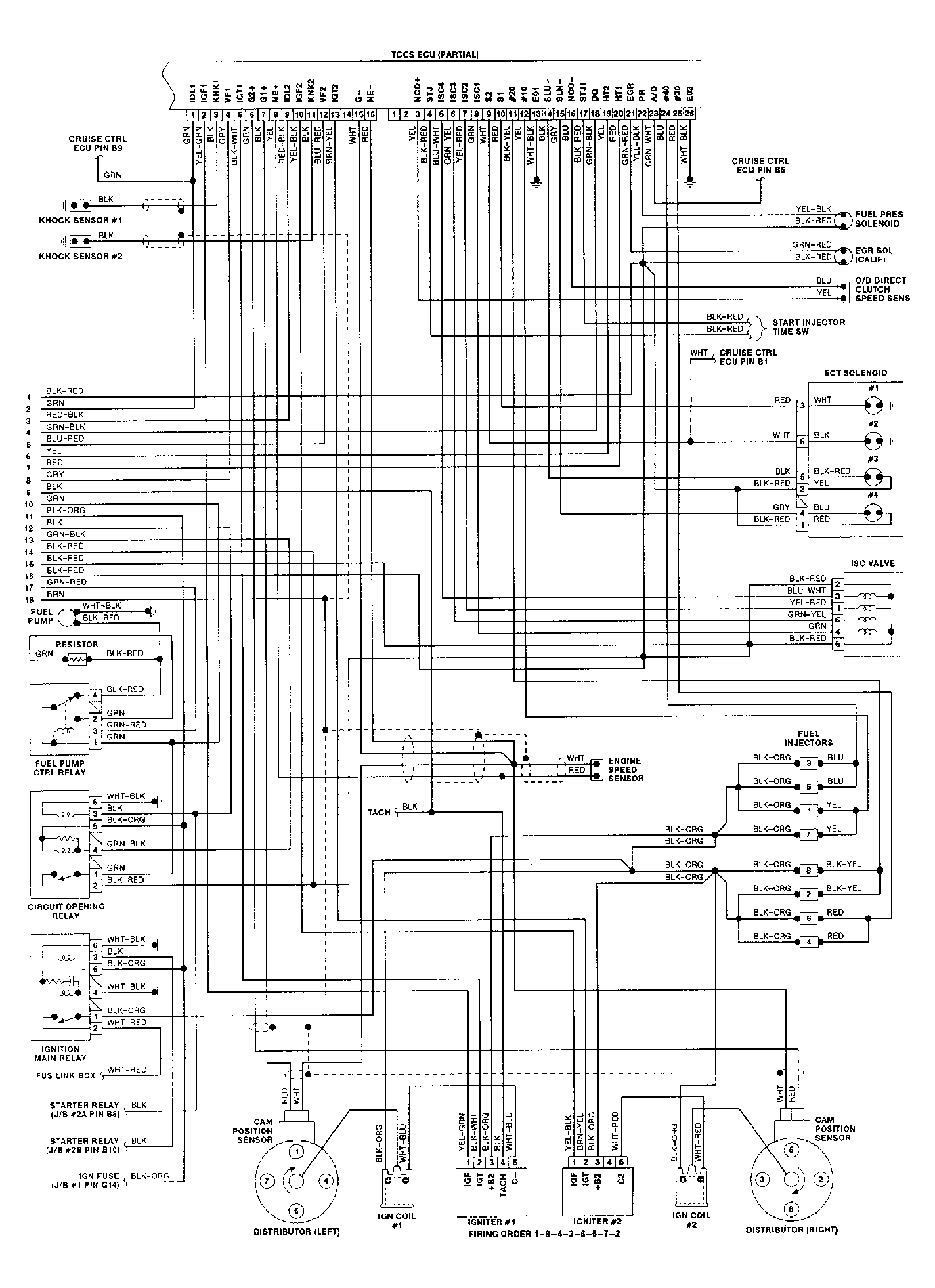

Fig 6: 1991 LS400 Wiring Diagram (2 of 2)
