Anti-Lock Brake System: Wiring Diagram

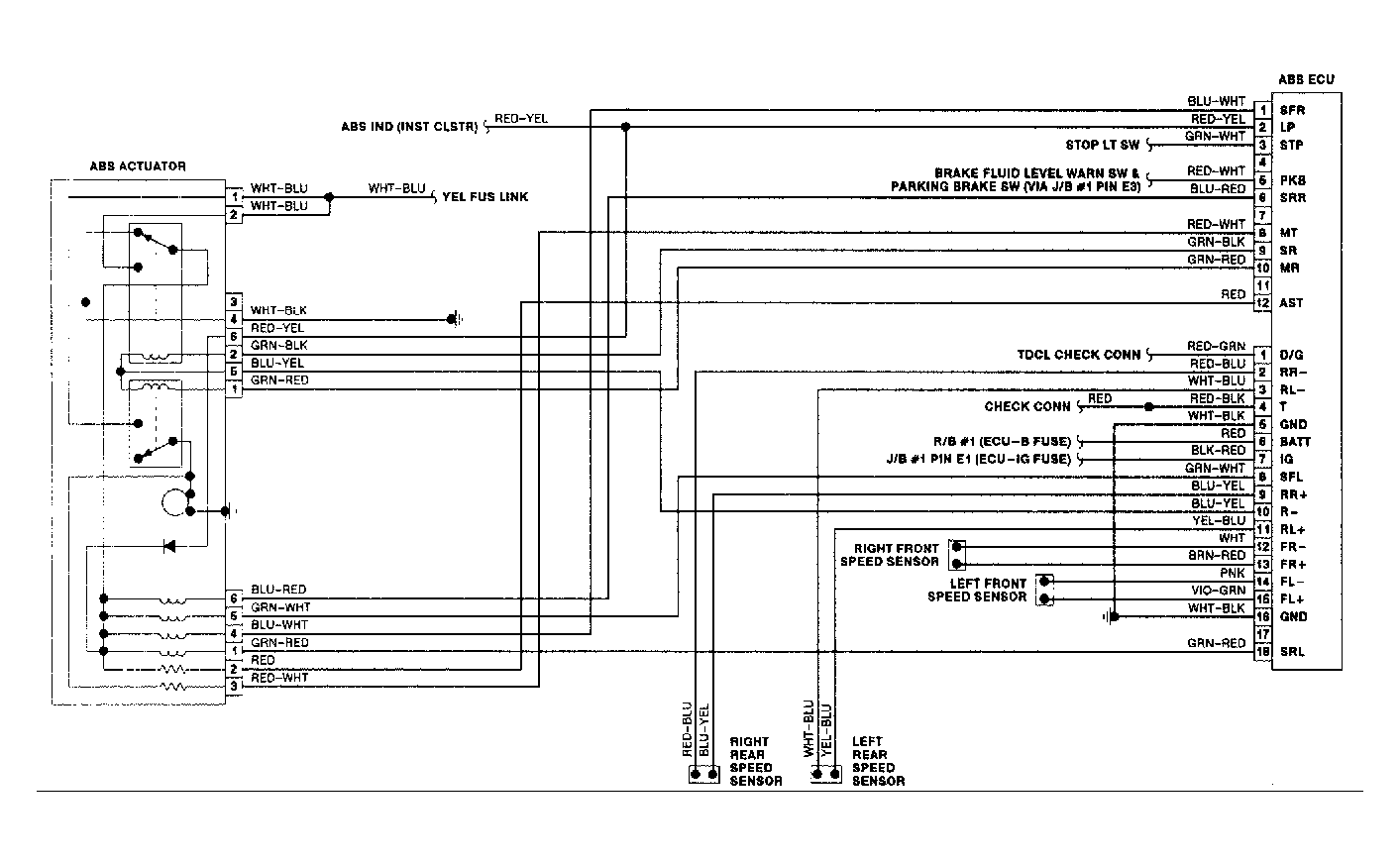

Fig 1: Anti-Lock Brake System Wiring Diagram

G91I03781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
