Component Locations

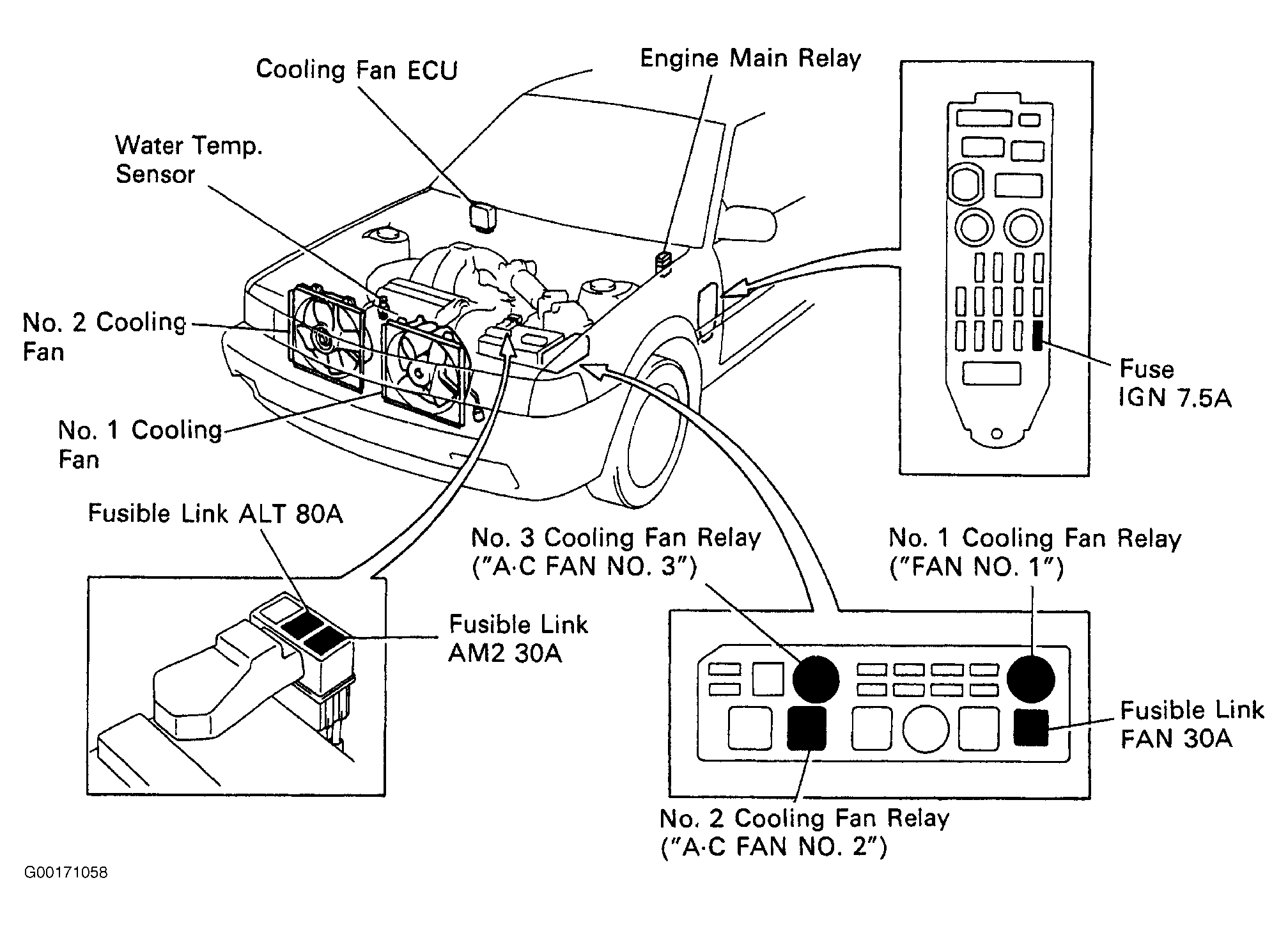

Fig 1: Locating Electronic Cooling Fan Components
G00171058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
