Transfer Case - Vehicles With: Twin Speed Transfer Case (G1509698): Installation: Part(S)

STEP	PART NAME	QUANTITY
Step 10	Front driveshaft to transfer case bolt(s)	6

CAUTION:

New transfer cases may be supplied with untapped bolt holes, reuse the original bolts when self tapping the new threads.
Re-manufactured transfer cases have tapped holes, bolts must be installed finger tight before applying Torque.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Component shown removed for clarity.

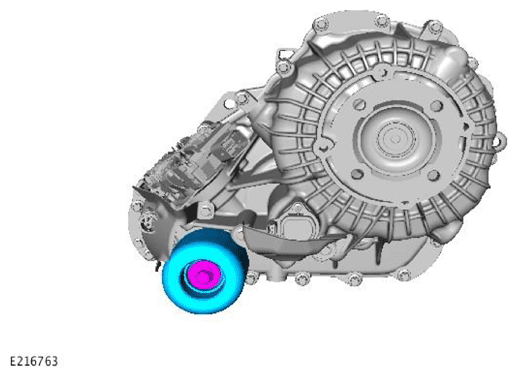

CAUTION: Oil seals must be installed dry.
NOTE:
- This step is only required if previously removed.
- Make sure that this component is installed to the noted removal position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

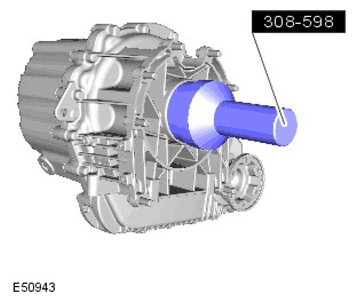

Special Tool(s): 308-598
NOTE: This step is only required if previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

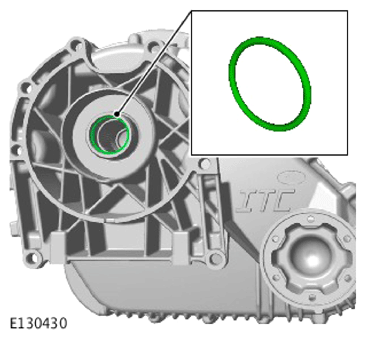

Install a new O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Clean the component mating faces.
- Lubricate input shaft splines with 'Weicon TL7391' grease.

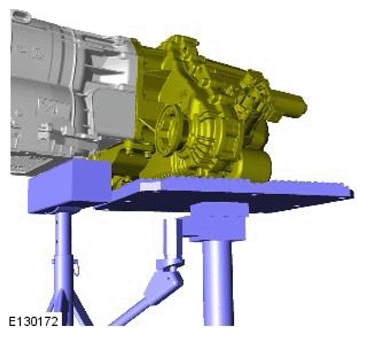

- General Equipment: Powertrain Jack
  General Equipment: Vehicle/axle stands

  General Equipment: Wooden Block
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

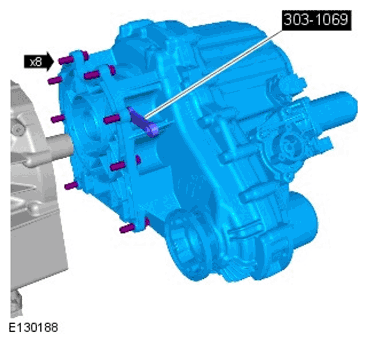

- Special Tool(s): 303-1069
- Install the transfer case.
  Torque : 45Nm
CAUTION: Air tools must not be used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the transfer case damper.

Torque : 75Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

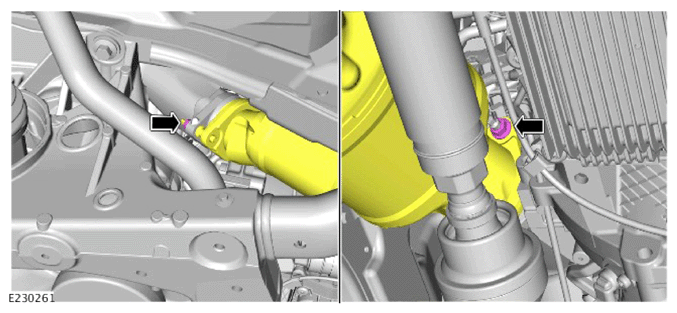

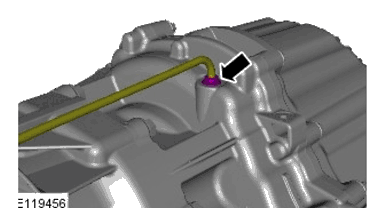

Install the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

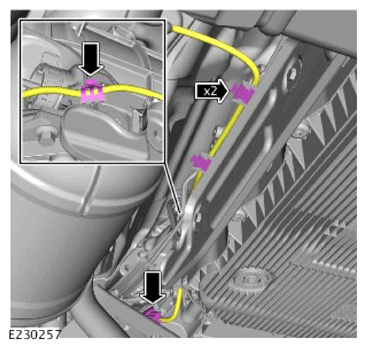

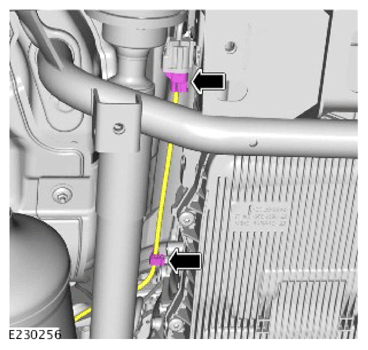

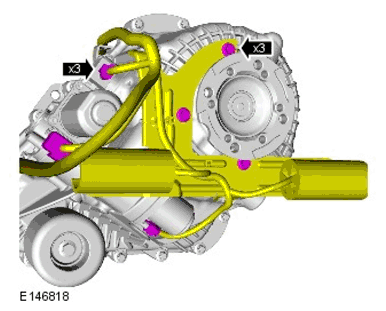

Install the wiring harness.
CAUTION: Air tools must not be used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
CAUTION: Air tools must not be used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

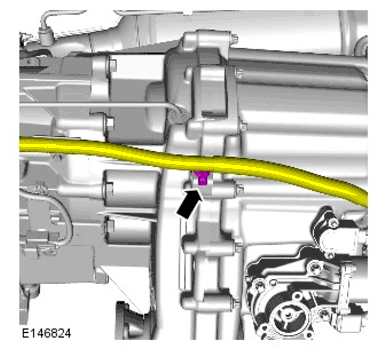

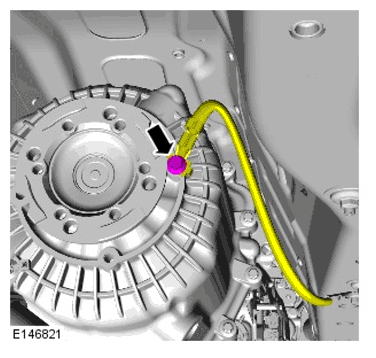

Install the ground cable.

Torque : 25Nm
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

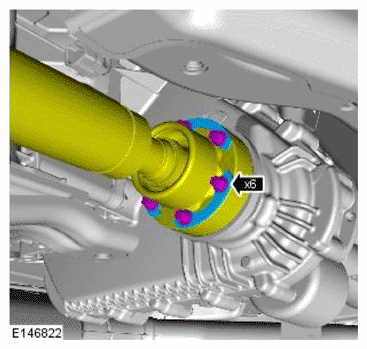

Install the driveshaft.

Renew Part: Front driveshaft to transfer case bolt(s) Quantity: 6 .

Torque

Stage 1: 45Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm
Refer to: REAR DRIVESHAFT - INGENIUM I6 3.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Air tools must not be used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 60Nm
Refer to: TRANSMISSION SUPPORT CROSSMEMBER - V8 S/C 5.0L PETROL .
NOTE: Do not perform this step if the component removed for access only.

Refer to: TRANSFER CASE DRAINING AND FILLING .
Connect the battery ground cable.
Refer to: SPECIFICATIONS .
NOTE: Do not perform this step if the component removed for access only.
1. Connect the Land Rover approved diagnostic equipment.
2. Start the diagnostic service function transfer case-transfer case replacement.
3. Clear any Diagnostic Trouble Codes (DTCs) after calibration and check for correct operation.
