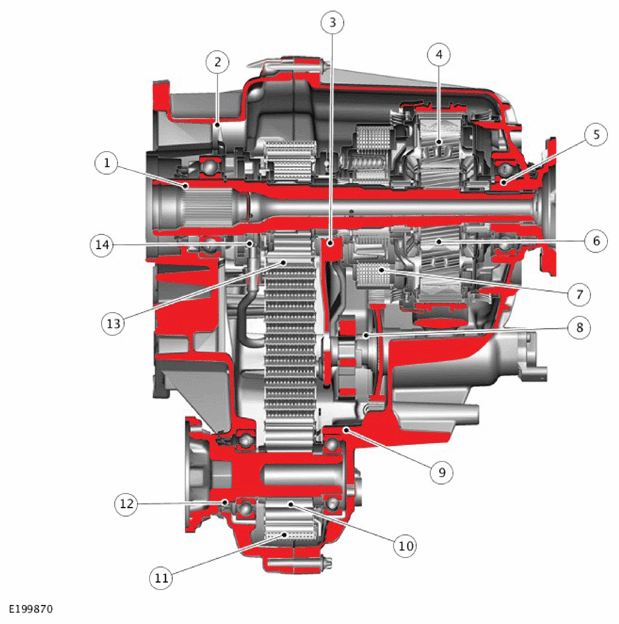

Transfer Case - Sectional View
| ITEM | DESCRIPTION |
|---|---|
| 1 | Input shaft |
| 2 | Front housing assembly |
| 3 | Clutch lever |
| 4 | Planetary gear set |
| 5 | Rear output flange |
| 6 | Center differential assembly |
| 7 | Multiplate clutch |
| 8 | Actuation shaft |
| 9 | Rear housing assembly |
| 10 | Front output sprocket |
| 11 | Chain drive |
| 12 | Front output flange |
