Transmission To Power Transfer Unit Connecting Sleeve Seal (G1727534): Installation

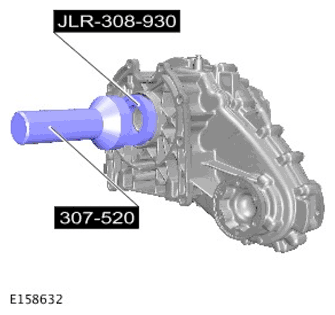

  1. G11599887Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 307-520  , JLR-308-930

  2. Install the transfer case.

    Refer to: TRANSFER CASE - Vehicles With: Twin Speed Transfer Case .

  3. Connect the battery ground cable.

    Refer to: SPECIFICATIONS .
