Transfer Case Differential (G1614710): Installation

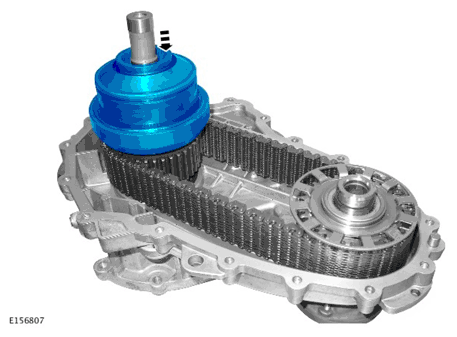

  1. G11600021Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

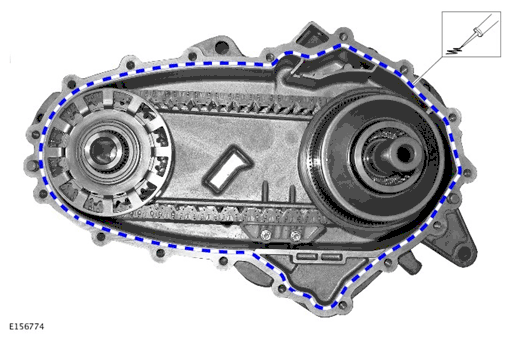

  2. G11600022Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply a 2 mm bead of sealant to one surface of the transfer case mating face, as shown.

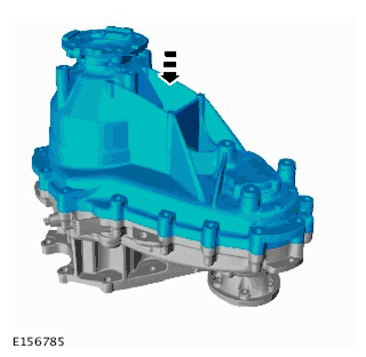

  3. G11600023Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

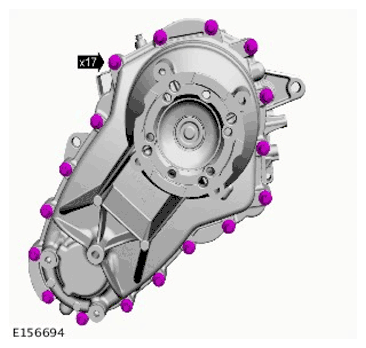

  4. CAUTION: Only tighten the bolts finger-tight at this stage.
    G11600004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

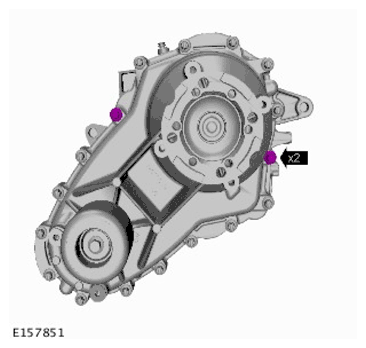

  5. G11600025Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm

  6. G11600004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 35Nm

  7. Refer to: TRANSFER CASE - INGENIUM I4 2.0L PETROL .

    Refer to: TRANSFER CASE - V8 S/C 5.0L PETROL .

  8. Refer to: TRANSFER CASE DRAINING AND FILLING .
  9. Connect the battery ground cable.

    Refer to: SPECIFICATIONS .
