Transfer Case Draining And Filling (G1606373): Draining

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Position a container to collect the fluid.
  3. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Remove and discard the sealing washer.

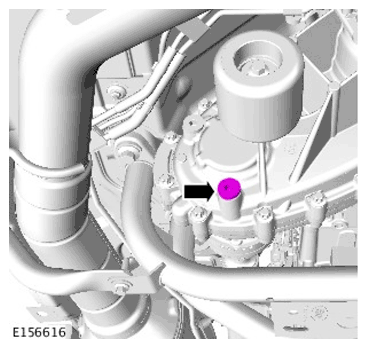

    G11599995Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. Allow the fluid to drain.
  5. NOTE:
    • Make sure that all the component mating faces are clean.
    • Install a new sealing washer.
    G11599995Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Transfer case drain plug washer Quantity: 1  .

    Torque  : 28Nm
