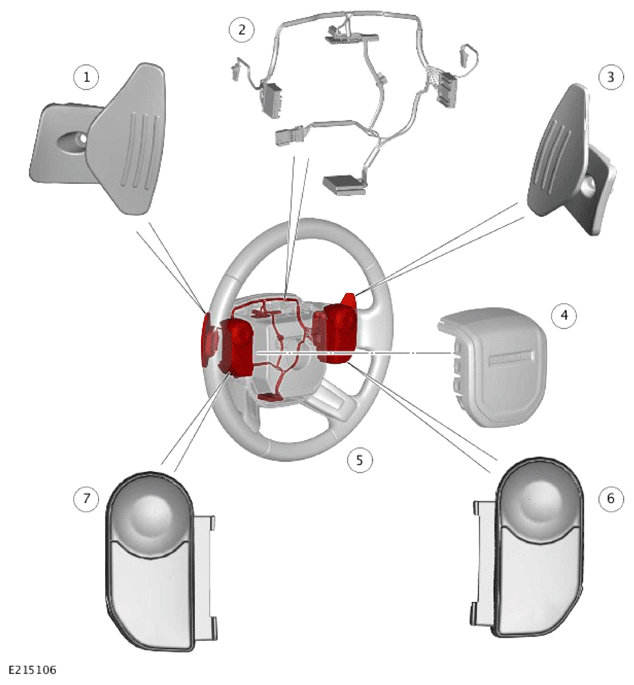

Steering Wheel
| Item | Description |
|---|---|
| 1 | Paddle switch - Downshift |
| 2 | Steering wheel wiring harness |
| 3 | Paddle switch - Upshift |
| 4 | Driver airbag |
| 5 | Steering wheel |
| 6 | Steering wheel switchpack - Right |
| 7 | Steering wheel switchpack - Left |
The steering wheel is located on the input shaft of the steering column and secured with a screw. The end of the input shaft is marked to indicate the straight ahead position.
The driver airbag is located in the center of the steering wheel. 2 steering wheel switchpacks are located each side of the driver airbag. A wiring harness link connects the steering wheel components to the Clockspring (CLKSPG). Upshift and downshift paddle switches are attached to the steering wheel.
