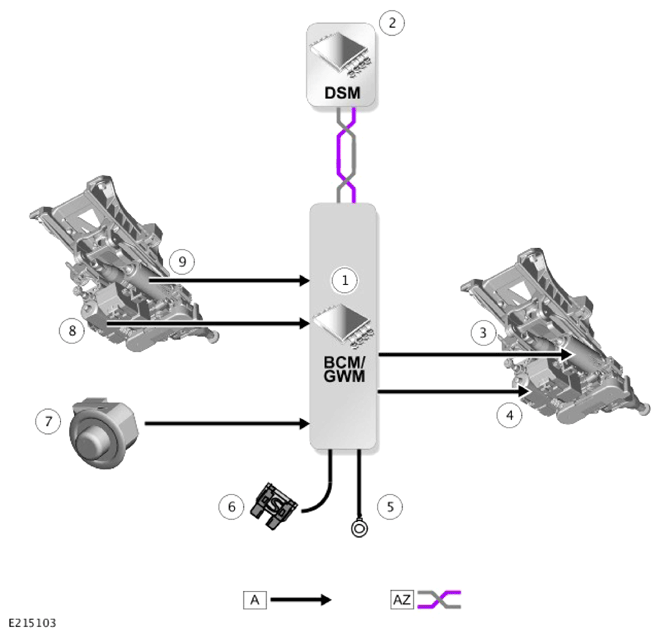

Control Diagram - Steering Column Adjustment
A = HARDWIRED: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.
| Item | Description |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Driver Seat Module (DSM) |
| 3 | Steering column adjustment motor - Tilt |
| 4 | Steering column adjustment motor - Reach |
| 5 | Ground |
| 6 | Power supply |
| 7 | Steering column adjustment switch |
| 8 | Position sensor - Steering column adjustment motor - Reach |
| 9 | Position sensor - Steering column adjustment motor - Tilt |
